点击放大查看

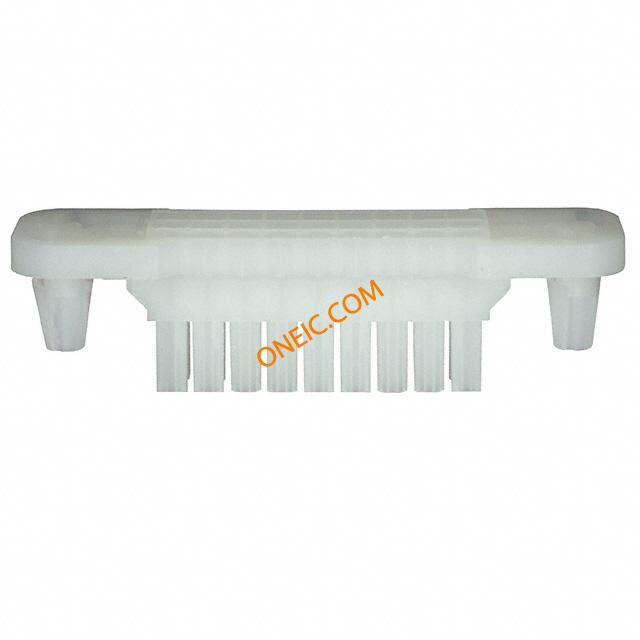

15-06-0180
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 18 POS 4.2mm Crimp ST Panel Mount Bag CONN RECEPT 18POS W/PANEL MOUNT Housing 4.2mm BMI recept,D/R,UL94V-2,18w 4.20mm Pitch Mini-Fit® BMI Receptacle Housing, Dual Row with Panel Mount Ears, PA Polyamide Nylon 6/6, UL 94V-2, 18 Circuits Molex MINI-FIT BMI 系列 2 行 4.2mm 节距 18 路 直 母 面板安装 压接连接器外壳 |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 颜色 | Natural | 深度 | 19.6mm |
| 间距 | 0.165" (4.20mm) | 宽度 | 17.3mm |
| 长度 | 69.6mm | 包装方式 | Bulk |
| 方向 | 直 | 排间距 | 0.165" (4.20mm) |
| 触头类型 | Female Socket | 安装类型 | Panel Mount |
| 连接器类型 | Receptacle | 排数 | 2 |
| 壳体材料 | Nylon | 触点数 | 18 |
| 接触件端接 | Crimp | 位数 | 18 |
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
| 系列 | 42474 | CAD图纸 | 3D CAD Model |
| 基础产品编号 | 42474 | 适用产品/相关产品 | Mini-Fit BMI Receptacle |
