0442810008
| 制造商 | Molex, LLC |
| 描述 | Conn Power PL 18 POS 4.2mm Solder ST Thru-Hole 18 Terminal 1 Port Bag MINIFIT CONTINUITY TST PLG DR |
| 分类 |
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 2.5/Contact | 最小输入电压 | 600V |
机械参数
| 颜色 | Black | 间距 | 0.165" (4.20mm) |
| 包装方式 | Bag | 导线类型 | Discrete |
| 排间距 | 0.165" (4.20mm) | 端接方式 | Solder |
| 触头类型 | Piston | 安装类型 | Through Hole |
| 连接器类型 | Plug | 接触镀层 | Gold |
| 紧固类型 | Locking Ramp | 排数 | 2 |
| 触头材料 | Beryllium Copper | 壳体材料 | Nylon 4/6 |
| 电缆端接方式 | Solder | 触点数 | 18 |
| 位数 | 18 | ||
产品信息
| 类型 | Power | 连接器性别 | PL |
| 端口数 | 1 | ||
环境参数
| 工作温度 | 105 | ||
文档与媒体
相关型号
15-06-0181
molex
Conn Housing RCP 18 POS 4.2mm Crimp ST Panel Mount Bag CONN RECEPT 18POS W/PANEL MOUNT Housing 4.2mm BMI recept,D/R,UL94V-0,18w Headers & Wire Housings RECPT DUAL ROW 18P w/panel mount ears Molex MINI-FIT BMI 系列 2 行 4.2mm 节距 18 路 直 母 面板安装 压接连接器外壳
0039012185
Molex
Conn Housing RCP 18 POS 4.2mm Crimp ST Bag CONN RECEPT 18POS DUAL
15-06-0180
molex
Conn Housing RCP 18 POS 4.2mm Crimp ST Panel Mount Bag CONN RECEPT 18POS W/PANEL MOUNT Housing 4.2mm BMI recept,D/R,UL94V-2,18w 4.20mm Pitch Mini-Fit® BMI Receptacle Housing, Dual Row with Panel Mount Ears, PA Polyamide Nylon 6/6, UL 94V-2, 18 Circuits Molex MINI-FIT BMI 系列 2 行 4.2mm 节距 18 路 直 母 面板安装 压接连接器外壳

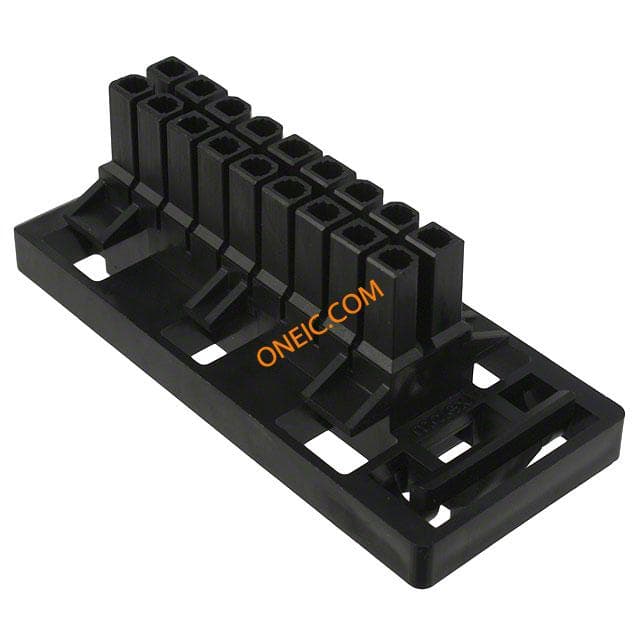

0445160009
