点击放大查看

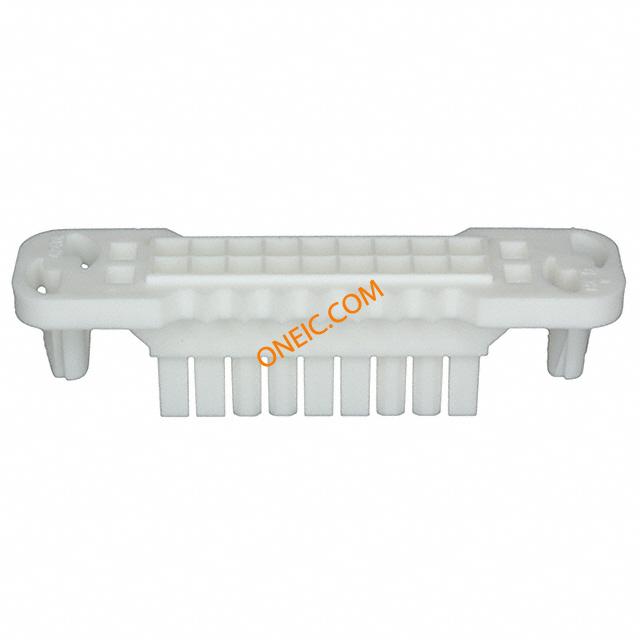

15-06-0181
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 18 POS 4.2mm Crimp ST Panel Mount Bag CONN RECEPT 18POS W/PANEL MOUNT Housing 4.2mm BMI recept,D/R,UL94V-0,18w Headers & Wire Housings RECPT DUAL ROW 18P w/panel mount ears Molex MINI-FIT BMI 系列 2 行 4.2mm 节距 18 路 直 母 面板安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Mini-Fit BMI | 零件号别名 | 0015060181 42474-1821 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 800 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 最大额定电流 | 11 A, 6 A | ||
机械参数
| 颜色 | Natural | 深度 | 19.6mm |
| 间距 | 4.2 mm | 宽度 | 17.3mm |
| 长度 | 69.6mm | 包装方式 | Bulk |
| 方向 | 直 | 排间距 | 0.165" (4.20mm) |
| 触头类型 | Female Socket | 安装类型 | Straight |
| 连接器类型 | Receptacle | 安装样式 | Wire |
| 排数 | 2 | 壳体材料 | Nylon |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 18 | 接触件端接 | Crimp |
| 位数 | 18 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | 42474 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles / Sockets - Housings |
| 基础产品编号 | 42474 | 适用产品/相关产品 | Mini-Fit BMI Receptacle |
