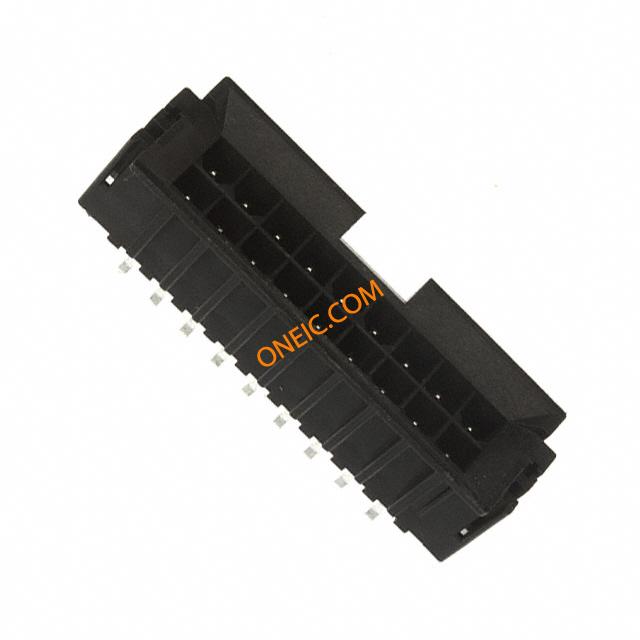

点击放大查看
43879-0029
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 18POS 4.2MM DUAL TIN Headers & Wire Housings MINI-FIT CPI HDR 18P vertical dual row 4.20mm Pitch Mini-Fit® CPI Header, Compliant Pin Interface, Dual Row, Vertical, 18 Circuits, Tin (Sn) Plating HEADER, MINI-FIT CPI, TIN, 18WAY MINI-FIT CPI HDR FOR .094PC |
| 分类 |
商业参数
| 商标名 | Mini-Fit CPI | 零件号别名 | 0438790029 43879-0029-PB |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 200 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366930 |
电气参数
| 量程（°/s） | :MOLEX - Mini-Fit CPI 43879 Series | 额定电压 | 600 V |
| 最大额定电流 | 5 A | ||
机械参数
| 颜色 | Black | 间距 | 0.165" (4.20mm) |
| 重量 | 0.002 | 包装方式 | Tray |
| 排间距 | 0.165" (4.20mm) | 端接方式 | Press-Fit |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 行程角度 | Straight | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 端接样式 | Through Hole | 触点数 | 18 |
| 接触件端接 | :Press Fit Vertical | 位数 | 18 |
| 接触镀层厚度 | 100µin (2.54µm) | 第一连接器安装类型 | :PCB |
产品信息
| 类型 | Shrouded | 连接器性别 | :Header |
| 系列 | 43879 | 产品子类型 | Headers |
| 电路数 | 18 | 加载位置数 | All |
