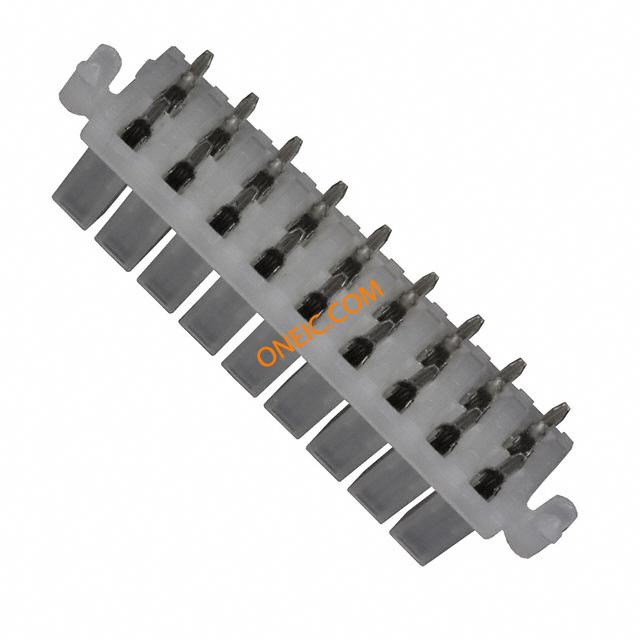

点击放大查看
0015247180
| 制造商 | Molex, LLC |
| 描述 | Conn Power RCP 18 POS 4.2mm Solder ST Thru-Hole 18 Terminal 1 Port Tray CONN HEADER 18POS 4.2MM VERT TIN |
| 分类 |
商业参数
| 交货时间 | 43 Days | 子类别 | Connector Power |
| 标准包装数量 | 10 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 9/Contact | 最小输入电压 | 600VDC|600VAC |
机械参数
| 颜色 | Natural | 深度 | 9.6 |
| 间距 | 0.165" (4.20mm) | 高度 | 11.34 |
| 包装方式 | Tray | 排间距 | 0.165" (4.20mm) |
| 端接方式 | Solder | 触头类型 | Female Socket |
| 安装类型 | Through Hole | 连接器类型 | Receptacle |
| 接触镀层 | Tin Over Nickel | 排数 | 2 |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 总长度 | 34 | 触点数 | 18 |
| 位数 | 18 | 接触镀层厚度 | 100µin (2.54µm) |
产品信息
| 类型 | Power | 连接器性别 | RCP |
| 产品特性 | Board Lock | 端口数 | 1 |
| 行业别名 | 15-24-7180, 15247180 | 加载位置数 | All |
环境参数
| 工作温度 | 105 | ||
