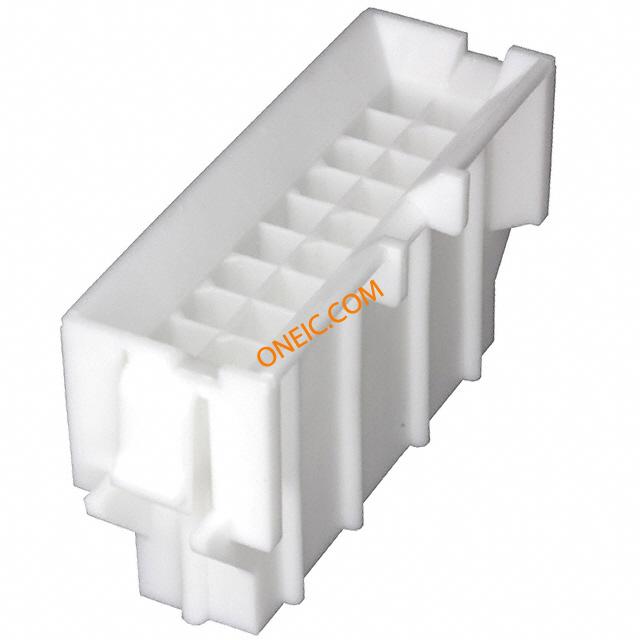

点击放大查看
15-06-0186
| 制造商 | Molex, LLC |
| 描述 | CONN PLUG 18POS W/PANEL MNT EARS Headers & Wire Housings PLUG DUAL PM EARS 18 Conn Housing PL 18 POS 4.2mm Crimp ST Bag |
| 分类 |
商业参数
| 商标名 | Mini-Fit BMI | 零件号别名 | 0015060186 42475-1821 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 最大额定电流 | 6 A, 9 A | 连接器类型 - 电压输入 | Male |
机械参数
| 颜色 | Natural | 间距 | 0.165" (4.20mm) |
| 包装方式 | Bulk | 排间距 | 0.165" (4.20mm) |
| 触头类型 | Male Pin | 安装类型 | Panel Mount, Snap-In |
| 连接器类型 | Plug | 排数 | 2 |
| 壳体材料 | Nylon | 触点数 | 18 |
| 接触件端接 | Crimp | 位数 | 18 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Plug Housing |
| 系列 | 42475 | 产品子类型 | Wire Housings |
| 应用细节 | Power, Wire-to-Wire, Wire-to-Board | ||
