点击放大查看

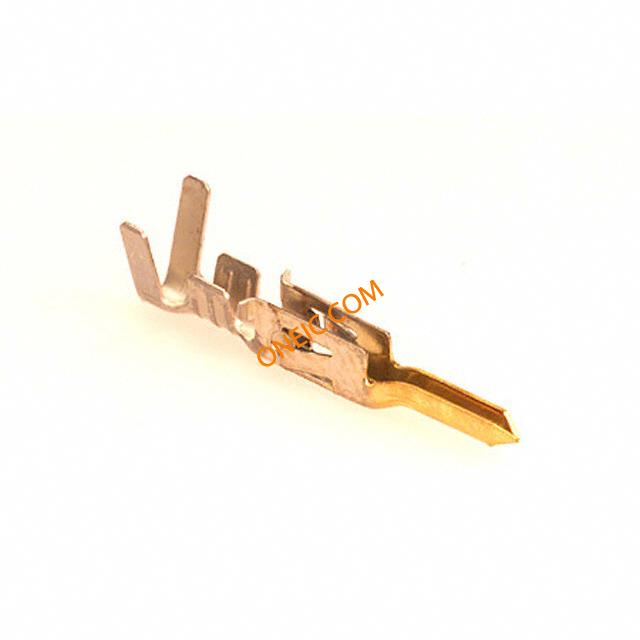

0039000219
| 制造商 | Molex, LLC |
| 描述 | Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 18-24AWG 30GOLD CONN TERM MALE 18-24AWG GOLD |
| 分类 |
商业参数
| 交货时间 | 57 Days | 其他名称 | WM18521CT |
| 子类别 | Connector Contact | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 mohm | 最大额定电流 | 9 |
| 最小供电电压 | 600VDC/600VAC | ||
机械参数
| 深度 | 3.6 mm | 间距 | Not Required mm |
| 高度 | 4.5 mm | 包装方式 | Reel |
| 导线线规 | 18-24 AWG | 屏蔽类型 | No |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳颜色 | Not Required | 安装类型 | Cable Mount |
| 插针或插孔 | Pin | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Gold Over Nickel | 安装样式 | Cable |
| 触头材料 | Phosphor Bronze | 壳体材料 | Not Required |
| 总长度 | 16.8 mm | 触点数 | Not Required |
| 接触件端接 | Crimp | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 行业别名 | 39-00-0219, 39000219 | ||
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号
0011030044
molex
Connector Accessories Mini-Fit JR Extraction Tool Extraction Tool Handtool Type TOOL HAND EXTRACTION MINI-FIT JR
0638111000
molex
Connector Accessories Hand Crimp Tool Hand Crimper Handtool Type TOOL CRIMP 14-24AWG UNIVERSAL Tool: for crimping; 14÷24AWG
0039014036
molex
Conn Housing PL 3 POS 4.2mm Crimp ST Cable Mount Bag CONN PLUG 3POS VERT SINGLE
0039013083
molex
Conn Housing M 8 POS 4.2mm Crimp ST Cable Mount Bag CONN PLUG 8POS VERT DUAL
0639015600
molex
FINE ADJUST APPLICATOR FineAdjust Applicator For Insulation OD 1.90-2.30mm - 18-24 AWG TOOL APPLICATOR 18-24AWG CRIMP
0639002600
molex
Connector Accessories Crimp Applicator Tool FineAdjust Applicator FINE ADJUST APPLICATOR
0639102900
molex
T2 Terminator Tooling Die T2 TERMINATOR ASSEMBLY
39-01-3123
molex
Conn Housing M 12 POS 4.2mm Crimp ST Cable Mount Bag CONN PLUG 12POS VERT DUAL 4.20mm,housing,MiniFit,plug,nylon,DR,12w Headers & Wire Housings 12 CKT PLUG HOUSING PLUG & SOCKET HOUSING, PLUG, NYLON HOUSING, 4.2MM, 12WAY MiniFitJrPlg FreeHng /DH V-2 12Ckt Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 12 路 直 公 压接连接器外壳
0424751041
Molex
Conn Housing PL 10 POS 4.2mm Crimp ST Cable Mount Bag MINIFIT JR BMI PLG DLRW 10CKT
0638190900
Molex
Hand Crimp Tool For Mini-Fit Jr. Male and Female Crimp Terminals, 16-24 AWG TOOL HAND CRIMP 16-24AWG Connector Accessories Hand Crimp Tool Tool: for crimping; terminals; 0,2÷0,8mm2,0,5÷0,8mm2,1,3mm2
0639102600
Molex
T2 Terminator For insulation OD 2.50-2.95mm - 18-24 AWG T2 TERMINATOR ASSEMBLY
39-01-2126
Molex Connector Corporation
CONN PLUG 12POS PANEL MOUNT 4.20mm,housing,MiniFit,plug,DR,12w Headers & Wire Housings 12 CKT PLUG HOUSING Conn Housing M 12 POS 4.2mm Crimp ST Panel Mount Bag PLUG, MINI-FIT, DUAL ROW, PNL MT, 12WAY PLUG HOUSING-PANEL MOUNT; 94V-0; 12 CIRCUITS Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 12 路 直 公 压接连接器外壳

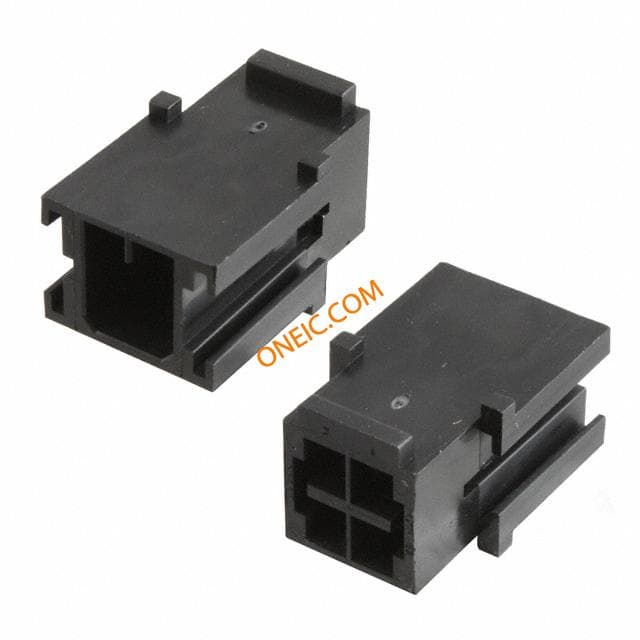

15-97-6041
