点击放大查看

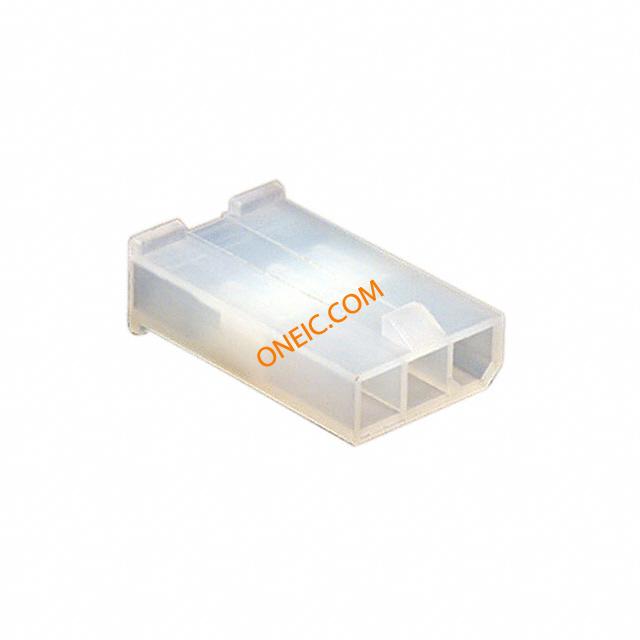

0039014036
| 制造商 | Molex, LLC |
| 描述 | Conn Housing PL 3 POS 4.2mm Crimp ST Cable Mount Bag CONN PLUG 3POS VERT SINGLE |
| 分类 |
商业参数
| 交货时间 | 43 Days | 子类别 | Connector Discrete Wire Housing |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 13/Contact A | 最小输入电压 | 600VDC|600VAC |
| 最小供电电压 | 600VDC/600VAC | ||
机械参数
| 颜色 | Natural | 深度 | 23.4 mm |
| 间距 | 0.165" (4.20mm) | 高度 | 7.4 mm |
| 包装方式 | Bag | 触头类型 | Male Pin |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 连接器类型 | Plug | 紧固类型 | Locking Ramp |
| 排数 | 1 | 壳体材料 | Nylon 6/6 |
| 总长度 | 19.2 mm | 触点数 | 3 |
| 接触件端接 | Crimp | 位数 | 3 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 行业别名 | 39-01-4036, 39014036 |
环境参数
| 工作温度 | -40C to 105C | ||
