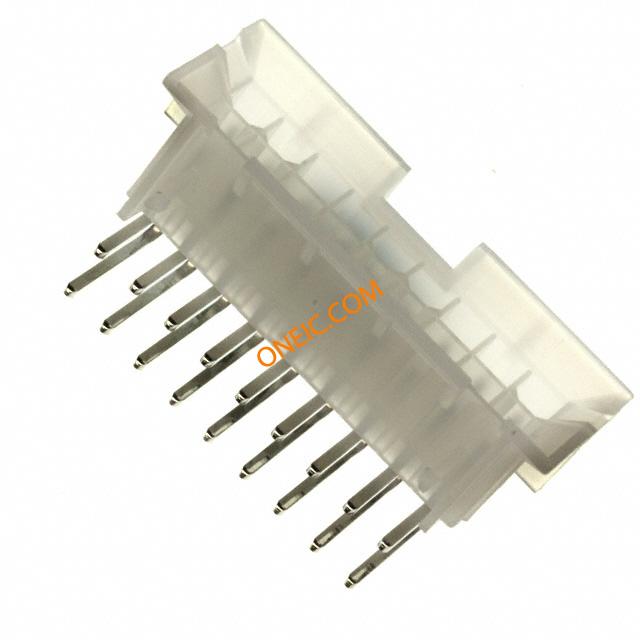

点击放大查看
15-24-6180
| 制造商 | Molex, LLC |
| 描述 | Conn Wire to Board HDR 16 POS 4.2mm Solder RA Thru-Hole Tray CONN HEADER 18POS 4.2MM R/A TIN Headers & Wire Housings R/A HDR DUAL ROW 18P Conn Wire to Board HDR 18 POS 4.2mm Solder RA Thru-Hole Tray |
| 分类 |
商业参数
| 商标名 | Mini-Fit BMI | 零件号别名 | 0015246180 A-42404-18A1 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Trays |
| 工厂包装数量 | 280 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 600 V | 最大额定电流 | 11 A, 6 A |
机械参数
| 颜色 | Natural | 间距 | 4.2 mm |
| 包装方式 | Tray | 排间距 | 0.165" (4.20mm) |
| 端接方式 | Solder | 触点形式 | Male Pin |
| 触头类型 | Male Pin | 引脚间距 | 0.165" (4.20mm) |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin Over Nickel | 排数 | 2 |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 端接样式 | Through Hole | 触点数 | 16 |
| 位数 | 18 | 接触镀层厚度 | 100µin (2.54µm) |
| 每排/每行位置数 | All | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 系列 | 42404 | 产品特性 | Board Lock |
| 主要用途 | Board Lock | 产品子类型 | Header Assemblies |
| 输出配置 | Through Hole, Right Angle | 加载位置数 | All |
