点击放大查看

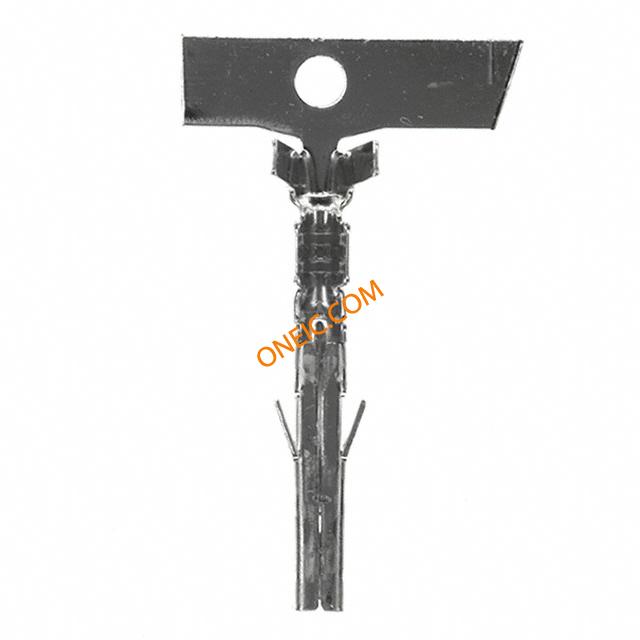

0039000213

制造商	Molex, LLC
描述	Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-24AWG TIN
分类	连接器解决方案接触件接触件（通用）

对参数有疑问？问 AI 助手

商业参数

其他名称

WM3117CT

标准包装数量

Tape & Reel

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

接触电阻	10 mohm	最大额定电流	9
最小供电电压	600VDC/600VAC

机械参数

深度	3.6 mm	间距	Not Required mm
高度	4.5 mm	包装方式	Reel
导线线规	18-24 AWG	屏蔽类型	No
端接方式	Crimp	触头类型	Signal
外壳颜色	Not Required	安装类型	Cable Mount
插针或插孔	Socket	连接器类型	Connector Headers and PCB Receptacles
接触镀层	Bright Tin Over Nickel	安装样式	Cable
触头材料	Phosphor Bronze	壳体材料	Not Required
总长度	14.7 mm	触点数	Not Required
接触件端接	Crimp	接触镀层厚度	100µin (2.54µm)

产品信息

类型

Power

连接器性别

SKT

环境参数

工作温度

-40C to 105C

文档与媒体

PDF 文档

0039000213_CRIMP_TERMINALS.pdf

相关型号

0011030044

molex

Connector Accessories Mini-Fit JR Extraction Tool Extraction Tool Handtool Type TOOL HAND EXTRACTION MINI-FIT JR

¥136.8576

详情

0638111000

molex

Connector Accessories Hand Crimp Tool Hand Crimper Handtool Type TOOL CRIMP 14-24AWG UNIVERSAL Tool: for crimping; 14÷24AWG

¥349.9200

详情

0039012160

molex

Conn Housing RCP 16 POS 4.2mm Crimp ST Bag CONN RECEPT 16POS DUAL

¥2.5602

详情

暂无图片

0439740002

Molex, LLC

Buy now, ships today. 0439740002 - 40 Position Housing for Female Sockets Connector Black Panel Mount Mini-Fit BMI from Molex. View datasheets, pricing and availability from DigiKey now!

¥24.7104

详情

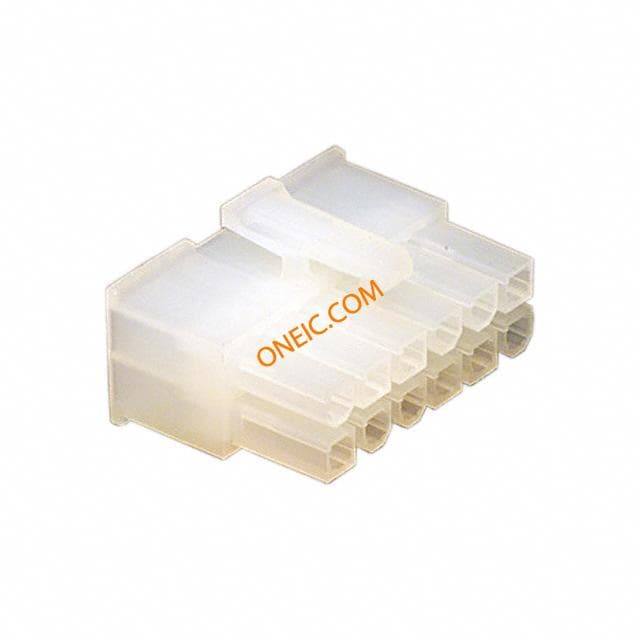

0039012125

molex

Conn Housing F 12 POS 4.2mm Crimp ST Cable Mount Bag CONN RECEPT 12POS DUAL

¥2.6086

详情

暂无图片

0439740005

Molex, LLC

Buy now, ships today. 0439740005 - 40 Position Housing for Female Sockets Connector Black Panel Mount Mini-Fit BMI from Molex. View datasheets, pricing and availability from DigiKey now!

¥24.7104

详情

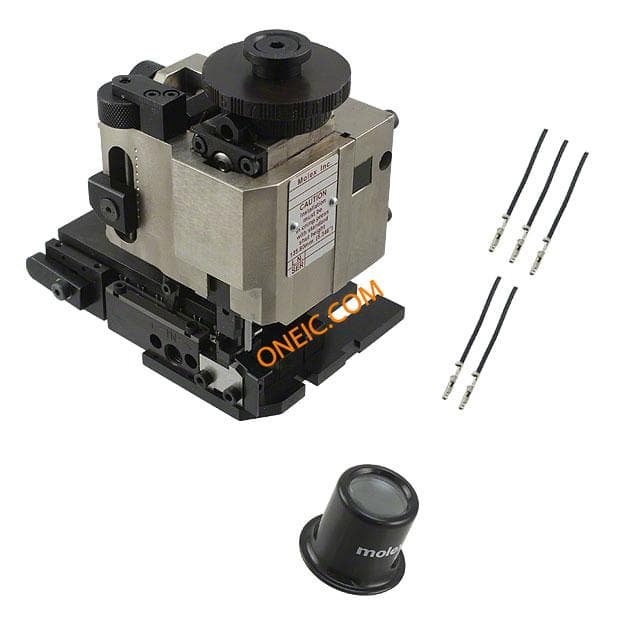

0639015600

molex

FINE ADJUST APPLICATOR FineAdjust Applicator For Insulation OD 1.90-2.30mm - 18-24 AWG TOOL APPLICATOR 18-24AWG CRIMP

¥25401.6000

详情

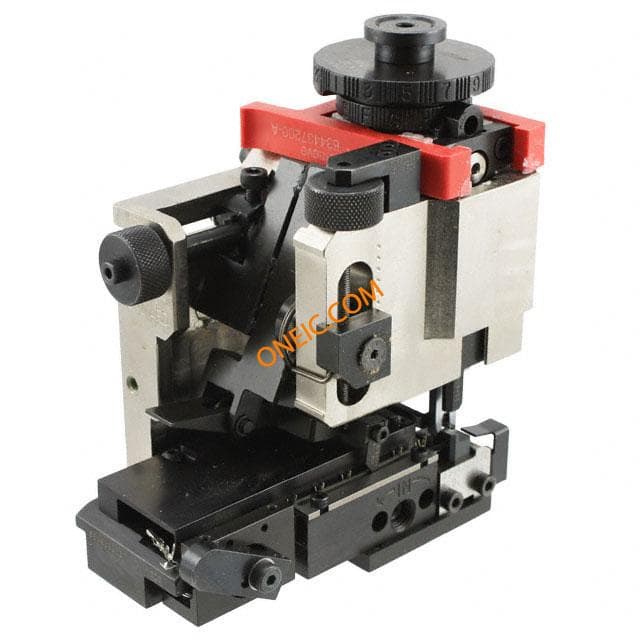

0639002600

molex

Connector Accessories Crimp Applicator Tool FineAdjust Applicator FINE ADJUST APPLICATOR

¥24766.5600

详情

0639102900

molex

T2 Terminator Tooling Die T2 TERMINATOR ASSEMBLY

详情

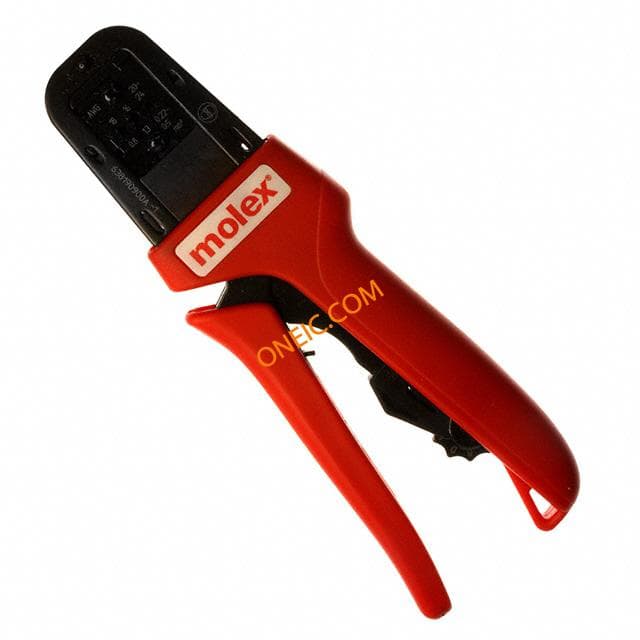

0638190900

Molex

Hand Crimp Tool For Mini-Fit Jr. Male and Female Crimp Terminals, 16-24 AWG TOOL HAND CRIMP 16-24AWG Connector Accessories Hand Crimp Tool Tool: for crimping; terminals; 0,2÷0,8mm2,0,5÷0,8mm2,1,3mm2

¥1796.2560

详情

0639102600

Molex

T2 Terminator For insulation OD 2.50-2.95mm - 18-24 AWG T2 TERMINATOR ASSEMBLY

¥18374.4720

详情

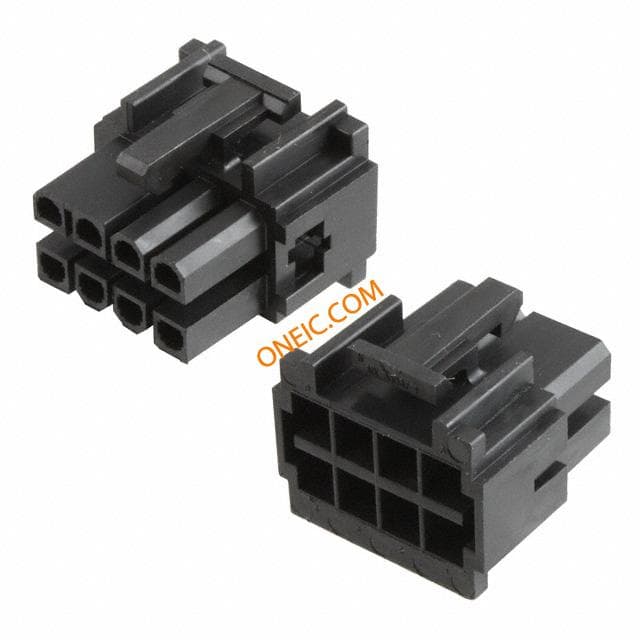

15-97-5081

Molex Connector Corporation

CONN RCPT 8POS DUAL MINI-FIT Headers & Wire Housings 8 CRKT MINI-FIT PLUG Conn Housing RCP 8 POS 4.2mm Crimp ST Bag RECEPT, MINI-FIT TPA, 4.2MM, 8WAY MINIFIT TPA RECEPTACLE V-0

¥2.0232

详情

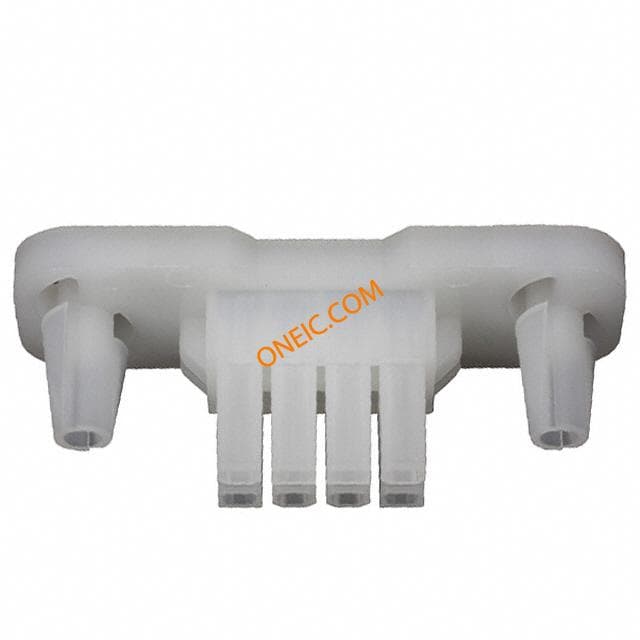

15-06-0080
