点击放大查看

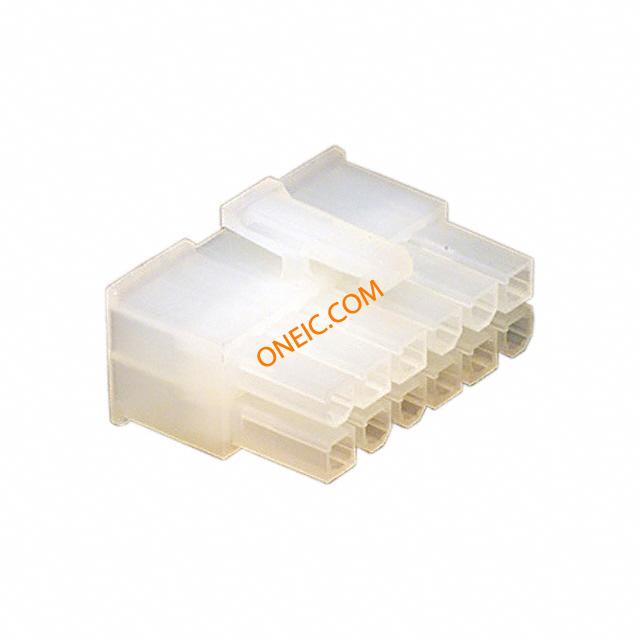

0039012125
| 制造商 | Molex, LLC |
| 描述 | Conn Housing F 12 POS 4.2mm Crimp ST Cable Mount Bag CONN RECEPT 12POS DUAL |
| 分类 |
商业参数
| 交货时间 | 22 Days | 子类别 | Connector Discrete Wire Housing |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 9/Contact A | 最小输入电压 | 600VDC|600VAC |
| 最小供电电压 | 600VDC/600VAC | ||
机械参数
| 颜色 | Natural | 深度 | 19.6 mm |
| 间距 | 0.165" (4.20mm) | 高度 | 15.1 mm |
| 包装方式 | Bag | 排间距 | 0.165" (4.20mm) |
| 触头类型 | Female Socket | 外壳颜色 | Ivory |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Latch Lock | 排数 | 2 |
| 壳体材料 | Nylon 66 | 总长度 | 26.4 mm |
| 触点数 | 12 | 接触件端接 | Crimp |
| 位数 | 12 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | F | 行业别名 | 39-01-2125, 39012125 |
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号

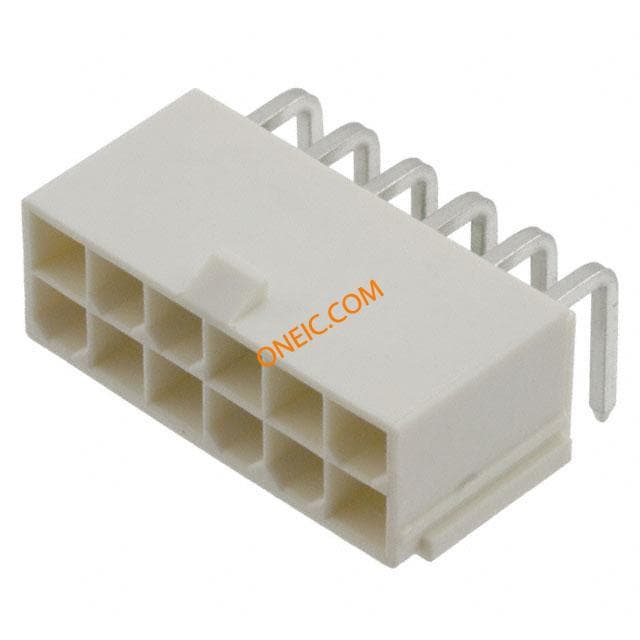

0874271202
molex
Conn Wire to Board HDR 12 POS 4.2mm Solder RA Thru-Hole Tray 4.2MM WTB RA HEADER 12CKT
0039301122
molex
Conn Wire to Board HDR 12 POS 4.2mm Solder RA Thru-Hole Tray Conn Power HDR 12 POS 4.2mm Solder RA Thru-Hole 12 Terminal 1 Port Bag CONN HEADER 12POS 4.2MM R/A GOLD
0039300120
molex
Conn Wire to Board HDR 12 POS 4.2mm Solder RA Thru-Hole Bag Conn Power HDR 12 POS 4.2mm Solder RA Thru-Hole 12 Terminal 1 Port Bag CONN HEADER 12POS 4.2MM R/A TIN
0039301120
molex
Conn Wire to Board HDR 12 POS 4.2mm Solder RA Thru-Hole Bulk CONN HEADER 12POS 4.2MM R/A TIN Conn Power HDR 12 POS 4.2mm Solder RA Thru-Hole 12 Terminal 1 Port Bag
0039291128
molex
Conn Wire to Board HDR 12 POS 4.2mm Solder RA Thru-Hole Bag Conn Power HDR 12 POS 4.2mm Solder RA Thru-Hole 12 Terminal 1 Port Bag CONN HEADER 12POS 4.2MM R/A TIN

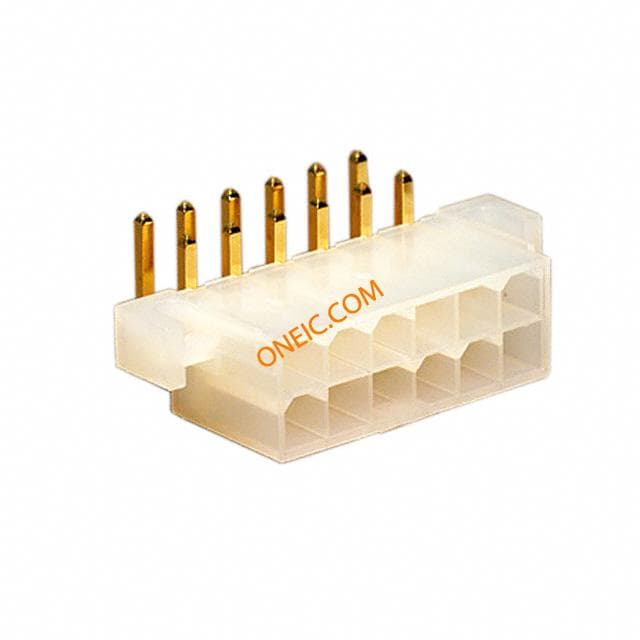

0039295123
molex
Conn Wire to Board HDR 12 POS 4.2mm Solder RA Thru-Hole Bag Conn Power HDR 12 POS 4.2mm Solder RA Thru-Hole 12 Terminal 1 Port Bag CONN HEADER 12POS 4.2MM R/A GOLD

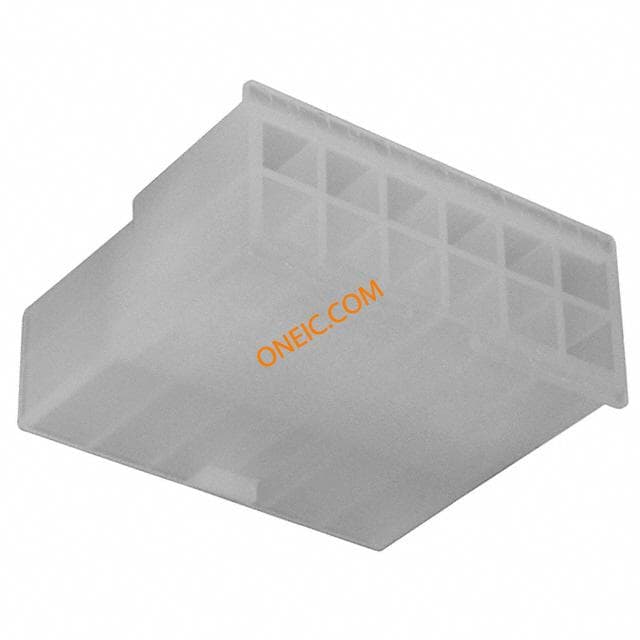

39-01-3123
molex
Conn Housing M 12 POS 4.2mm Crimp ST Cable Mount Bag CONN PLUG 12POS VERT DUAL 4.20mm,housing,MiniFit,plug,nylon,DR,12w Headers & Wire Housings 12 CKT PLUG HOUSING PLUG & SOCKET HOUSING, PLUG, NYLON HOUSING, 4.2MM, 12WAY MiniFitJrPlg FreeHng /DH V-2 12Ckt Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 12 路 直 公 压接连接器外壳
39-01-2121
molex
Conn Housing M 12 POS 4.2mm Crimp ST Panel Mount Bag CONN PLUG 12POS PANEL MOUNT 12 way dual row panel mount plug Headers & Wire Housings 12 CKT PLUG HOUSING HOUSING, PLUG, DUAL ROW, 12 WAY, NYLON PLUG HOUSING-PANEL MOUNT; 94V-2; 12 CIRCUITS Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 12 路 直 公 面板安装 压接连接器外壳
0039299123
Molex
Conn Power HDR 12 POS 4.2mm Solder ST Thru-Hole 12 Terminal 1 Port Tray CONN HEADER 12POS 4.2MM VERT TIN
0039293126
Molex
Conn Power HDR 12 POS 4.2mm Solder ST Thru-Hole 12 Terminal 1 Port Bag CONN HEADER 12POS 4.2MM VERT TIN
0039299127
Molex
Conn Power HDR 12 POS 4.2mm Solder ST Thru-Hole 12 Terminal 1 Port Tray CONN HEADER 12POS 4.2MM VERT TIN
0039299122
Molex
Conn Power HDR 12 POS 4.2mm Solder ST Thru-Hole 12 Terminal 1 Port Tray CONN HEADER 12POS 4.2MM VERT TIN
0039301121
Molex
Conn Power HDR 12 POS 4.2mm Solder RA Thru-Hole 12 Terminal 1 Port Bag CONN HEADER 12POS 4.2MM R/A GOLD
0039296128
Molex
Conn Power HDR 12 POS 4.2mm Solder ST Thru-Hole 12 Terminal 1 Port Bag CONN HEADER 12POS 4.2MM VERT GOL
0442810005
Molex
Conn Power PL 12 POS 4.2mm Solder ST Thru-Hole 12 Terminal 1 Port Bag MINIFIT CONTINUITY TST PLG DR
39-01-3129
Molex Connector Corporation
CONN PLUG 12POS VERT DUAL 4.20mm,housing,MiniFit,plug,nylon,DR,12w Headers & Wire Housings 12 CKT PLUG HOUSING Conn Housing PL 12 POS 4.2mm Crimp ST Bag HOUSING, 4.2MM, 12WAY PLUG HOUSING-FREE HANGING; 94V-0; 12 CIRCUITS Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 12 路 直 公 压接连接器外壳
39-01-2126
Molex Connector Corporation
CONN PLUG 12POS PANEL MOUNT 4.20mm,housing,MiniFit,plug,DR,12w Headers & Wire Housings 12 CKT PLUG HOUSING Conn Housing M 12 POS 4.2mm Crimp ST Panel Mount Bag PLUG, MINI-FIT, DUAL ROW, PNL MT, 12WAY PLUG HOUSING-PANEL MOUNT; 94V-0; 12 CIRCUITS Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 12 路 直 公 压接连接器外壳
39-29-9124
Molex Connector Corporation
CONN HEADER 12POS 4.2MM STR GOLD Headers & Wire Housings MFJ 12P V HDR DR SAU Conn Power HDR 12 POS 4.2mm Solder ST Thru-Hole 12 Terminal 1 Port Tray
39-28-9128
Molex Connector Corporation
CONN HEADER 12POS 4.2MM STR GOLD Molex 5566 Series 4.2mm Pitch 12 Way 2 Row Straight PCB Header, Solder Termination, 9A Headers & Wire Housings 12 CKT VERT HEADER Conn Power HDR 12 POS 4.2mm Solder ST Thru-Hole 12 Terminal 1 Port Tray Molex MINI-FIT JR. 系列 4.2mm节距 12路 (2排) 直 PCB 针座, 焊接端接, 9A , 通孔

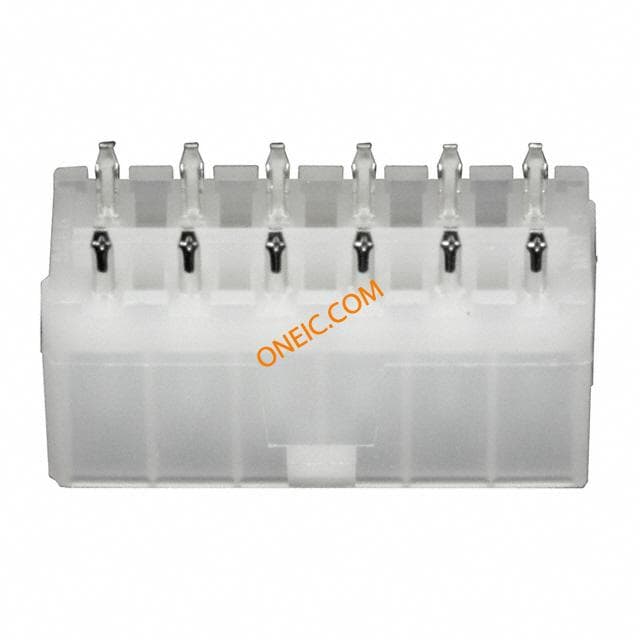

44472-1254
