点击放大查看

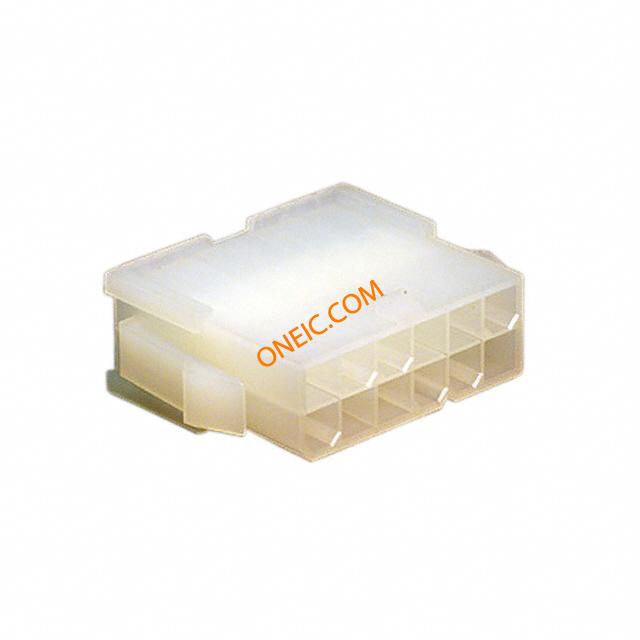

39-01-2121
| 制造商 | Molex, LLC |
| 描述 | Conn Housing M 12 POS 4.2mm Crimp ST Panel Mount Bag CONN PLUG 12POS PANEL MOUNT 12 way dual row panel mount plug Headers & Wire Housings 12 CKT PLUG HOUSING HOUSING, PLUG, DUAL ROW, 12 WAY, NYLON PLUG HOUSING-PANEL MOUNT; 94V-2; 12 CIRCUITS Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 12 路 直 公 面板安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Mini-Fit Jr. | 零件号别名 | 0039012121 5559-12P |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-2 | ||
电气参数
| 额定电压 | 600 V | 最大额定电流 | 13 A |
| 连接器类型 - 电压输入 | Male | ||
机械参数
| 颜色 | Natural | 深度 | 23.9mm |
| 间距 | 0.165" (4.20mm) | 宽度 | 12mm |
| 长度 | 31.8mm | 重量 | 0.004 |
| 材料（通用） | :Nylon | 包装方式 | Bulk |
| 排间距 | 0.165" (4.20mm) | 触头类型 | Male Pin |
| 安装类型 | Panel Mount, Snap-In | 连接器类型 | Plug |
| 紧固类型 | Locking Ramp | 排数 | 2 |
| 壳体材料 | Nylon | 触点数 | 12 |
| 接触件端接 | Crimp | 位数 | 12 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Plug Housing |
| 连接器性别 | Male | 系列 | 5559 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Wire Housings |
| 适用产品/相关产品 | Mini-Fit Jr. Plug | ||
