点击放大查看

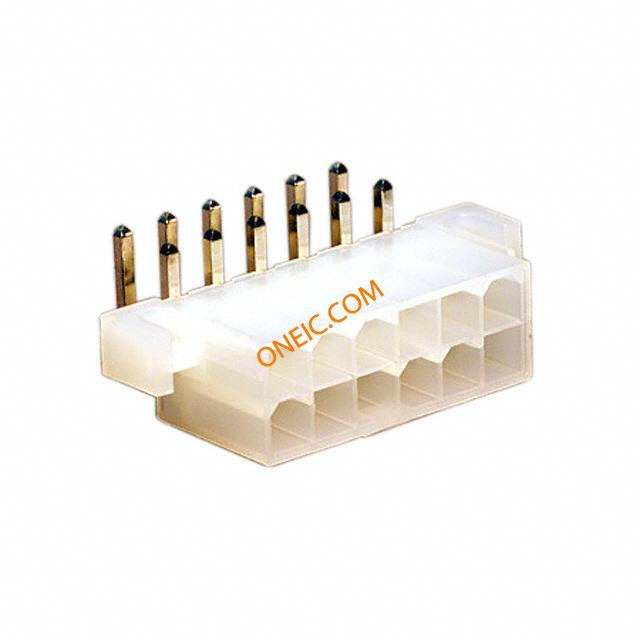

0039291128
| 制造商 | Molex, LLC |
| 描述 | Conn Wire to Board HDR 12 POS 4.2mm Solder RA Thru-Hole Bag Conn Power HDR 12 POS 4.2mm Solder RA Thru-Hole 12 Terminal 1 Port Bag CONN HEADER 12POS 4.2MM R/A TIN |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 51 Days | 子类别 | Connector Power |
| 标准包装数量 | Trays | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 mohm | 最大额定电流 | 6/Contact A |
| 最小输入电压 | 600V | 最小供电电压 | 600V |
机械参数
| 颜色 | Natural | 深度 | 19.4 mm |
| 间距 | 4.2 mm | 高度 | 11.4 mm |
| 直径 | Not Required mm | 包装方式 | Bag |
| 排间距 | 0.165" (4.20mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Natural |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin Over Copper | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 排数 | 2 |
| 触头材料 | Brass | 壳体材料 | Nylon 6/6 |
| 总长度 | 36.4 mm | 触点数 | 12 |
| 位数 | 12 | 接触镀层厚度 | 200µin (5.08µm) |
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 端口数 | 1 | 行业别名 | 39-29-1128, 39291128 |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -40C to 105C | 结工作温度 | 105C |
