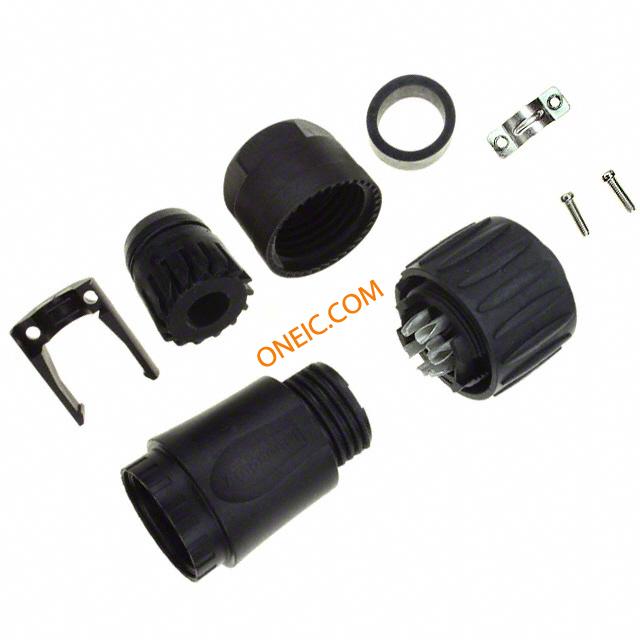

C016 30D006 110 12
| 制造商 | |
| 描述 | Circular DIN Connectors 6+PE FEM STRT BLK SODR SIL IN ST RELF CONN FEMALE PLUG 6+PE SILVER BLK 7 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts SOCKET, FREE, ECOMATE, 6+PE CONN, CIRCULAR, RCPT, 6POS, CABLE connector, plastic circ, str fem cable conn, 6+gnd silver plt cont, solder term, blk Connector: circular; plug; with cable clamp; female; PIN:7; 250V Cable socket 6+PE, C016 30D006 110 12, Amphenol Amphenol Eco-Acoplamiento 系列 6 + PE路 电缆安装 直向 连接器 插座 |
| 分类 |
商业参数
| 零件号别名 | 81K1490 | 产品类别 | Circular DIN Connectors |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 海关税号 | 85366990 | 认证机构标志 | UL Recognized/CSA/VDE |
| 材料阻燃等级 | UL94-V0 | ||
电气参数
| 额定电压 | 250V | 供电电压 | DIN |
| 最大额定电流 | 12A | 连接器类型 - 电压输入 | with cable clamp |
机械参数
| 颜色 | Black | 重量 | 0.04 |
| 包装方式 | Bulk | 出线方向 | Yes |
| 导线线规 | 20 | 方向 | Keyed |
| 外壳样式 | Receptacle | 端接方式 | Solder |
| 重量（g） | 39.20000 | 触头类型 | Socket |
| 安装类型 | Free Hanging (In-Line) | 行程角度 | Straight |
| 电缆直径 | 6 mm to 12.5 mm | 连接器类型 | Plug, Female Sockets |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 封装形式 | Plastic |
| 连接器用途 | Threaded | 插入角度 | :- |
| 锁定特性 | threaded joint, internal thread | 本体材料 | :Nylon 6.6 (Polyamide 6.6) |
| 触头材料 | :- | 壳体材料 | Polyamide |
| 包装数量 | 50 | 主要材料 | DIN |
| 连接器 - 电缆 | plug | 端接样式 | Solder |
| 第一触头极性 | Female | 连接器颜色 | black |
| 触点数 | 7 | 接触件端接 | :Solder |
| 介电材料 | Polyamide | 位数 | 7 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Polyamide |
| 典型触点布局 | 6 + 1 Ground (PE) | 触点材料 - 镀层 | silver plated |
| 第一连接器安装类型 | :Cable | 第一连接器安装特征 | 6+PE |
产品信息
| SPG | 50 | 类型 | Cable Socket |
| 连接器性别 | Male | 系列 | eco mate |
| 产品特性 | Cable Clamp, Strain Relief | 制造商全称 | C016 Series |
| 产品子类型 | Connectors | 适配器系列 | ECOMATE (C016) |
| 单元数量 | 1 | 应用细节 | Commercial |
环境参数
| 密封等级 | IP 67 | 防护等级 | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| 工作温度 | -40°C ~ 125°C | ||
文档与媒体
相关型号
C016 30C006 100 12
amphenol
Conn Circular M 7 POS Solder ST Panel Mount 7 Terminal 1 Port 06P+PE MALE RECEPT. C16-M CONN MALE RCPT 6+PE SOLDER SILVR 7 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Circular DIN Connectors 6+PE MALE RECEPT BLK SOLDER SILVR CONTACT CIRCULAR, RECEPTACLE, 6+PE WAY, PANEL connector, plastic circ, male panel recept, 6+gnd silver plt cont, solder term, black Connector: circular; socket; male; Series: ECOMATE (C016); PIN:7 Appliance plug 6+PE, C016 30C006 100 12, Amphenol
C016 30D006 110 12
Amphenol Tuchel
Circular DIN Connectors 6+PE FEM STRT BLK SODR SIL IN ST RELF CONN FEMALE PLUG 6+PE SILVER BLK 7 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts SOCKET, FREE, ECOMATE, 6+PE CONN, CIRCULAR, RCPT, 6POS, CABLE connector, plastic circ, str fem cable conn, 6+gnd silver plt cont, solder term, blk Connector: circular; plug; with cable clamp; female; PIN:7; 250V Cable socket 6+PE, C016 30D006 110 12, Amphenol Amphenol Eco-Acoplamiento 系列 6 + PE路 电缆安装 直向 连接器 插座
C016 00V000 010 12
Amphenol Tuchel
Circular DIN Connectors PROTECTIVE COVER FOR FEM CABLE CONNECTOR COVER FOR CABLE BOX C16-M CONN CAP FOR FEMALE PLUG EcoMateCap for Female Cable Conn Connector Accessories Protection Cover For Female Cable Connector DUST CAP, FOR FEMALE CABLE CONNECTOR connector accessory, protection cover(cap) for eco-mate female cable conn, black Sealing cap for cable socket, C016 00V000 010 12, Amphenol Amphenol Eco-Mate 系列 插头 IP65 防尘盖
C016 30H006 110 12
Amphenol Tuchel
Circular DIN Connectors 6+PE MALE STRT BLK SODR SIL IN ST RELF CONN MALE PLUG 6+PE SILVER BLACK 7 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts PLUG, FREE, ECOMATE, 6+PE CIRCULAR CONNECTOR, PLUG, 6+PE, CABLE connector, plastic circ, str male cable conn, 6+gnd silver plt cont, solder term, blk Connector: circular; plug; male; Series: ECOMATE (C016); PIN:7 Cable plug 6+PE, C016 30H006 110 12, Amphenol Amphenol Eco-Mate 系列 6 + PE路 电缆安装 直向 连接器 插头
C016 10C006 000 12
Amphenol Tuchel
Circular DIN Connectors 6+PE MALE RECEPT BLACK CRIMP Conn Circular M 7 POS Crimp ST Panel Mount 7 Terminal 1 Port CONN MALE RCPT 6+PE BLACK PLUG, PANEL, CRIMP, 6P+E WAY connector, plastic circ, male panel recept housing, for 6+gnd crimp pin cont, black Connector: circular; socket; w/o terminals; male; PIN:7; IP65,IP67 Appliance plug 6+PE, C016 10C006 000 12, Amphenol

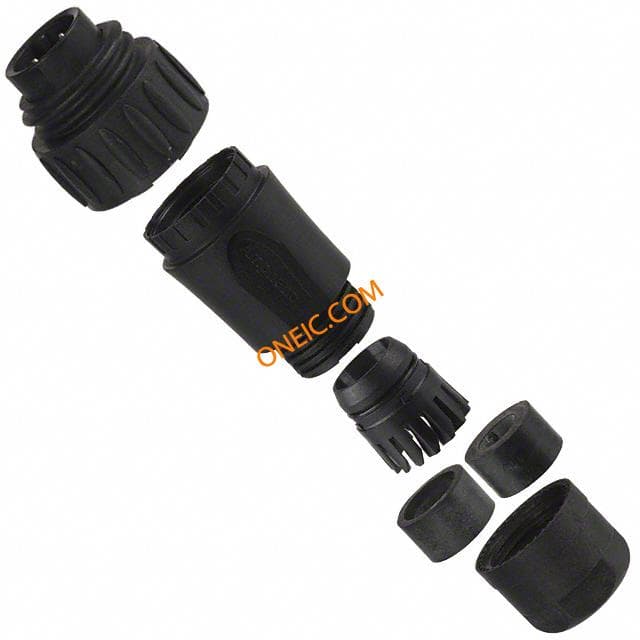

C016 30H006 100 12
