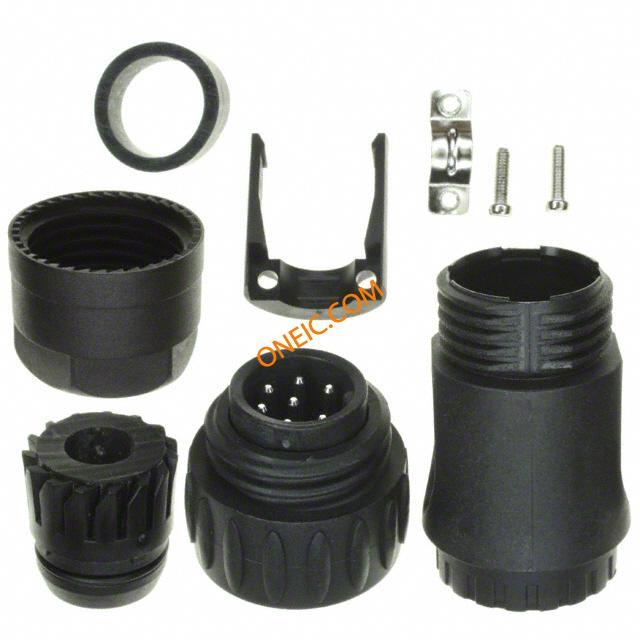

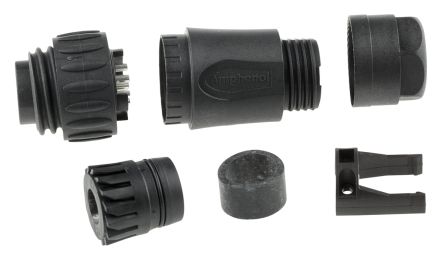

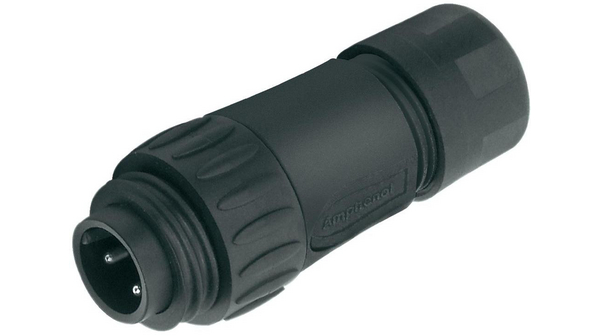

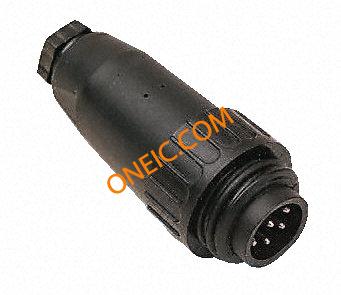

C016 30H006 110 12
| 制造商 | |
| 描述 | Circular DIN Connectors 6+PE MALE STRT BLK SODR SIL IN ST RELF CONN MALE PLUG 6+PE SILVER BLACK 7 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts PLUG, FREE, ECOMATE, 6+PE CIRCULAR CONNECTOR, PLUG, 6+PE, CABLE connector, plastic circ, str male cable conn, 6+gnd silver plt cont, solder term, blk Connector: circular; plug; male; Series: ECOMATE (C016); PIN:7 Cable plug 6+PE, C016 30H006 110 12, Amphenol Amphenol Eco-Mate 系列 6 + PE路 电缆安装 直向 连接器 插头 |
| 分类 |
商业参数
| 零件号别名 | 16M5013 | 产品类别 | Circular DIN Connectors |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85366990 | 认证机构标志 | UL Recognized/CSA/VDE |
| 材料阻燃等级 | UL94-V0 | ||
电气参数
| 额定电压 | 250V | 供电电压 | DIN |
| 最大额定电流 | 12A | ||
机械参数
| 颜色 | Black | 重量 | 0.04 |
| 包装方式 | Bulk | 出线方向 | Yes |
| 导线线规 | 20 | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Solder |
| 重量（g） | 40.80000 | 触头类型 | Pin |
| 安装类型 | Free Hanging (In-Line) | 行程角度 | Straight |
| 电缆直径 | 6 mm to 12.5 mm | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 封装形式 | Plastic |
| 连接器用途 | Threaded | 插入角度 | :- |
| 锁定特性 | threaded joint, external thread | 本体材料 | :Nylon 6.6 (Polyamide 6.6) |
| 触头材料 | :- | 壳体材料 | Polyamide |
| 包装数量 | 50 | 主要材料 | DIN |
| 连接器 - 电缆 | plug | 端接样式 | Solder |
| 第一触头极性 | Male | 连接器颜色 | black |
| 触点数 | 7 | 接触件端接 | :Solder |
| 介电材料 | Polyamide | 位数 | 7 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Polyamide |
| 典型触点布局 | 6 + 1 Ground (PE) | 触点材料 - 镀层 | silver plated |
| 第一连接器安装类型 | :Cable | 第一连接器安装特征 | 6+PE |
产品信息
| SPG | 50 | 类型 | Cable Plug |
| 连接器性别 | Male | 系列 | eco mate |
| 产品特性 | Cable Clamp, Strain Relief | 制造商全称 | C016 Series |
| 产品子类型 | Connectors | 适配器系列 | ECOMATE (C016) |
| 单元数量 | 1 | 应用细节 | Commercial |
环境参数
| 密封等级 | IP 67 | 防护等级 | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| 工作温度 | -40°C ~ 125°C | ||
文档与媒体
相关型号
C016 30D006 110 12
Amphenol Tuchel
Circular DIN Connectors 6+PE FEM STRT BLK SODR SIL IN ST RELF CONN FEMALE PLUG 6+PE SILVER BLK 7 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts SOCKET, FREE, ECOMATE, 6+PE CONN, CIRCULAR, RCPT, 6POS, CABLE connector, plastic circ, str fem cable conn, 6+gnd silver plt cont, solder term, blk Connector: circular; plug; with cable clamp; female; PIN:7; 250V Cable socket 6+PE, C016 30D006 110 12, Amphenol Amphenol Eco-Acoplamiento 系列 6 + PE路 电缆安装 直向 连接器 插座
C016 30H006 110 12
Amphenol Tuchel
Circular DIN Connectors 6+PE MALE STRT BLK SODR SIL IN ST RELF CONN MALE PLUG 6+PE SILVER BLACK 7 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts PLUG, FREE, ECOMATE, 6+PE CIRCULAR CONNECTOR, PLUG, 6+PE, CABLE connector, plastic circ, str male cable conn, 6+gnd silver plt cont, solder term, blk Connector: circular; plug; male; Series: ECOMATE (C016); PIN:7 Cable plug 6+PE, C016 30H006 110 12, Amphenol Amphenol Eco-Mate 系列 6 + PE路 电缆安装 直向 连接器 插头
C016 00U000 010 12
Amphenol Tuchel
Circular DIN Connectors PROTECTIVE COVER FOR MALE CABLE CONNECTOR COVER FOR EQUIPMENT BOX 25,5 CONN CAP FOR MALE PLUG BLACK EcoMateCap for Male Cable Conn DUST CAP, FOR MALE CABLE CONNECTOR connector accessory, protection cover(cap) for eco-mate male cable conn, black Protection cover; Series: ECOMATE (C016); IP65,IP67 Sealing cap for cable plug, C016 00U000 010 12, Amphenol Amphenol Eco-Mate 系列 插座 IP65 防尘盖

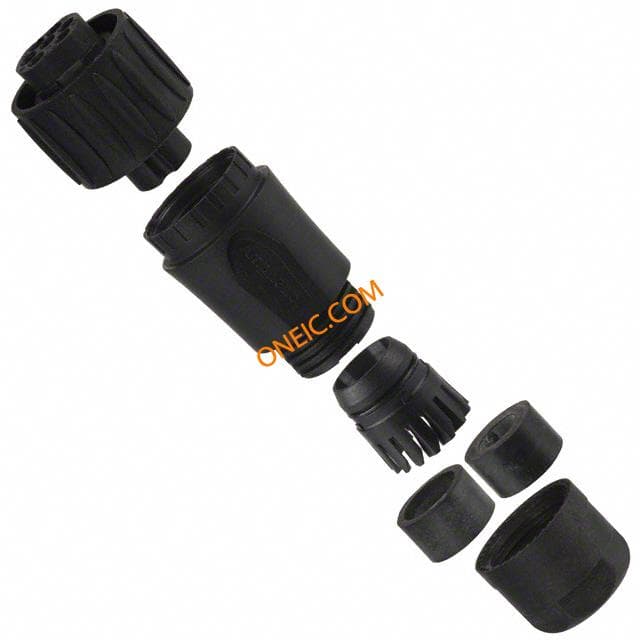

C016 10D006 000 12
Amphenol Tuchel
Circular DIN Connectors 6+PE FEMALE STRAIGHT BLACK CRIMP Conn Circular F 7 POS Crimp ST Cable Mount 7 Terminal 1 Port CONN FMLE PLUG 6+PE BLACK connector, plastic circ, str fem cable housing, for 6+gnd crimp socket cont, black Connector: circular; plug; w/o terminals; female; PIN:7; IP65,IP67

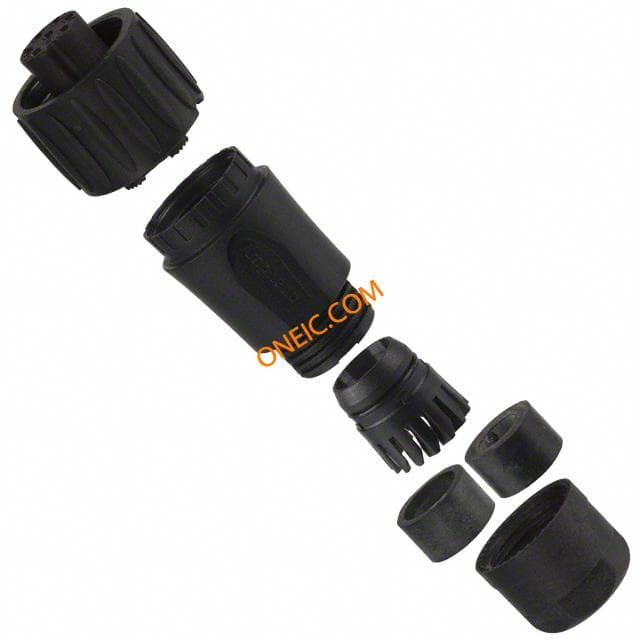

C016 30D006 100 12
