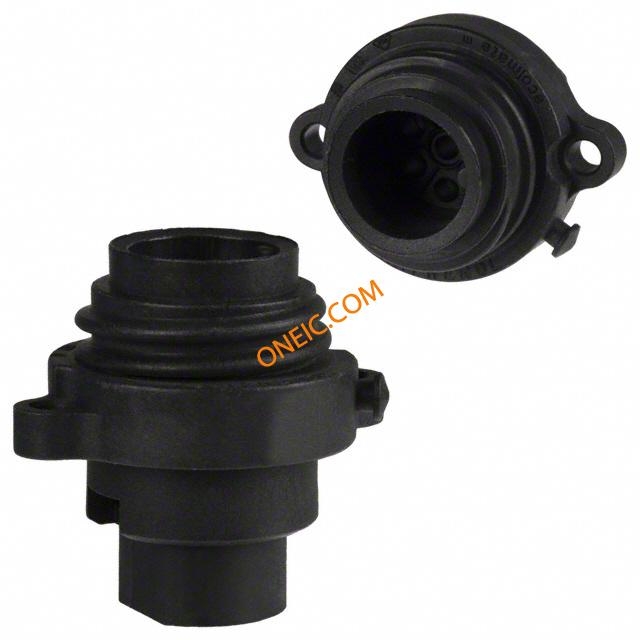

C016 10C006 000 12

点击放大查看

C016 10C006 000 12

制造商
Amphenol Corporation
描述
Circular DIN Connectors 6+PE MALE RECEPT BLACK CRIMP Conn Circular M 7 POS Crimp ST Panel Mount 7 Terminal 1 Port CONN MALE RCPT 6+PE BLACK PLUG, PANEL, CRIMP, 6P+E WAY connector, plastic circ, male panel recept housing, for 6+gnd crimp pin cont, black Connector: circular; socket; w/o terminals; male; PIN:7; IP65,IP67 Appliance plug 6+PE, C016 10C006 000 12, Amphenol
分类
连接器解决方案圆形连接器军用圆形连接器
对参数有疑问？问 AI 助手

商业参数

零件号别名81K1425产品类别Circular DIN Connectors
标准包装数量50工厂包装数量50

合规参数

RoHSLead free / RoHS CompliantSVHC:No SVHC (20-Jun-2013)
欧盟RoHSCompliant海关税号85389099
认证机构:CSA, GERMANISCHER LLOYDS, SEV, UL, VDE认证机构标志UL Recognized/CSA/VDE
材料阻燃等级:UL94V-0

电气参数

额定电压250 V供电电压DIN
接触电阻:5mohm击穿电压:4000V
最大额定电流13 A绝缘电阻:10Mohm
连接器类型 - 电压输入w/o terminals

机械参数

颜色Black深度38
高度29重量0.021
包装方式Bulk出线方向Yes
导线线规:20AWG方向Keyed
外壳样式Plug端接方式Crimp
重量（g）14.00000触点尺寸1.6mm
触头类型6Signal/1Ground安装类型Panel Mount
释放力:30N行程角度Straight
连接器类型Receptacle for Male Contacts接触镀层Silver/Gold
紧固类型Threaded安装样式flange (2 holes), for panel mounting
封装形式:Panel Plug连接器用途Threaded
插入角度:-插入力:15N
锁定特性threaded joint, external thread本体材料:Nylon (Polyamide)
壳体材料Polyamide总长度32
包装数量5主要材料DIN
连接器 - 电缆socket端接样式Crimp
第一触头极性M连接器颜色:Black
触点数7介电材料Polyamide
位数7外壳尺寸-插件:-
安装孔直径0.866 "外壳材料及表面处理Polyamide
典型触点布局6 + 1 Ground (PE)线规或范围 - mm²:0.75mm²
第一连接器安装类型:Panel第一连接器安装特征6+PE
外径-未扩张:12.5mm

产品信息

SPG5备注Contacts Not Provided
类型Circular连接器性别RCP
系列eco mate产品特性Screw Locking
制造商全称C016 Series产品子类型Connectors
适配器系列ECOMATE (C016)单元数量1
应用细节Commercial

环境参数

密封等级IP 67插拔次数:500
NEMA 机架尺寸:IP67防护等级IP65/67 - Dust Tight, Water Resistant, Waterproof
工作温度:+125°C

文档与媒体

PDF 文档
Ecomate Circular Connectors
PDF 文档
1719186.pdf
PDF 文档
28_ecomate_052009_e.pdf

相关型号

C016 30F006 100 12

C016 30F006 100 12

Amphenol Tuchel

Circular DIN Connectors 6+PE FEM R/A BLK SODR SILVR CONTACT CONN FMLE PLUG 6+PE R/A SLD SLVR 7 Pole Male Right Angle Cable Mount Industrial & Automation Circular Connector with Female Contacts Conn Circular F 7 POS Solder RA Cable Mount 7 Terminal 1 Port connector, plastic circ, rt angle fem cable conn, 6+gnd silver plt, solder term, blk Connector: circular; plug; female; Series: ECOMATE (C016); PIN:7 Cable socket, 90° 6+PE, C016 30F006 100 12, Amphenol Amphenol Eco-Mate 系列 6 + PE路 电缆安装 直角 连接器 插座

¥176.4002
详情
TA 0500

TA 0500

amphenol

Crimping Tools For Stamped Contacts Hand Tools Hand crimp for single contacts TOOL CRIMP SHORT HANDLE crimp tool C16-3& ECOmate less dies/loc CRIMP TOOL, TA, 2.5MMSQ. tool, hand crimp, less crimp die set and contact locators, for eco/mate, c16-3 cont Crimping pliers without dies, TA 0500, Amphenol Amphenol 压接工具

¥2566.9599
详情
C016 30D006 100 10

C016 30D006 100 10

Amphenol Tuchel

Circular DIN Connectors 6+PE FEM STRT BLUE SODR SILVR CONTACT CONN FEMALE PLUG 6+PE SILVER BLU Conn Circular F 7 POS Solder ST Cable Mount 7 Terminal 1 Port SOCKET, FREE, SOLDER, 6P+E WAY CONNECTOR, CIRCULAR, RCPT, 6+PE, CABLE connector, plastic circ, str fem cable conn, 6+gnd silver plt cont, solder term, blue

¥54.3600
详情
C016 10F006 000 10

C016 10F006 000 10

Amphenol Tuchel

Circular DIN Connectors 6+PE FEM R/A BLUE CRIMP CONN PLUG 6+PE CBL SKT RA CRIMP SOCKET, FREE, 90DEG, 6P+E WAY connector, plastic circ, rt angle fem cable housing, for 6+gnd crimp contact, blue

¥63.4200
详情
TA 0002 016 0001

TA 0002 016 0001

Amphenol Tuchel

Crimpers Contact locator for TA 0000 and TA 0500 TOOL LOCATOR VN0101600041/0011 1 tool comp;contact locator for 26-20awg contacts;goes w/ta-0000-202;ta-0000-163 tool comp, contact locator for 26-20awg contacts, goes w/ta-0000-202, ta-0000-163

¥256.1628
详情

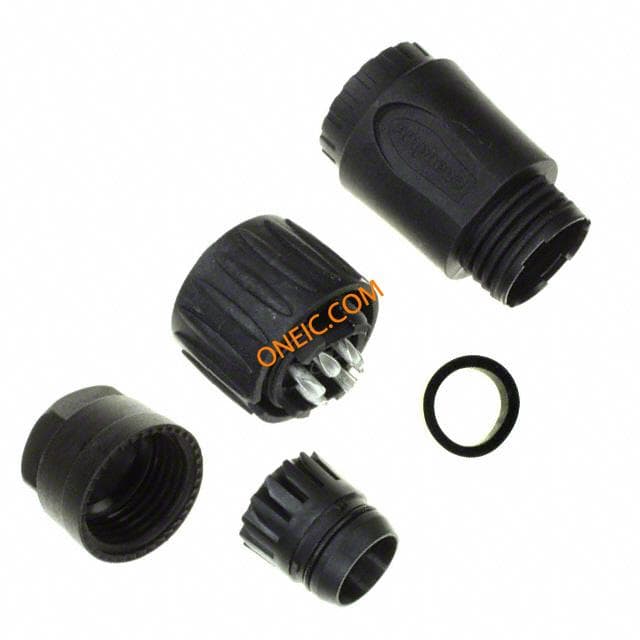

C016 30D006 200 12

C016 30D006 200 12

Amphenol Tuchel

Circular DIN Connectors 6+PE FEM STRT BLK SODR GLD CONTACT CONN FEMALE PLUG 6+PE GOLD BLACK 7 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts CIRCULAR, PLUG, 6+PE WAY, CABLE connector, plastic circ, str fem cable conn, 6+gnd gold plt cont, solder term, black cableconnfemalesold6+PE,goldpltcts Amphenol Eco-Mate 系列 7路 电缆安装 直向 连接器 插座 , 母触点

¥95.7440
详情
C016 10C006 000 12

C016 10C006 000 12

Amphenol Tuchel

Circular DIN Connectors 6+PE MALE RECEPT BLACK CRIMP Conn Circular M 7 POS Crimp ST Panel Mount 7 Terminal 1 Port CONN MALE RCPT 6+PE BLACK PLUG, PANEL, CRIMP, 6P+E WAY connector, plastic circ, male panel recept housing, for 6+gnd crimp pin cont, black Connector: circular; socket; w/o terminals; male; PIN:7; IP65,IP67 Appliance plug 6+PE, C016 10C006 000 12, Amphenol

¥14.5044
详情

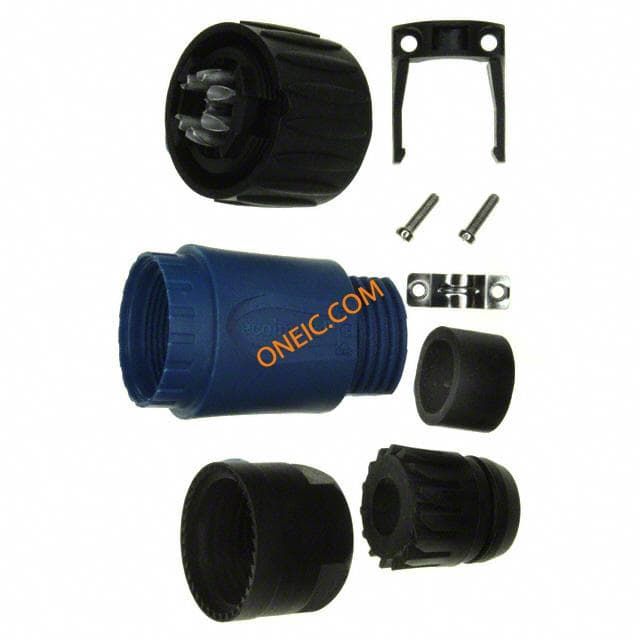

C016 30D006 210 10

C016 30D006 210 10

Amphenol Tuchel

Circular DIN Connectors 6+PE FEM STRT BLUE SODR GLD IN ST RELF CONN FEMALE PLUG 6+PE GOLD BLUE SOCKET, FREE, SOLDER, AU, 6P+E WAY connector, plastic circ, str fem cable conn, 6+gnd gold plt cont, solder term, blue

¥72.4800
详情

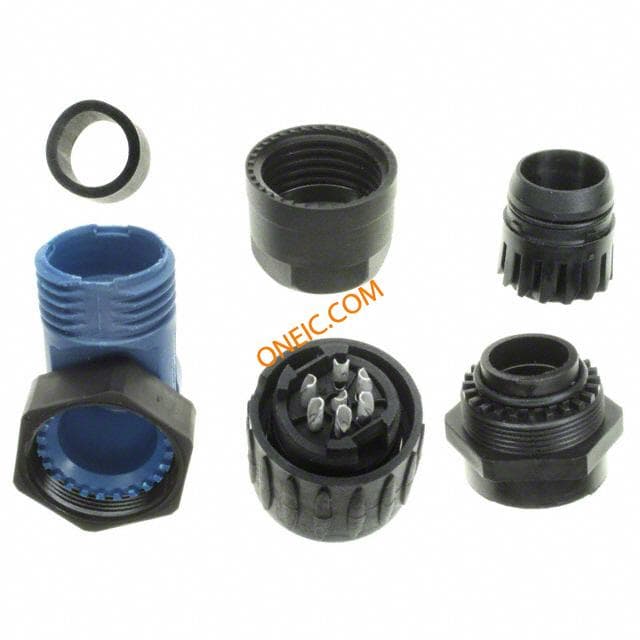

C016 30F006 100 10
