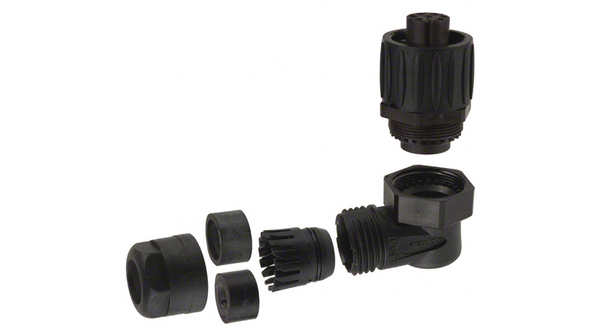

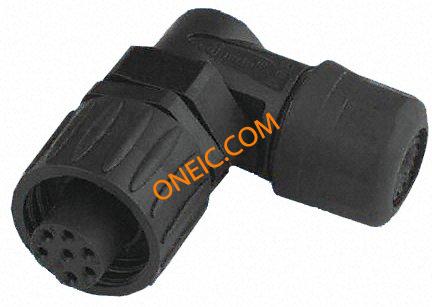

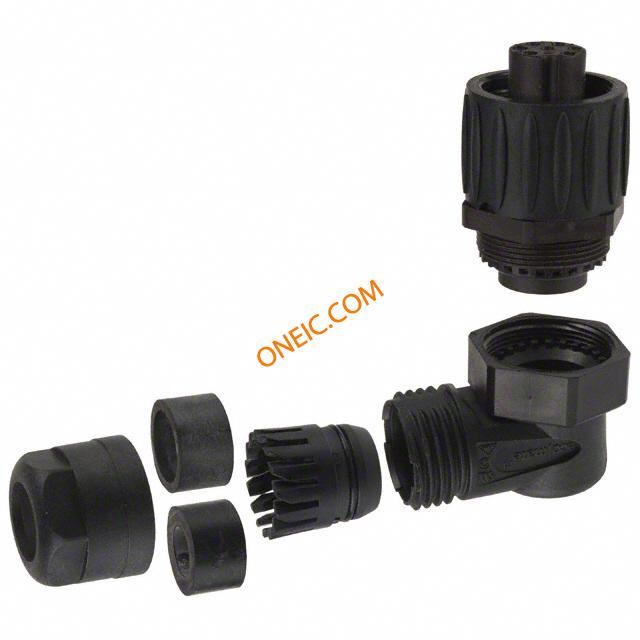

C016 30F006 100 12
| 制造商 | |
| 描述 | Circular DIN Connectors 6+PE FEM R/A BLK SODR SILVR CONTACT CONN FMLE PLUG 6+PE R/A SLD SLVR 7 Pole Male Right Angle Cable Mount Industrial & Automation Circular Connector with Female Contacts Conn Circular F 7 POS Solder RA Cable Mount 7 Terminal 1 Port connector, plastic circ, rt angle fem cable conn, 6+gnd silver plt, solder term, blk Connector: circular; plug; female; Series: ECOMATE (C016); PIN:7 Cable socket, 90° 6+PE, C016 30F006 100 12, Amphenol Amphenol Eco-Mate 系列 6 + PE路 电缆安装 直角 连接器 插座 |
| 分类 |
商业参数
| 零件号别名 | 81K1496 | 产品类别 | Circular DIN Connectors |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 抗辐射加固 | No |
| 认证机构标志 | UL Recognized/CSA/VDE | 材料阻燃等级 | UL94-V0 |
电气参数
| 额定电压 | 250 V | 极数 | 6+PE |
| 供电电压 | DIN | 连接器阻抗 | 标准 |
| 最大额定电流 | 10 A | 额定电流 - 设备输入口 | 10 |
| 保护电压（VP）（2416） | IP 67 | ||
机械参数

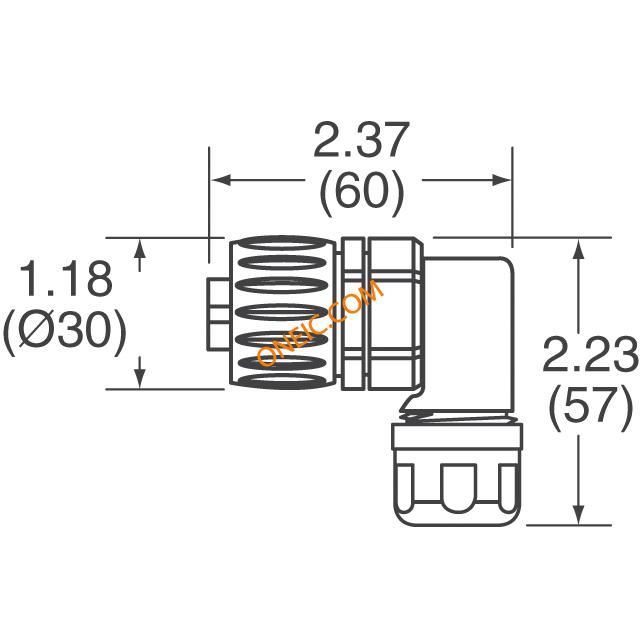

| 颜色 | Black | 高度 | 57 mm |
| 重量 | 0.04 kg | 直径 | 30 mm |
| 包装方式 | Bulk | 出线方向 | Yes |
| 导线线规 | 20 | 方向 | Keyed |
| 外壳样式 | Receptacle | 端接方式 | Solder |
| 重量（g） | 43.60000 | 触点形式 | 6Signal/1Ground |
| 触头类型 | Socket | 安装类型 | Free Hanging (In-Line), Right Angle |
| 行程角度 | Right | 电缆直径 | 6 mm to 12.5 mm |
| 电缆端类型 | 6...12.5 mm | 连接器类型 | Plug, Female Sockets |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 封装形式 | Plastic |
| 连接器样式 | angled | 连接器用途 | Threaded |
| 锁定特性 | threaded joint, internal thread | 触头材料 | silver-plated |
| 壳体材料 | Polyamide | 总长度 | 60 mm |
| 包装数量 | 50 | 主要材料 | DIN |
| 端接排数 | 焊接 | 连接器 - 电缆 | plug |
| 端接样式 | Solder | 第一触头极性 | Socket (Female) |
| 连接器颜色 | black | 触点数 | 6 |
| 介电材料 | Polyamide | 位数 | 7 |
| 第一连接器极性 | Female | 外壳材料及表面处理 | Polyamide |
| 典型触点布局 | 6 + 1 Ground (PE) | 触点材料 - 镀层 | silver plated |
| 静电放电屏蔽 | 是 | 第一连接器安装特征 | 6+PE |
产品信息
| SPG | 50 | 类型 | Circular |
| 连接器性别 | Male | 系列 | eco mate |
| 产品特性 | Cable Clamp | 主要用途 | Cable Clamp |
| 制造商全称 | C016 Series | 产品子类型 | Connectors |
| 适配器系列 | ECOMATE (C016) | 单元数量 | 1 |
| 连接方式 | 0.75 | 射频系列/标准 | C016 |
| 输出配置 | Free Hanging (In-Line), Right Angle | 应用细节 | Commercial |
环境参数
| 密封等级 | IP 67 | 防护等级 | IP 67, IP 65 |
| 工作温度 | -40°C ~ 125°C | ||
文档与媒体
相关型号
C016 30F006 100 12
Amphenol Tuchel
Circular DIN Connectors 6+PE FEM R/A BLK SODR SILVR CONTACT CONN FMLE PLUG 6+PE R/A SLD SLVR 7 Pole Male Right Angle Cable Mount Industrial & Automation Circular Connector with Female Contacts Conn Circular F 7 POS Solder RA Cable Mount 7 Terminal 1 Port connector, plastic circ, rt angle fem cable conn, 6+gnd silver plt, solder term, blk Connector: circular; plug; female; Series: ECOMATE (C016); PIN:7 Cable socket, 90° 6+PE, C016 30F006 100 12, Amphenol Amphenol Eco-Mate 系列 6 + PE路 电缆安装 直角 连接器 插座

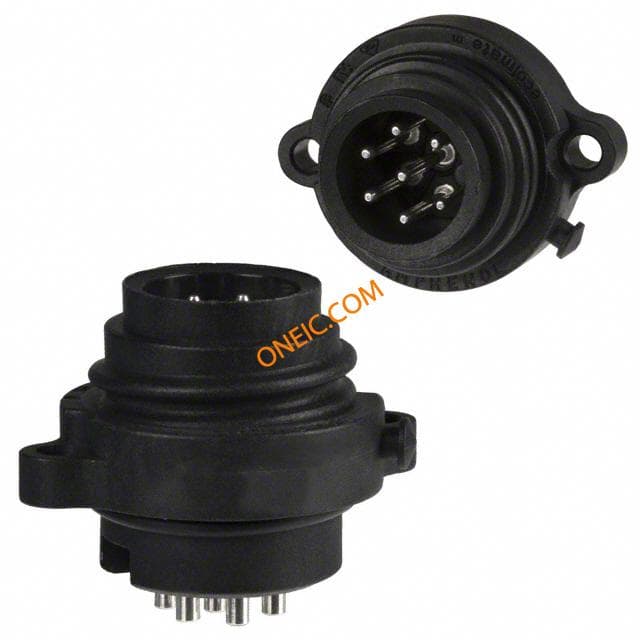

C016 30C006 100 12
amphenol
Conn Circular M 7 POS Solder ST Panel Mount 7 Terminal 1 Port 06P+PE MALE RECEPT. C16-M CONN MALE RCPT 6+PE SOLDER SILVR 7 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Circular DIN Connectors 6+PE MALE RECEPT BLK SOLDER SILVR CONTACT CIRCULAR, RECEPTACLE, 6+PE WAY, PANEL connector, plastic circ, male panel recept, 6+gnd silver plt cont, solder term, black Connector: circular; socket; male; Series: ECOMATE (C016); PIN:7 Appliance plug 6+PE, C016 30C006 100 12, Amphenol

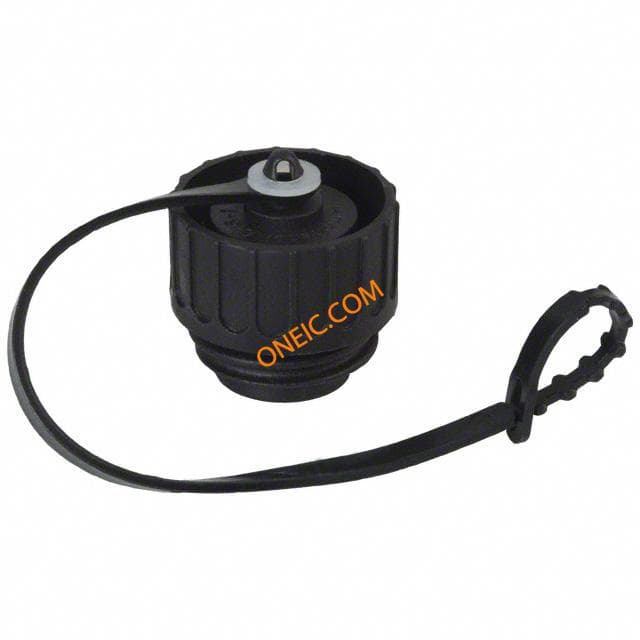

C016 00V000 010 12
Amphenol Tuchel
Circular DIN Connectors PROTECTIVE COVER FOR FEM CABLE CONNECTOR COVER FOR CABLE BOX C16-M CONN CAP FOR FEMALE PLUG EcoMateCap for Female Cable Conn Connector Accessories Protection Cover For Female Cable Connector DUST CAP, FOR FEMALE CABLE CONNECTOR connector accessory, protection cover(cap) for eco-mate female cable conn, black Sealing cap for cable socket, C016 00V000 010 12, Amphenol Amphenol Eco-Mate 系列 插头 IP65 防尘盖

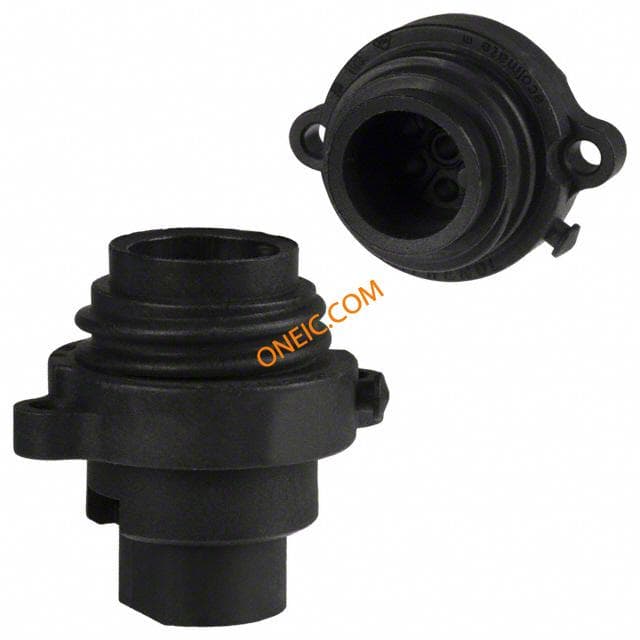

C016 10C006 000 12
Amphenol Tuchel
Circular DIN Connectors 6+PE MALE RECEPT BLACK CRIMP Conn Circular M 7 POS Crimp ST Panel Mount 7 Terminal 1 Port CONN MALE RCPT 6+PE BLACK PLUG, PANEL, CRIMP, 6P+E WAY connector, plastic circ, male panel recept housing, for 6+gnd crimp pin cont, black Connector: circular; socket; w/o terminals; male; PIN:7; IP65,IP67 Appliance plug 6+PE, C016 10C006 000 12, Amphenol

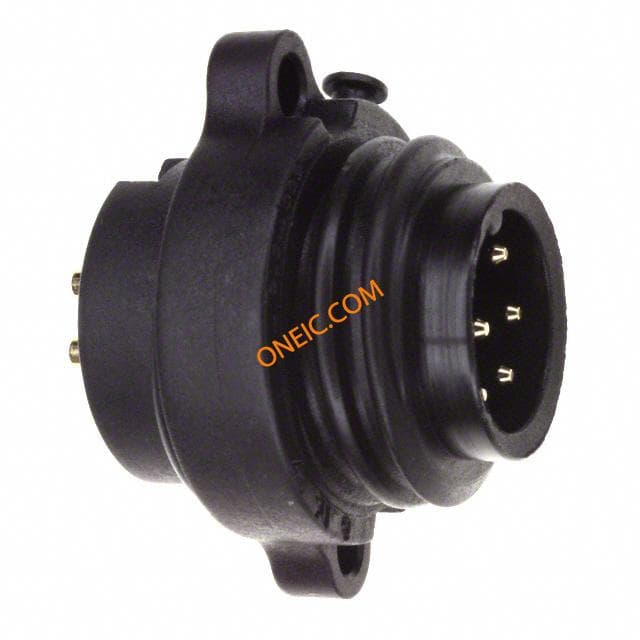

C016 30C006 200 12
Amphenol Tuchel
Circular DIN Connectors 6+PE MALE RECEPT BLK SOLDER GLD CONTACT CONN MALE RCPT 6+PE GOLD BLACK connector;plastic circ;male panel recept;6+gnd gold plt cont;solder term;black PLUG, PANEL, SOLDER, AU, 6P+E WAY connector, plastic circ, male panel recept, 6+gnd gold plt cont, solder term, black

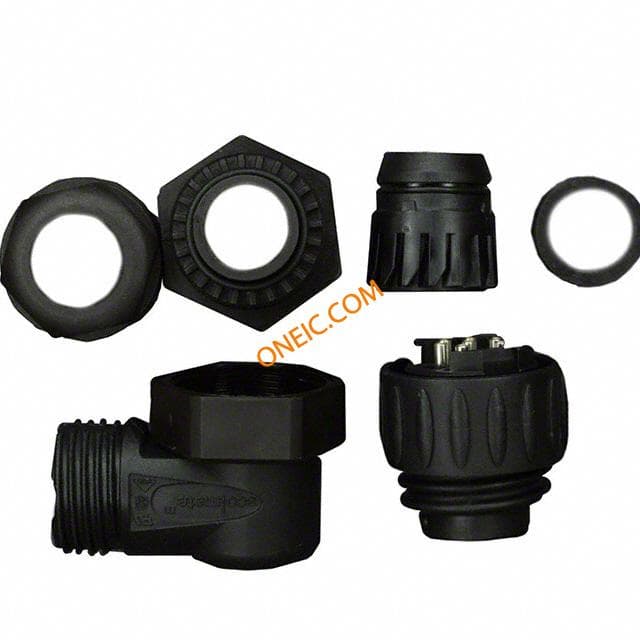

C016 30K006 100 12
