点击放大查看

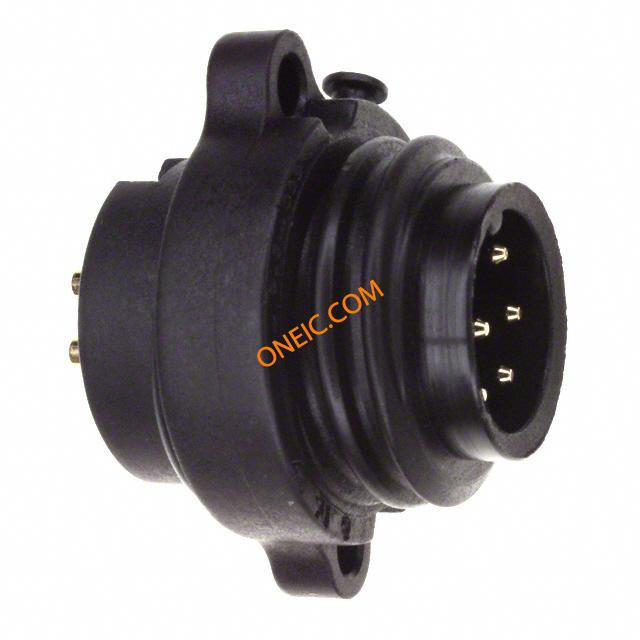

C016 30C006 200 12
| 制造商 | |
| 描述 | Circular DIN Connectors 6+PE MALE RECEPT BLK SOLDER GLD CONTACT CONN MALE RCPT 6+PE GOLD BLACK connector;plastic circ;male panel recept;6+gnd gold plt cont;solder term;black PLUG, PANEL, SOLDER, AU, 6P+E WAY connector, plastic circ, male panel recept, 6+gnd gold plt cont, solder term, black |
| 分类 |
商业参数
| 零件号别名 | 81K1486 | 产品类别 | Circular DIN Connectors |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85389099 | 认证机构 | :CSA, GERMANISCHER LLOYDS, SEV, UL, VDE |
| 认证机构标志 | UL Recognized/CSA/VDE | 材料阻燃等级 | :UL94V-0 |
电气参数
| 额定电压 | 250V | 接触电阻 | :5mohm |
| 最大额定电流 | 12A | 绝缘电阻 | :10Mohm |
机械参数
| 颜色 | Black | 重量 | 0.021 |
| 包装方式 | Bulk | 导线线规 | :20AWG |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Solder | 重量（g） | 19.00000 |
| 触头类型 | Pin | 安装类型 | Panel Mount |
| 释放力 | :30N | 外壳镀层 | Polyamide |
| 行程角度 | Straight | 连接器类型 | Receptacle, Male Pins |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 封装形式 | :Panel Plug | 连接器用途 | Threaded |
| 插入角度 | :- | 插入力 | :15N |
| 本体材料 | :Nylon (Polyamide) | 触头材料 | :- |
| 壳体材料 | Polyamide | 主要材料 | DIN |
| 端接样式 | Solder | 第一触头极性 | Pin (Male) |
| 连接器颜色 | :Black | 触点数 | 6 |
| 接触件端接 | :Solder | 介电材料 | Polyamide |
| 位数 | 7 | 外壳尺寸-插件 | :- |
| 安装孔直径 | 0.866 " | 外壳材料及表面处理 | Polyamide |
| 典型触点布局 | 6 + 1 Ground (PE) | 安装面板厚度 | :31mm |
| 外部壳体材料 | :Polyamide 6.6/PA6 | 线规或范围 - mm² | :0.75mm² |
| 第一连接器安装类型 | :Panel | 外径-未扩张 | :12.5mm |
产品信息
| 类型 | Cable Socket | 连接器性别 | :Socket |
| 系列 | :ECOMATE | 产品特性 | Screw Locking |
| 制造商全称 | C016 Series | 产品子类型 | Connectors |
| 应用细节 | Commercial | ||
环境参数
| 密封等级 | IP 67 | 插拔次数 | :500 |
| NEMA 机架尺寸 | :IP67 | 防护等级 | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| 工作温度 | -40°C ~ 125°C | ||
文档与媒体
相关型号
C016 30F006 100 12
Amphenol Tuchel
Circular DIN Connectors 6+PE FEM R/A BLK SODR SILVR CONTACT CONN FMLE PLUG 6+PE R/A SLD SLVR 7 Pole Male Right Angle Cable Mount Industrial & Automation Circular Connector with Female Contacts Conn Circular F 7 POS Solder RA Cable Mount 7 Terminal 1 Port connector, plastic circ, rt angle fem cable conn, 6+gnd silver plt, solder term, blk Connector: circular; plug; female; Series: ECOMATE (C016); PIN:7 Cable socket, 90° 6+PE, C016 30F006 100 12, Amphenol Amphenol Eco-Mate 系列 6 + PE路 电缆安装 直角 连接器 插座
C016 30D006 100 10
Amphenol Tuchel
Circular DIN Connectors 6+PE FEM STRT BLUE SODR SILVR CONTACT CONN FEMALE PLUG 6+PE SILVER BLU Conn Circular F 7 POS Solder ST Cable Mount 7 Terminal 1 Port SOCKET, FREE, SOLDER, 6P+E WAY CONNECTOR, CIRCULAR, RCPT, 6+PE, CABLE connector, plastic circ, str fem cable conn, 6+gnd silver plt cont, solder term, blue
C016 10F006 000 10
Amphenol Tuchel
Circular DIN Connectors 6+PE FEM R/A BLUE CRIMP CONN PLUG 6+PE CBL SKT RA CRIMP SOCKET, FREE, 90DEG, 6P+E WAY connector, plastic circ, rt angle fem cable housing, for 6+gnd crimp contact, blue

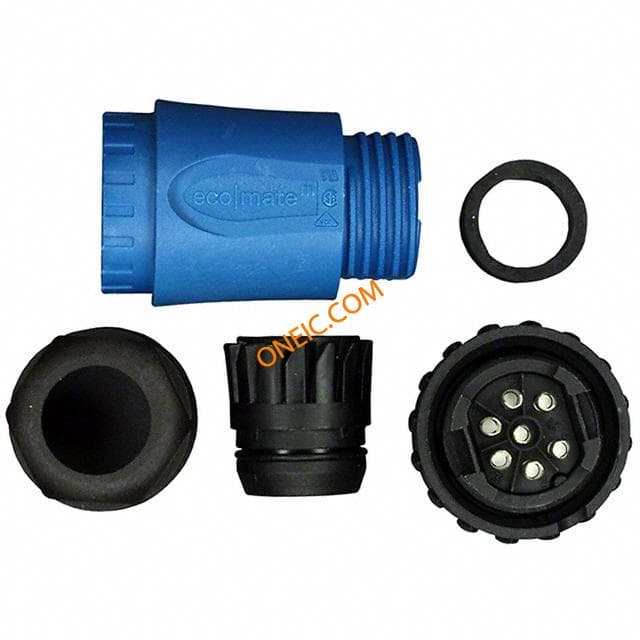

C016 30D006 200 10
Amphenol Tuchel
Circular DIN Connectors 6+PE FEM STRT BLUE SODR GLD CONTACT CONN FEMALE PLUG 6+PE GOLD BLUE SOCKET, FREE, SOLDER, AU, 6P+E WAY connector, plastic circ, str fem cable conn, 6+gnd gold plt cont, solder term, blue
C016 30D006 200 12
Amphenol Tuchel
Circular DIN Connectors 6+PE FEM STRT BLK SODR GLD CONTACT CONN FEMALE PLUG 6+PE GOLD BLACK 7 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts CIRCULAR, PLUG, 6+PE WAY, CABLE connector, plastic circ, str fem cable conn, 6+gnd gold plt cont, solder term, black cableconnfemalesold6+PE,goldpltcts Amphenol Eco-Mate 系列 7路 电缆安装 直向 连接器 插座 , 母触点

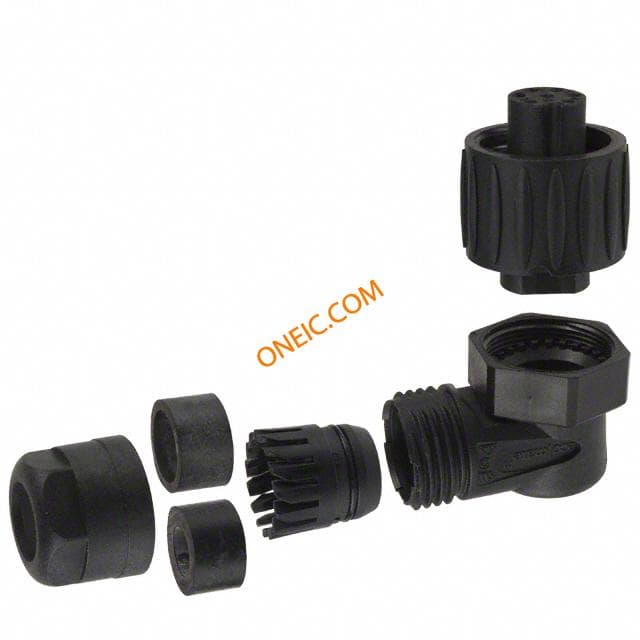

C016 10F006 000 12
Amphenol Tuchel
Circular DIN Connectors 6+PE FEM R/A BLACK CRIMP CONN FMLE PLUG 6+PE R/A BLACK 7 Pole Male Right Angle Cable Mount Industrial & Automation Circular Connector with Female Contacts CIRCULAR, RCPT, R/A, 6+PE WAY, CABLE connector, plastic circ, rt angle fem cable housing, for 6+gnd crimp contact, black Amphenol Eco-Mate 系列 6 + PE路 电缆安装 直角 连接器 插座
C016 30D006 210 10
Amphenol Tuchel
Circular DIN Connectors 6+PE FEM STRT BLUE SODR GLD IN ST RELF CONN FEMALE PLUG 6+PE GOLD BLUE SOCKET, FREE, SOLDER, AU, 6P+E WAY connector, plastic circ, str fem cable conn, 6+gnd gold plt cont, solder term, blue
C016 30C006 200 12
Amphenol Tuchel
Circular DIN Connectors 6+PE MALE RECEPT BLK SOLDER GLD CONTACT CONN MALE RCPT 6+PE GOLD BLACK connector;plastic circ;male panel recept;6+gnd gold plt cont;solder term;black PLUG, PANEL, SOLDER, AU, 6P+E WAY connector, plastic circ, male panel recept, 6+gnd gold plt cont, solder term, black

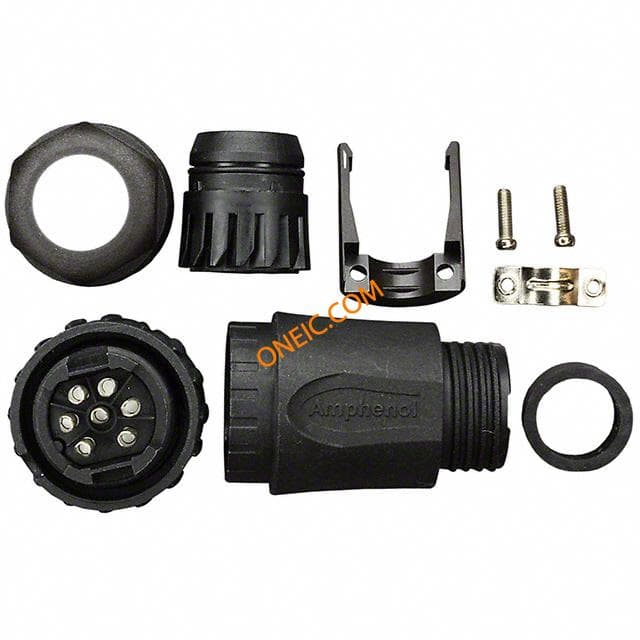

C016 30D006 210 12
