点击放大查看

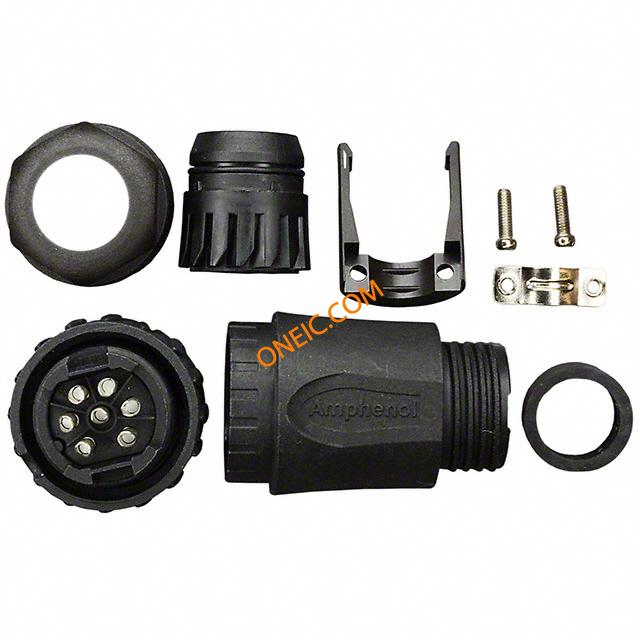

C016 30D006 210 12
| 制造商 | |
| 描述 | Circular DIN Connectors 6+PE FEM STRT BLK SODR GLD IN ST RELF CONN FEMALE PLUG 6+PE GOLD BLACK connector, plastic circ, str fem cable conn, 6+gnd gold plt cont, solder term, black Connector: circular; plug; female; Series: ECOMATE (C016); PIN:7 |
| 分类 |
商业参数
| 零件号别名 | 81K1494 | 产品类别 | Circular DIN Connectors |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 认证机构标志 | UL Recognized/CSA/VDE |
| 材料阻燃等级 | UL94-V0 | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 12A |
机械参数
| 颜色 | Black | 重量 | 0.04 kg |
| 包装方式 | Bulk | 出线方向 | Internal |
| 导线线规 | 20 | 方向 | Keyed |
| 外壳样式 | Receptacle | 端接方式 | Solder |
| 触头类型 | Socket | 安装类型 | Free Hanging (In-Line) |
| 行程角度 | Straight | 电缆直径 | 6-12.5 mm |
| 连接器类型 | Plug, Female Sockets | 接触镀层 | Gold |
| 紧固类型 | Threaded | 安装样式 | Free Hanging |
| 封装形式 | Plastic | 连接器用途 | Threaded |
| 锁定特性 | threaded joint, internal thread | 壳体材料 | Polyamide |
| 包装数量 | 5 | 主要材料 | DIN |
| 连接器 - 电缆 | plug | 端接样式 | Solder |
| 连接器颜色 | black | 触点数 | 7 |
| 介电材料 | Polyamide | 位数 | 7 |
| 外壳材料及表面处理 | Polyamide | 典型触点布局 | 6 + 1 Ground (PE) |
| 触点材料 - 镀层 | gold plated | 第一连接器安装特征 | 6+PE |
产品信息
| SPG | 5 | 类型 | Cable Socket |
| 产品特性 | Cable Clamp, Strain Relief | 制造商全称 | C016 Series |
| 产品子类型 | Connectors | 适配器系列 | ECOMATE (C016) |
| 单元数量 | 1 | 应用细节 | Commercial |
环境参数
| 密封等级 | IP 67 | 防护等级 | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| 工作温度 | -40°C ~ 125°C | ||
