点击放大查看

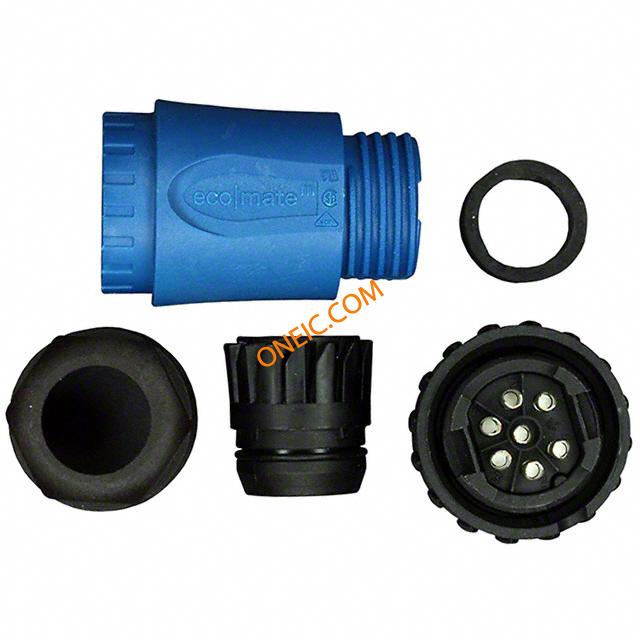

C016 30D006 200 10
| 制造商 | |
| 描述 | Circular DIN Connectors 6+PE FEM STRT BLUE SODR GLD CONTACT CONN FEMALE PLUG 6+PE GOLD BLUE SOCKET, FREE, SOLDER, AU, 6P+E WAY connector, plastic circ, str fem cable conn, 6+gnd gold plt cont, solder term, blue |
| 分类 |
商业参数
| 产品类别 | Circular DIN Connectors | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85389099 | 认证机构 | :CSA, GERMANISCHER LLOYDS, SEV, UL, VDE |
| 认证机构标志 | UL Recognized/CSA/VDE | 材料阻燃等级 | :UL94V-0 |
电气参数
| 额定电压 | 250V | 接触电阻 | :5mohm |
| 击穿电压 | :4000V | 最大额定电流 | 12A |
| 绝缘电阻 | :10Mohm | ||
机械参数
| 颜色 | Blue | 重量 | 0.041 |
| 包装方式 | Bulk | 导线线规 | :20AWG |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Solder | 触头类型 | Socket |
| 安装类型 | Free Hanging (In-Line) | 释放力 | :30N |
| 行程角度 | Straight | 电缆直径 | 6-12.5 mm |
| 连接器类型 | Plug, Female Sockets | 接触镀层 | Gold |
| 紧固类型 | Threaded | 安装样式 | Free Hanging |
| 封装形式 | :Straight | 连接器用途 | Threaded |
| 插入角度 | :- | 插入力 | :15N |
| 本体材料 | :Nylon (Polyamide) | 触头材料 | :- |
| 壳体材料 | Polyamide | 主要材料 | DIN |
| 端接样式 | Solder | 第一触头极性 | :Socket |
| 连接器颜色 | :Blue / Black | 触点数 | :6 |
| 接触件端接 | :Solder | 介电材料 | Polyamide |
| 位数 | 7 | 外壳尺寸-插件 | :- |
| 外壳材料及表面处理 | Polyamide | 典型触点布局 | 6 + 1 Ground (PE) |
| 外部壳体材料 | :Polyamide 6.6/PA6 | 线规或范围 - mm² | :0.75mm² |
| 第一连接器安装类型 | :Cable | 外径-未扩张 | :12.5mm |
产品信息
| 类型 | Cable Socket | 连接器性别 | :Socket |
| 系列 | :ECOMATE | 产品特性 | Cable Clamp |
| 制造商全称 | C016 Series | 产品子类型 | Connectors |
| 应用细节 | Commercial | ||
环境参数
| 密封等级 | IP 67 | 插拔次数 | :500 |
| NEMA 机架尺寸 | :IP67 | 防护等级 | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| 工作温度 | -40°C ~ 125°C | ||
