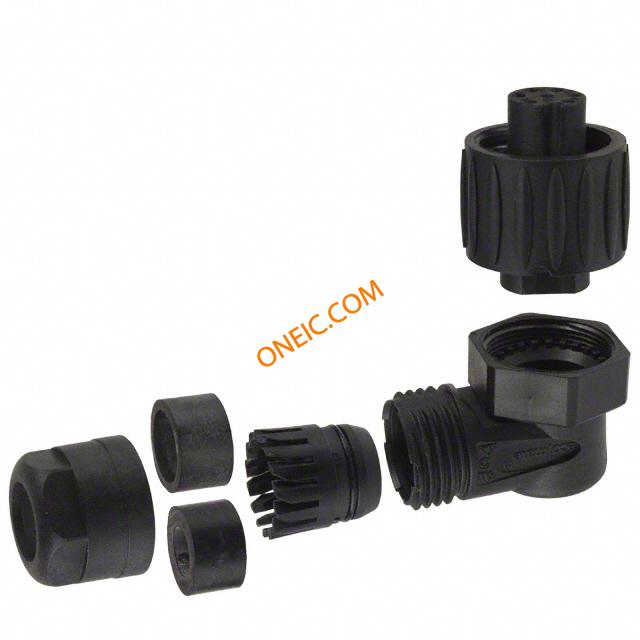

C016 10F006 000 12
| 制造商 | |
| 描述 | Circular DIN Connectors 6+PE FEM R/A BLACK CRIMP CONN FMLE PLUG 6+PE R/A BLACK 7 Pole Male Right Angle Cable Mount Industrial & Automation Circular Connector with Female Contacts CIRCULAR, RCPT, R/A, 6+PE WAY, CABLE connector, plastic circ, rt angle fem cable housing, for 6+gnd crimp contact, black Amphenol Eco-Mate 系列 6 + PE路 电缆安装 直角 连接器 插座 |
| 分类 |
商业参数
| 零件号别名 | 81K1440 | 产品类别 | Circular DIN Connectors |
| 标准包装数量 | 250 | 工厂包装数量 | 50 |
合规参数
| RoHS | Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 海关税号 | 85369010 | 认证机构标志 | UL Recognized/CSA/VDE |
| 材料阻燃等级 | UL94-V0 | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 13 A |
机械参数
| 颜色 | Black | 重量 | 0.3 |
| 包装方式 | Bulk | 出线方向 | Yes |
| 导线线规 | 26-16 | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Crimp |
| 触点尺寸 | 1.6mm | 触头类型 | Crimp |
| 安装类型 | Free Hanging (In-Line), Right Angle | 外壳镀层 | Polyamide |
| 行程角度 | Right | 电缆直径 | 6 mm to 12.5 mm |
| 连接器类型 | Plug for Female Contacts | 接触镀层 | Gold, Silver |
| 紧固类型 | Threaded | 封装形式 | Plastic |
| 连接器用途 | Threaded | 插入角度 | :- |
| 本体材料 | :Nylon 6.6 (Polyamide 6.6) | 壳体材料 | Polyamide |
| 主要材料 | DIN | 端接样式 | Crimp |
| 第一触头极性 | Female | 触点数 | 7 |
| 介电材料 | Polyamide | 位数 | 7 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Polyamide |
| 典型触点布局 | 6 + 1 Ground (PE) | 第一连接器安装类型 | :Cable |
产品信息
| 备注 | Contacts Not Provided | 类型 | Cable Socket |
| 连接器性别 | Male | 系列 | :Ecomate |
| 产品特性 | Cable Clamp | 制造商全称 | C016 Series |
| 产品子类型 | Connectors | 应用细节 | Commercial |
环境参数
| 密封等级 | IP 67 | 防护等级 | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| 工作温度 | +125°C | ||
