点击放大查看

VN02 016 0002 1

制造商	Amphenol Corporation
描述	Heavy Duty Power Connectors STAMPED FEM CONTACT 20-16 AWG CONTACT SKT CRIMP 16-20AWG SILVR Circular Connector Contact, Crimp CRIMP SOCKET, 0.5-1.5 CIRCULAR CONTACT SOCKET, 20-16AWG, CRIMP connector comp, stamped socket cont, silver plated, for 0.50-1.50mm2(20-16awg)wire Contact; female; 0.5÷1.5mm2; C16-1,C16-3; silver plated; crimped Crimp contact Stamped, Female, VN02 016 0002 1, Amphenol Amphenol Eco-Mate 系列母压接端接圆形连接器触芯, 使用于C16-3 系列塑料圆形连接器, 20 → 16 AWG 线规格
分类	连接器解决方案接触件接触件（通用）

对参数有疑问？问 AI 助手

商业参数

产品类别	Heavy Duty Power Connectors	标准包装数量	100
工厂包装数量	5

合规参数

RoHS	Compliant	SVHC	:No SVHC (20-Jun-2013)
标准	UL Recognized, CSA Certified, SEV Approved	海关税号	85369010

电气参数

接触电阻

5 Milliohms (Max,)

机械参数

长度	25mm	重量	0.006
镀层	Silver	材料（通用）	Tin Bronze
包装方式	Bulk	导线线规	16-20 AWG
端接方式	Crimp	重量（g）	42.40000
触点尺寸	:1.6	触头类型	Stamped Single
安装类型	crimped	插针或插孔	Socket
连接器类型	:Contact, Crimp	接触镀层	Silver
封装形式	in bulk	冷却的封装	1
插入角度	:-	插入力	Female
本体材料	:-	触头材料	Bronze
包装数量	100pcs.	连接器 - 电缆	contact
端接样式	Crimp	第一触头极性	:Socket
外径	:1.6mm	接触件端接	Crimp
外壳尺寸-插件	:-	线规或范围 - AWG	20-16
线规或范围 - mm²	:1.5mm²	触点材料 - 镀层	silver plated
外径-未扩张	:2.8mm

产品信息

类型	Stamped	连接器性别	:Receptacle
系列	Heavymate	产品子类型	Contacts
适配器系列	C16-1, C16-3	单元数量	1
适用产品/相关产品	:C16-3 Series Plastic Circular Connectors

环境参数

工作温度

+125°C

文档与媒体

PDF 文档

Ecomate Circular Connectors

PDF 文档

28_ecomate_052009_e.pdf

PDF 文档

57333.pdf

PDF 文档

30_c146.pdf

相关型号

VN01 016 0004 1

Amphenol Tuchel

Heavy Duty Power Connectors Crimp male 1.6mm AWG 16-20 100/pk CONTACT PIN CRIMP 16-20AWG SILVR C 16-1 Series Male Circular Connector Contact, Crimp,Wire size 20 to 16AWG CIRCULAR CONTACT, PIN, 20-16AWG, CRIMP CRIMP PIN, 0.5-1.5 connector comp, stamped pin contact, silver plated, for 0.50-1.50mm2(20-16awg)wire Crimp contact Stamped, Female, VN01 016 0004 1, Amphenol Amphenol Eco-Mate 系列公压接端接圆形连接器触芯, 使用于Ecomate 系列圆形连接器, 20 → 16 AWG 线规格

¥246.5000

详情

TA 0100 146

amphenol

Crimping Tool For Single Contacts Crimpers HAND CRIMPING TOOL HAND CRIMPING TOOL CRIMP TOOL, RATCHET Crimping pliers, complete, TA 0100 146, Amphenol

¥3518.3921

详情

C016 10F006 000 10

Amphenol Tuchel

Circular DIN Connectors 6+PE FEM R/A BLUE CRIMP CONN PLUG 6+PE CBL SKT RA CRIMP SOCKET, FREE, 90DEG, 6P+E WAY connector, plastic circ, rt angle fem cable housing, for 6+gnd crimp contact, blue

¥63.4200

详情

TA 0000 163

Amphenol Tuchel

Hand Tools CRIMP DIE FOR TA000 TOOL DIE FOR 16-20 AWG CONTACTS Crimp die set for stamped cts, 20-16 awg CRIMP DIE SET, TA, 16-20AWG tool component, crimp die set, for stamped contacts, for 20-16 awg wire DIESET,STPDCTS,20-16AWG Amphenol TA 系列压接工具模具 , 20 → 16 AWG 线规格, Open Crimp Barrel

¥1534.7900

详情

TA 0002 146 0001

Amphenol Tuchel

Crimpers CRIMP LOCATOR 20-16 AWG TOOL LOCATOR FOR VN02 016 0002 1 Locator for 20-16awg contacts(TA-0000) LOCATOR, TA, 16-20AWG tool component, contact locator for 20-16awg contacts, goes w/ta-0000-163 die set Amphenol TA 系列压接工具定位器

¥268.3688

详情

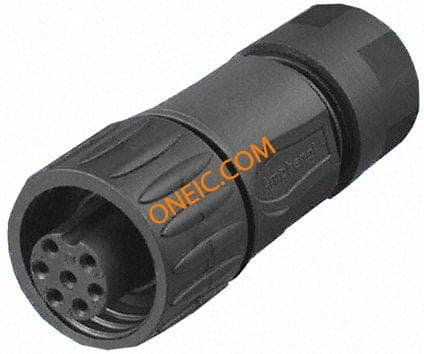

C016 10D006 010 12
