VN01 016 0004 1
| 制造商 | |
| 描述 | Heavy Duty Power Connectors Crimp male 1.6mm AWG 16-20 100/pk CONTACT PIN CRIMP 16-20AWG SILVR C 16-1 Series Male Circular Connector Contact, Crimp,Wire size 20 to 16AWG CIRCULAR CONTACT, PIN, 20-16AWG, CRIMP CRIMP PIN, 0.5-1.5 connector comp, stamped pin contact, silver plated, for 0.50-1.50mm2(20-16awg)wire Crimp contact Stamped, Female, VN01 016 0004 1, Amphenol Amphenol Eco-Mate 系列 公 压接端接 圆形 连接器 触芯, 使用于Ecomate 系列圆形连接器, 20 → 16 AWG 线规格 |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85366910 | ||
电气参数
| 接触电阻 | 5mΩ | ||
机械参数
| 尺寸 | 1.6mm | 重量 | 0.000001 |
| 包装方式 | Bulk | 导线线规 | 16-20 AWG |
| 端接方式 | Crimp | 重量（g） | 40.00000 |
| 触点尺寸 | :1.5mm² | 安装类型 | Cable Mount |
| 插针或插孔 | Pin | 连接器类型 | :Contact, Crimp |
| 接触镀层 | Silver | 插入角度 | :- |
| 插入力 | Male | 本体材料 | :- |
| 触头材料 | Brass | 端接样式 | Crimp |
| 第一触头极性 | :Pin | 连接器颜色 | :Silver |
| 外径 | :1.6mm | 触点数 | 1 |
| 接触件端接 | Crimp | 外壳尺寸-插件 | :- |
| 线规或范围 - AWG | 20-16 | 线规或范围 - mm² | :1.5mm² |
| 第一连接器安装类型 | :- | 外径-未扩张 | :2.8mm |
产品信息
| 类型 | Stamped | 连接器性别 | Male |
| 系列 | C146 | 产品子类型 | Contacts |
| 适用产品/相关产品 | :ecomate Circular Connectors | ||
文档与媒体
相关型号
TA 0100 146
amphenol
Crimping Tool For Single Contacts Crimpers HAND CRIMPING TOOL HAND CRIMPING TOOL CRIMP TOOL, RATCHET Crimping pliers, complete, TA 0100 146, Amphenol
C016 10K006 000 10
Amphenol Tuchel
Circular DIN Connectors 6+PE MALE R/A BLUE CRIMP CONN PLUG 6+PE CBL PIN RA CRIMP PLUG, FREE, 90DEG, 6P+E WAY connector, plastic circ, rt angle male cable housing, for 6+gnd crimp pin cont, blue
C016 10H006 000 10
Amphenol Tuchel
Circular DIN Connectors 6+PE MALE STRAIGHT BLUE CRIMP CONN PLUG 6+PE CABLE PIN CRIMP PLUG, FREE, CRIMP, 6P+E WAY connector, plastic circ, str male cable housing, for 6+gnd crimp pin cont, blue
C016 10H006 010 10
Amphenol Tuchel
Circular DIN Connectors 6+PE MALE STRT BLUE CRIMP INT STR REL CONN PLUG 6+PE CABLE PIN CRIMP PLUG, FREE, CRIMP, 6P+E WAY connector, plastic circ, str male cable housing, for 6+gnd crimp pin cont, blue Connector: circular; plug; straight, w/o terminals; male; PIN:7
TA 0000 163
Amphenol Tuchel
Hand Tools CRIMP DIE FOR TA000 TOOL DIE FOR 16-20 AWG CONTACTS Crimp die set for stamped cts, 20-16 awg CRIMP DIE SET, TA, 16-20AWG tool component, crimp die set, for stamped contacts, for 20-16 awg wire DIESET,STPDCTS,20-16AWG Amphenol TA 系列 压接工具模具 , 20 → 16 AWG 线规格, Open Crimp Barrel
TA 0002 016 0001
Amphenol Tuchel
Crimpers Contact locator for TA 0000 and TA 0500 TOOL LOCATOR VN0101600041/0011 1 tool comp;contact locator for 26-20awg contacts;goes w/ta-0000-202;ta-0000-163 tool comp, contact locator for 26-20awg contacts, goes w/ta-0000-202, ta-0000-163

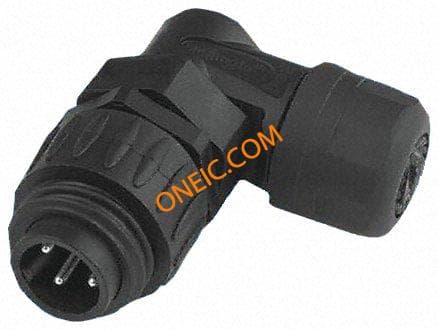

C016 10K006 000 12
Amphenol Tuchel
Circular DIN Connectors 6+PE MALE R/A BLACK CRIMP CONN PLUG 6+PE CBL PIN RA CRIMP 7 Pole Male Right Angle Cable Mount Industrial & Automation Circular Connector with Male Contacts CIRCULAR, PLUG, R/A, 6+PE WAY, CABLE connector, plastic circ, rt angle male cable housing, for 6+gnd crimp pin cont, blk R/A,MALE,6+PEBLACKB/A Amphenol Eco-Mate 系列 6 + PE路 电缆安装 直角 连接器 插头
C016 10C006 000 12
Amphenol Tuchel
Circular DIN Connectors 6+PE MALE RECEPT BLACK CRIMP Conn Circular M 7 POS Crimp ST Panel Mount 7 Terminal 1 Port CONN MALE RCPT 6+PE BLACK PLUG, PANEL, CRIMP, 6P+E WAY connector, plastic circ, male panel recept housing, for 6+gnd crimp pin cont, black Connector: circular; socket; w/o terminals; male; PIN:7; IP65,IP67 Appliance plug 6+PE, C016 10C006 000 12, Amphenol

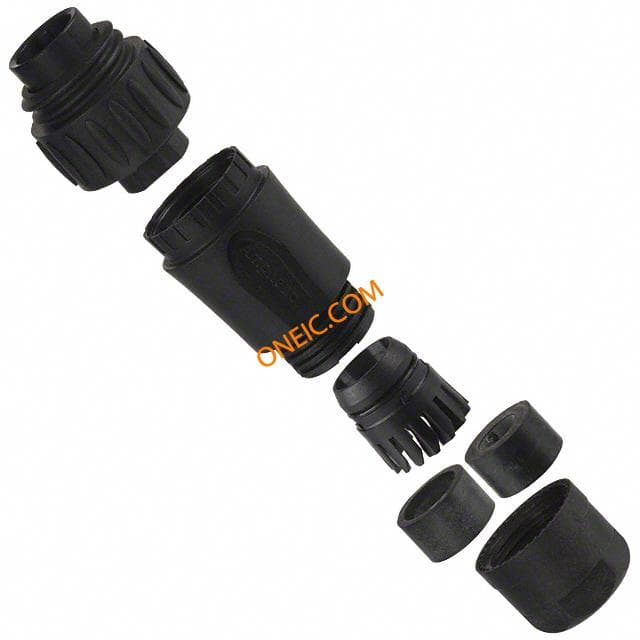

C016 10H006 000 12
