点击放大查看
C016 10K006 000 10
| 制造商 | |
| 描述 | Circular DIN Connectors 6+PE MALE R/A BLUE CRIMP CONN PLUG 6+PE CBL PIN RA CRIMP PLUG, FREE, 90DEG, 6P+E WAY connector, plastic circ, rt angle male cable housing, for 6+gnd crimp pin cont, blue |
| 分类 |
商业参数
| 其他名称 | C01610K00600010 | 产品类别 | Circular DIN Connectors |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85389099 | 认证机构 | :CSA, GERMANISCHER LLOYDS, SEV, UL, VDE |
| 认证机构标志 | UL Recognized/CSA/VDE | 材料阻燃等级 | :UL94V-0 |
电气参数
| 额定电压 | 250 V | 接触电阻 | :5mohm |
| 击穿电压 | :4000V | 最大额定电流 | :13A |
| 绝缘电阻 | :10Mohm | ||
机械参数
| 颜色 | Blue | 重量 | 0.051 |
| 包装方式 | Bulk | 导线线规 | :0.14mm² |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Crimp | 重量（g） | 41.20000 |
| 触点尺寸 | 1.6mm | 触头类型 | Crimp |
| 安装类型 | Free Hanging (In-Line), Right Angle | 释放力 | :30N |
| 行程角度 | Right | 电缆直径 | 6-12.5 mm |
| 连接器类型 | Plug for Male Contacts | 接触镀层 | Gold over Silver |
| 紧固类型 | Threaded | 封装形式 | :Right Angle |
| 连接器用途 | Threaded | 插入角度 | :- |
| 插入力 | :15N | 本体材料 | :Nylon (Polyamide) |
| 壳体材料 | Polyamide | 主要材料 | DIN |
| 第一触头极性 | :Pin | 连接器颜色 | :Blue / Black |
| 介电材料 | Polyamide | 位数 | 7 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Polyamide |
| 典型触点布局 | 6 + 1 Ground (PE) | 线规或范围 - AWG | :26AWG |
| 线规或范围 - mm² | :1.5mm² | 第一连接器安装类型 | :Cable |
| 外径-未扩张 | :12.5mm | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Cable Plug |
| 连接器性别 | :Plug | 系列 | :ECOMATE |
| 产品特性 | Cable Clamp | 制造商全称 | C016 Series |
| 产品子类型 | Connectors | 应用细节 | Commercial |
环境参数
| 密封等级 | IP 67 | 插拔次数 | :500 |
| NEMA 机架尺寸 | :IP67 | 防护等级 | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| 工作温度 | :+125°C | ||
文档与媒体
相关型号
C016 30G006 200 12
Amphenol Tuchel
Circular DIN Connectors 6+PE FEM RECEPT BLK SOLDER GLD CONTACT CONN FEMALE RCPT 6+PE GOLD BLACK SOCKET, PANEL, SOLDER, AU, 6P+E WAY CIRCULAR CONNECTOR RECEPTACLE 6POS PANEL connector, plastic circ, female panel recept, 6+gnd gold pltd cont, solder term, blk
C016 10F006 000 10
Amphenol Tuchel
Circular DIN Connectors 6+PE FEM R/A BLUE CRIMP CONN PLUG 6+PE CBL SKT RA CRIMP SOCKET, FREE, 90DEG, 6P+E WAY connector, plastic circ, rt angle fem cable housing, for 6+gnd crimp contact, blue

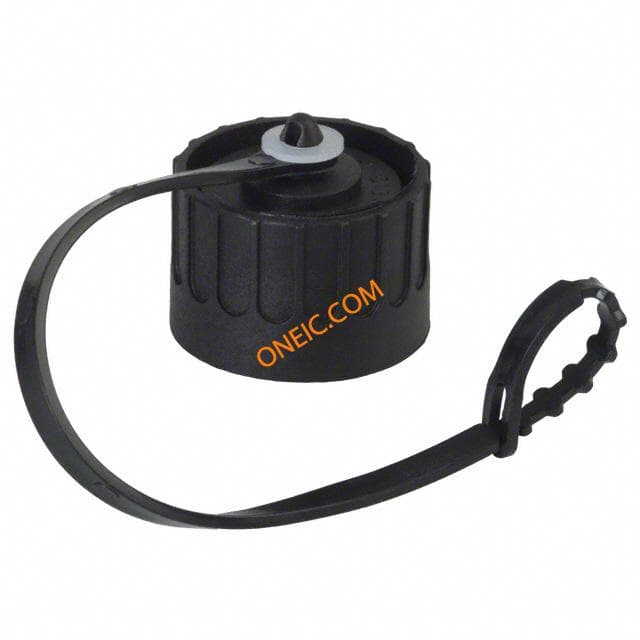

C016 00U000 010 12
