点击放大查看

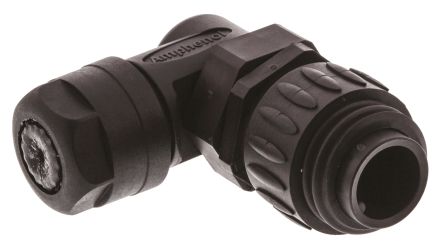

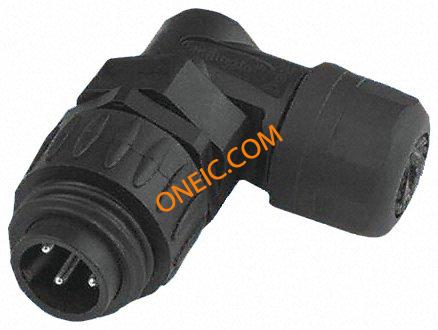

C016 10K006 000 12

制造商	Amphenol Corporation
描述	Circular DIN Connectors 6+PE MALE R/A BLACK CRIMP CONN PLUG 6+PE CBL PIN RA CRIMP 7 Pole Male Right Angle Cable Mount Industrial & Automation Circular Connector with Male Contacts CIRCULAR, PLUG, R/A, 6+PE WAY, CABLE connector, plastic circ, rt angle male cable housing, for 6+gnd crimp pin cont, blk R/A,MALE,6+PEBLACKB/A Amphenol Eco-Mate 系列 6 + PE路电缆安装直角连接器插头
分类	连接器解决方案圆形连接器工业圆形连接器（扩展）

对参数有疑问？问 AI 助手

商业参数

其他名称	C01610K00600012	零件号别名	81K1457
产品类别	Circular DIN Connectors	标准包装数量	50
工厂包装数量	50

合规参数

RoHS	Compliant	SVHC	:No SVHC (16-Dec-2013)
海关税号	85369010	认证机构标志	UL Recognized/CSA/VDE
材料阻燃等级	UL94-V0

电气参数

额定电压

250 V

最大额定电流

13 A

机械参数

颜色	Black	重量	0.07
包装方式	Bulk	出线方向	Yes
导线线规	26-16	方向	Keyed
外壳样式	Plug	端接方式	Crimp
重量（g）	40.80000	触点尺寸	1.6mm
触头类型	Crimp	安装类型	Free Hanging (In-Line), Right Angle
行程角度	Right	电缆直径	6-12.5 mm
连接器类型	Plug for Male Contacts	接触镀层	Gold, Silver
紧固类型	Threaded	封装形式	Plastic
连接器用途	Threaded	插入角度	:-
本体材料	:Nylon 6.6 (Polyamide 6.6)	壳体材料	Polyamide
主要材料	DIN	第一触头极性	Male
触点数	7	介电材料	Polyamide
位数	7	外壳尺寸-插件	:-
外壳材料及表面处理	Polyamide	典型触点布局	6 + 1 Ground (PE)
第一连接器安装类型	:Cable

产品信息

备注	Contacts Not Provided	类型	Cable Plug
连接器性别	Male	系列	:Ecomate
产品特性	Cable Clamp	制造商全称	C016 Series
产品子类型	Connectors	应用细节	Commercial

环境参数

密封等级	IP 67	防护等级	IP65/67 - Dust Tight, Water Resistant, Waterproof
工作温度	+125°C

文档与媒体

PDF 文档

C 16-3 Series Catalog

PDF 文档

28_ecomate_052009_e.pdf

PDF 文档

1726604.pdf
