点击放大查看

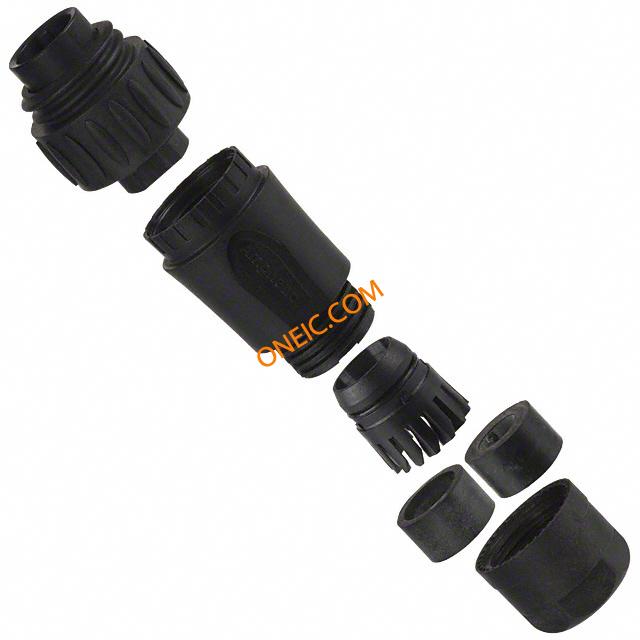

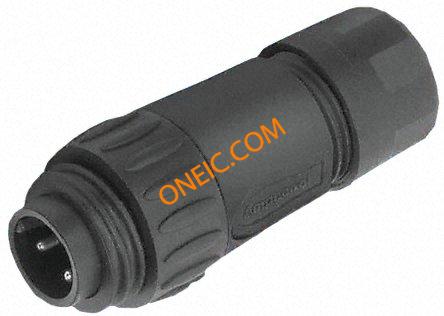

C016 10H006 000 12
| 制造商 | |
| 描述 | Circular DIN Connectors 6+PE MALE STRAIGHT BLACK CRIMP CONN MALE PLUG 6+PE BLACK 7 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts CONNECTOR, CIRCULAR, PLUG, 6+PE, CABLE connector, plastic circ, str male cable housing, for 6+gnd crimp pin contact, black Connector: circular; plug; w/o terminals; male; PIN:7; IP65,IP67 Amphenol Eco-Mate 系列 7路 电缆安装 直向 连接器 插头 , 公触点 06P+PE CABLE CON CRIMP CONTACT |
| 分类 |
商业参数
| 产品类别 | Circular DIN Connectors | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 认证机构标志 | UL Recognized/CSA/VDE | 材料阻燃等级 | UL94-V0 |
电气参数
| 额定电压 | 250 V | 供电电压 | DIN |
| 最大额定电流 | 13 A | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Black | 重量 | 0 |
| 包装方式 | Bulk | 出线方向 | Yes |
| 导线线规 | 26-16 | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Crimp |
| 触点尺寸 | 1.6mm | 触头类型 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 行程角度 | Straight |
| 电缆直径 | 6-12.5 mm | 连接器类型 | Plug for Male Contacts |
| 接触镀层 | Gold, Silver | 紧固类型 | Threaded |
| 安装样式 | Wire | 封装形式 | Plastic |
| 连接器用途 | Threaded | 插入角度 | :- |
| 锁定特性 | threaded joint, external thread | 本体材料 | :Nylon 6.6 (Polyamide 6.6) |
| 壳体材料 | Polyamide | 包装数量 | 3 |
| 主要材料 | DIN | 连接器 - 电缆 | plug |
| 端接样式 | Crimp | 第一触头极性 | Male |
| 连接器颜色 | black | 触点数 | 7 |
| 介电材料 | Polyamide | 位数 | 7 |
| 外壳材料及表面处理 | Polyamide | 典型触点布局 | 6 + 1 Ground (PE) |
| 第一连接器安装类型 | :Cable | 第一连接器安装特征 | 6+PE |
产品信息
| SPG | 3 | 备注 | Contacts Not Provided |
| 类型 | Cable Plug | 连接器性别 | Male |
| 系列 | C016 | 产品特性 | Cable Clamp |
| 制造商全称 | C016 Series | 产品子类型 | Connectors |
| 适配器系列 | ECOMATE (C016) | 单元数量 | 1 |
| 射频系列/标准 | C016 | 应用细节 | Commercial |
环境参数
| 密封等级 | IP 67 | 防护等级 | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| 工作温度 | +125°C | ||
