点击放大查看

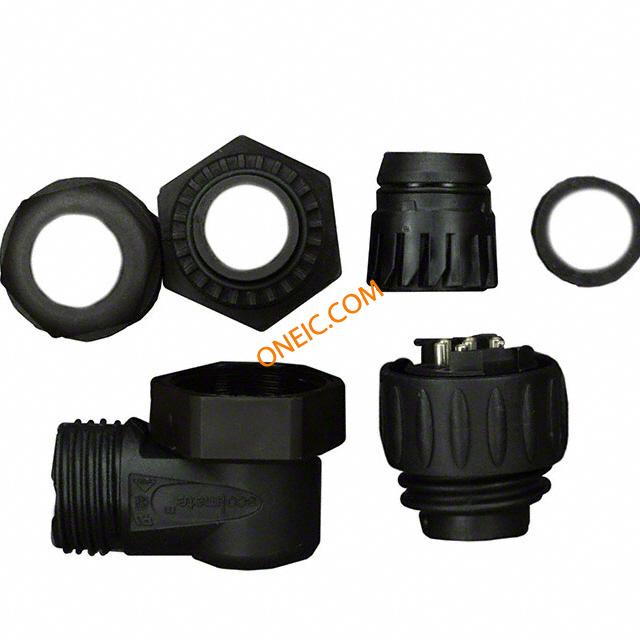

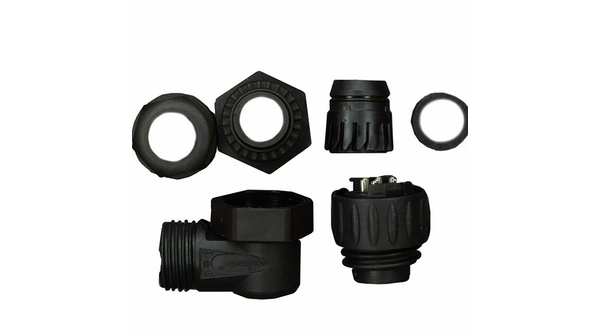

C016 30K006 100 12
| 制造商 | |
| 描述 | Circular DIN Connectors 6+PE MALE R/A BLK SODR SILVR CONTACT CONN MALE PLUG 6+PE R/A SLV BLK connector;plastic circ;rt angle male cable conn;6+gnd silver plt;solder term;blk CIRCULAR CONNECTOR, PLUG, 6POS, CABLE connector, plastic circ, rt angle male cable conn, 6+gnd silver plt, solder term, blk Cable connector, 90° 6+PE, C016 30K006 100 12, Amphenol |
| 分类 |
商业参数
| 零件号别名 | 81K1508 | 产品类别 | Circular DIN Connectors |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 认证机构标志 | UL Recognized/CSA/VDE | 材料阻燃等级 | UL94-V0 |
电气参数
| 额定电压 | 250V | 供电电压 | DIN |
| 最大额定电流 | 12A | ||
机械参数
| 颜色 | Black | 重量 | 0.045 |
| 包装方式 | Bulk | 导线线规 | 20 |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Solder | 触头类型 | Pin |
| 安装类型 | Free Hanging (In-Line), Right Angle | 行程角度 | Right |
| 电缆直径 | 6 mm to 12.5 mm | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 封装形式 | Plastic |
| 连接器用途 | Threaded | 本体材料 | :Nylon (Polyamide) |
| 壳体材料 | Polyamide | 主要材料 | DIN |
| 端接样式 | Solder | 第一触头极性 | Pin (Male) |
| 触点数 | 6 | 介电材料 | Polyamide |
| 位数 | 7 | 外壳尺寸-插件 | :- |
| 外壳材料及表面处理 | Polyamide | 典型触点布局 | 6 + 1 Ground (PE) |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 类型 | Cable Plug | 连接器性别 | :Plug |
| 系列 | eco mate | 产品特性 | Cable Clamp |
| 制造商全称 | C016 Series | 产品子类型 | Connectors |
| 应用细节 | Commercial | ||
环境参数
| 密封等级 | IP 67 | 防护等级 | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| 工作温度 | -40°C ~ 125°C | ||
