点击放大查看

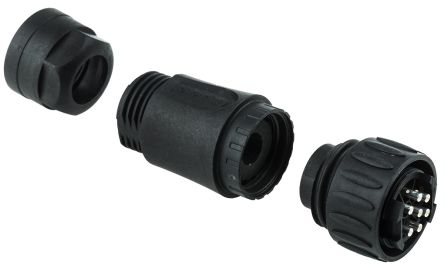

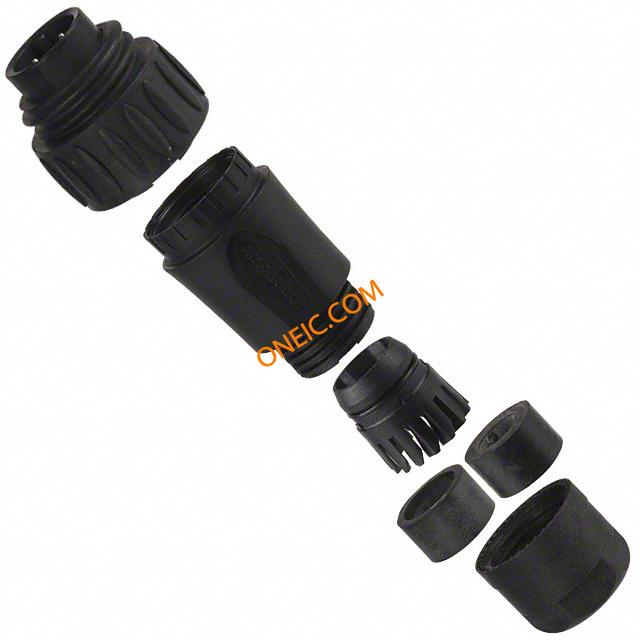

C016 30H006 100 12

制造商	Amphenol Corporation
描述	Circular DIN Connectors 6+PE MALE STRT BLK SOLDER SILVR CONTACT CONN MALE PLUG 6+PE SOLDR SILVR 7 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts CIRCULAR CONNECTOR, PLUG, 6+PE, CABLE connector, plastic circ, str male cable conn, 6+gnd silver plt cont, solder term, blk Amphenol Eco-Mate 系列 6 + PE路电缆安装直向连接器插头
分类	连接器解决方案圆形连接器工业圆形连接器（扩展）

对参数有疑问？问 AI 助手

商业参数

零件号别名	81K1500	产品类别	Circular DIN Connectors
标准包装数量	50	工厂包装数量	50

合规参数

RoHS	Compliant	SVHC	:No SVHC (20-Jun-2013)
海关税号	85366910	认证机构标志	UL Recognized/CSA/VDE
材料阻燃等级	UL94-V0

电气参数

额定电压	250V	供电电压	DIN
最大额定电流	12A

机械参数

颜色	Black	重量	0.036
包装方式	Bulk	出线方向	Yes
导线线规	20	方向	Keyed
外壳样式	Plug	端接方式	Solder
重量（g）	38.32000	触头类型	Pin
安装类型	Free Hanging (In-Line)	行程角度	Straight
电缆直径	6 mm to 12.5 mm	连接器类型	Plug, Male Pins
接触镀层	Silver	紧固类型	Threaded
安装样式	Free Hanging	封装形式	Plastic
连接器用途	Threaded	插入角度	:-
本体材料	:Nylon (Polyamide)	触头材料	:-
壳体材料	Polyamide	主要材料	DIN
端接样式	Solder	第一触头极性	Male
触点数	7	接触件端接	:Solder
介电材料	Polyamide	位数	7
外壳尺寸-插件	:-	外壳材料及表面处理	Polyamide
典型触点布局	6 + 1 Ground (PE)	第一连接器安装类型	:Cable

产品信息

类型	Cable Plug	连接器性别	Male
系列	eco mate	产品特性	Cable Clamp
制造商全称	C016 Series	产品子类型	Connectors
射频系列/标准	C016	应用细节	Commercial

环境参数

密封等级	IP 67	防护等级	IP65/67 - Dust Tight, Water Resistant, Waterproof
工作温度	-40°C ~ 125°C

文档与媒体

PDF 文档

Ecomate Circular Connectors

PDF 文档

28_ecomate_e.pdf

PDF 文档

28_ecomate_052009_e.pdf

PDF 文档

C01630H00610012.pdf
