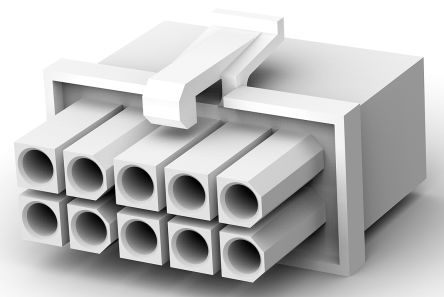

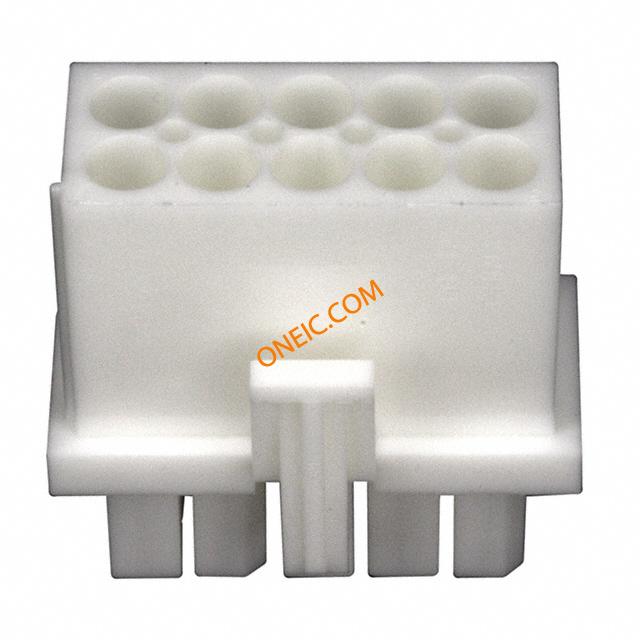

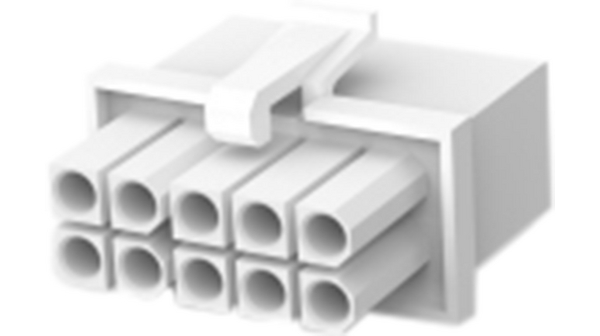

794781-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 10 POS 4.14mm ST Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 10POS SEALED MINI UMNL Male Compact Power Connector Plug,9A 600V ac Pin & Socket Connectors PLUG 10P Conn Housing PL 10 POS 4.14mm ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK SealedNumber of Circuits = 104.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG, SEALED, 10WAY Connector;Nylon;10;White;RoHScompliant,ELVcompliant Crimp housing Pitch4.14 mm Poles 2 x 5 Double row / accepts male or female contacts / straight MATE-N-LOK Mini Universal Sealed, 794781-1, TE Connectivity TE Connectivity 线对线连接器 插头 公, 9A 600 V 交流 10P MINI UMNL PLUG HSG |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | :UL | ||
电气参数
| 额定电压 | 600 V ac | 工作电压 | :250V |
| 最大额定电流 | 9A | 绝缘电阻 | :1000Mohm |
| 最小供电电压 | 600VAC | 连接器类型 - 电压输入 | Plug |
机械参数
| 颜色 | White | 深度 | 24.97 mm |
| 间距 | 4.14 mm | 高度 | 15.21 mm |
| 重量 | 0.001 | 材料（通用） | :Nylon, UL94V-0 |
| 包装方式 | Bulk | 导线线规 | :10AWG |
| 排间距 | 0.163" (4.14mm) | 触头类型 | Male or Female |
| 外壳颜色 | White | 安装类型 | Straight |
| 连接器类型 | Plug | 紧固类型 | Latch Lock |
| 安装样式 | Free Hanging | 排数 | 2 |
| 壳体材料 | Nylon | 总长度 | 24.82 mm |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 连接器颜色 | :White | 触点数 | 10 |
| 接触件端接 | Crimp | 位数 | 10 |
| 线规或范围 - AWG | :20AWG | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | Mate-N-Lok |
| 产品子类型 | Receptacle Housings | 适用产品/相关产品 | :Mini-Universal MATE-N-LOK Connectors |
环境参数
| 工作温度 | :105°C | ||
