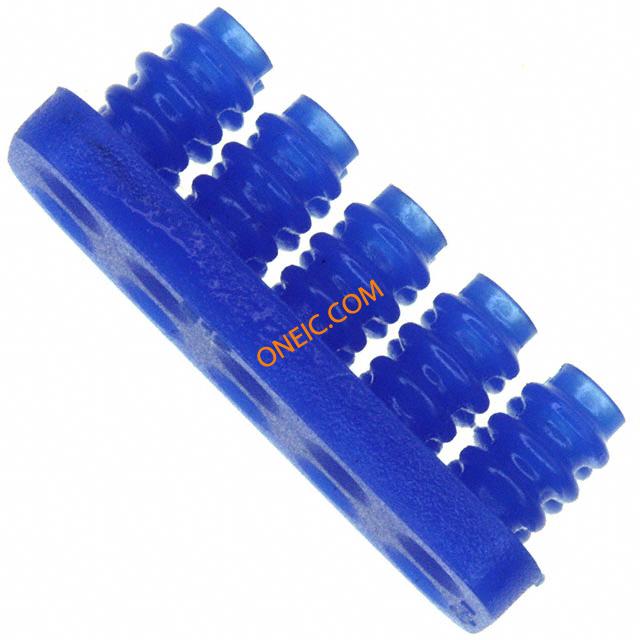

点击放大查看
1-1586359-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 10 POS Socket Mini Universal Gang Wire Seal Mini-Universal MATE-N-LOK Connectors SEAL GANG WIRE 10POS MINI UMNL Pin & Socket Connectors 10P GANG WIRE SEAL MINI Connector Accessories 10 POS Socket Mini Universal Gang Wire Seal Product Highlights:AccessoryAccessory Type = Gang Wire SealMini-Universal MATE-N-LOK Sealed4.14 mm Centerline10 PositionsSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 10P MINIUMNL GANG WIRE SEAL DR |
| 分类 |
商业参数
| 其他名称 | A32585 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant / ELV compliant | ||
电气参数
| 电压 | 600.0 | 连接器类型 - 电压输入 | Mini-Universal MATE-N-LOK Sealed |
机械参数
| 颜色 | Blue | 深度 | 9.8 mm |
| 材料（通用） | 硅橡胶 | 包装方式 | 袋 |
| 电缆类型 | 分离式导线 | 排间距 | 4.14 mm |
| 外壳镀层 | Silicone Rubber | 连接器类型 | 线到线 |
| 排数 | 2 | 壳体材料 | Silicon Rubber |
| 总长度 | 22.28 mm | 包装数量 | Loose Piece |
| 尺寸/外形 | .12 – .8 mm² [ 18 – 26 AWG ] | 绝缘直径 | 1.27 - 2.11 |
| 绝缘材料 - 类型 | 1.27 – 2.11 mm [ .05 – .083 in ] | 位数 | 10 |
| 中心触点表面处理 | 4.14 | 兼容外壳尺寸（如TM-700等） | 小型通用 MATE-N-LOK 密封连接器 |
| 外壳材料及表面处理 | 蓝色 | 线规或范围 - AWG | 0.12-0.90² [26-18] |
产品信息
| 备注 | IEC 60529, IPX4 | 类型 | Gang Seal |
| 系列 | Mate-N-Lok | 制造商全称 | Tyco Electronics |
| 产品子类型 | Accessory | 附件类型 | Gang Wire Seal |
| 射频系列/标准 | 1586359 | 适用产品/相关产品 | Mini-Universal MATE-N-LOK Series |
