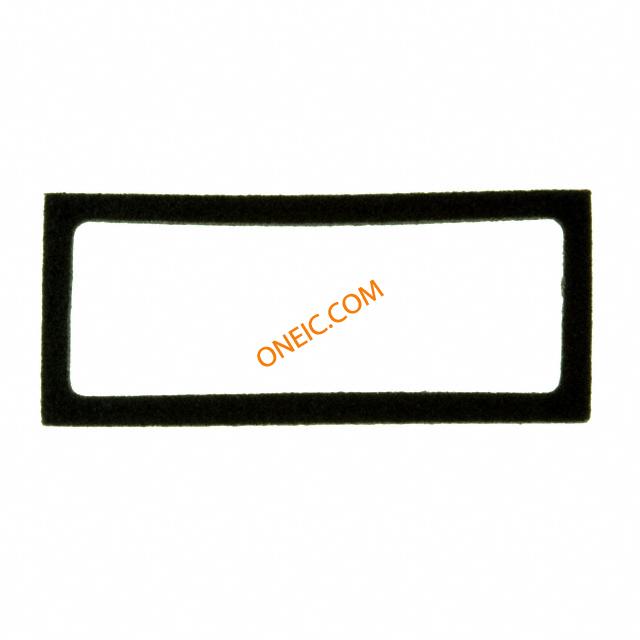

点击放大查看
1-794772-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 10 POS Interface Seal Urethane Foam Pin & Socket Connectors INTERFACE 10P .163" Centerline, 600 V, 9.5 A max. SEAL INTERFACE 10POS MINI UMNL Connector Accessories 10 POS Interface Seal Urethane Foam Product Highlights:Interface SealMini-Universal MATE-N-LOK SealedNumber of Circuits = 10Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP INTERFACE SEAL, 10WAY Connector;UrethaneFoam;10;RoHSCompliant,ELVCompliant 10P MINI UMNL SEAL,DIE CUT |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 额定电压 | 600 V | 极数 | :10 |
| 输出数量 | 10 | 工作电压 | :250V |
| 最大额定电流 | 9.5 A | 连接器类型 - 电压输入 | Mini-Universal MATE-N-LOK Sealed |
机械参数
| 深度 | 9.68 mm | 高度 | 1.14 mm |
| 重量 | 0.001 | 材料（通用） | Urethane Foam |
| 包装方式 | Bulk | 行程角度 | Straight |
| 壳体材料 | Urethane Foam | 总长度 | 22.15 mm |
| 主要材料 | Interconnect | 触点数 | 10 |
| 位数 | 10 | ||
产品信息
| 类型 | Interface Seal | 系列 | Mate-N-Lok |
| 制造商全称 | MATE-N-LOK | 产品子类型 | Accessories |
| 附件类型 | Interface Seal | 电路数 | 10 |
| 射频系列/标准 | 794772 | 适用产品/相关产品 | Mini-Universal MATE-N-LOK Series |
