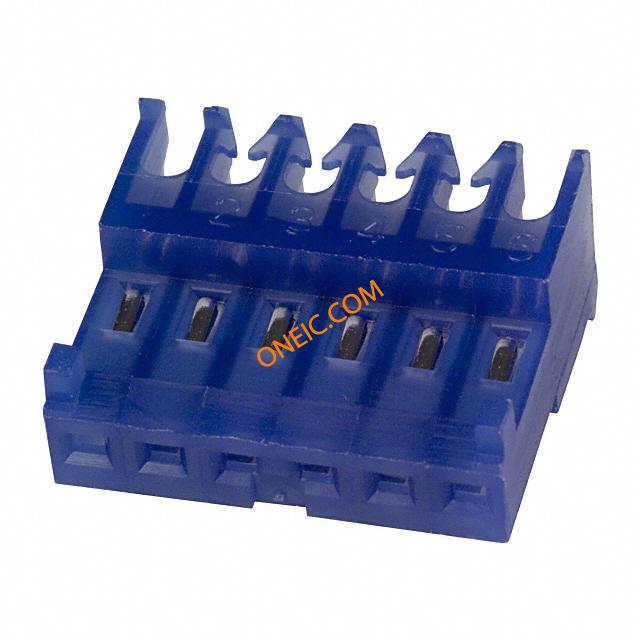

644564-6

点击放大查看

644564-6

制造商
TE Connectivity Ltd.
描述Headers & Wire Housings FEED THRU W/TAB 6P blue tin 26 AWG MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 26AWG MTA100
分类
连接器解决方案矩形连接器高可靠性矩形连接器

商业参数

标准包装数量500

合规参数

RoHSContains lead / RoHS non-compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态Not ELV/RoHS compliant材料阻燃等级UL 94V-2

电气参数

额定交流电压250

机械参数

颜色Blue间距0.100" (2.54mm)
包装方式Bulk遮蔽类型No
导线类型Discrete or Ribbon Cable出线方向90°
导线线规26 AWG触头类型Female Socket
极化Polarizing Tab第二连接器With
外壳颜色Blue安装类型Free Hanging (In-Line)
连接器类型Feed Thru接触镀层Tin-Lead
紧固类型Locking Ramp排数1
连接器用途Receptacle触头材料Copper Alloy
壳体材料Nylon安装特性Without
包装数量Loose Piece面板安装类型Without
电缆端接方式IDC配接方向With
触点数Without位数6
典型触点布局2.54 [0.100]接触镀层厚度80µin (2.03µm)
恢复后小径No线规或范围 - mm²0.12-0.15² [26]

产品信息

产品特性Feed Through, Polarizing Key制造商全称AMP
产品子类型MTA-100 Connectors连接类型Wire
跳过的位置数None

相关型号

644486-6

644486-6

TE Connectivity / AMP

Headers & Wire Housings SHROUDED HEADER 6P Straight Post tin MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT .100 6POS TIN Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥2.0160
详情
641124-6

641124-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 6POS STR .100 15GOLD Headers & Wire Housings 06P MTA100 HDR ASSY P/STR 15AU 06P MTA100 HDR ASSY P/STR 15AU 06P MTA100 HDR ASSY P/STR 15AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥3.6720
详情
640455-6

640455-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 6POS .100 TIN Headers & Wire Housings POLARIZED HEADER 6P Right Angle Post tin Conn Wire to Board HDR 6 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-100HEADER-TIN,06PMTA100HDRASSYSQR/APOL 06P MTA100 HDR ASSY SQ R/A POL

¥0.4536
详情
640454-6

640454-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 6POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 6 Way 1 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings POLARIZED HEADER 6P Straight Post tin Conn Wire to Board HDR 6 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, VERTICAL, 0.1", 6WAY Header,Polarized;MTA-100;6;250VAC;Polyester;Tin;CopperAlloy;0.100in. TE Connectivity MTA-100 系列 2.54mm节距 6路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 06P MTA100 HDR ASSY SQ STR POL

¥0.5861
详情
2-644861-6

2-644861-6

te connectivity / amp

Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 6POS .100 TIN Headers & Wire Housings HDR 06P VRT SHROUD Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 6POS, 2.54MM TE Connectivity MTA-100 系列 2.54mm节距 6路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 06P MTA100 SHRD HDR,W/O PEG SN

¥2.9218
详情
3-641213-6

3-641213-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 6POS .100 30AU Headers & Wire Housings POLARIZED HEADER 6P Straight Post gold Conn Wire to Board HDR 6 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA100 HDR ASSY PO/ST LF

¥4.2480
详情
644877-6

644877-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 6POS R/A .100 TIN Headers & Wire Housings 06P MTA100 HDR ASSY POL RET BND Conn Wire to Board HDR 6 POS 2.54mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA100 HDR ASY POL,RET BND

¥3.9384
详情
3-647001-6

3-647001-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 24AWG .100 WHITE Headers & Wire Housings 06P MTA100 PSTD CONN ASSY SN MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:Connector6 PositionsConnector Type = ReceptacleConnector Style = Closed EndMTA-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-100 Series 6 Position 24AWG Closed End Receptacle 06P MTA100 PSTD CONN ASSY SN

¥2.5200
详情

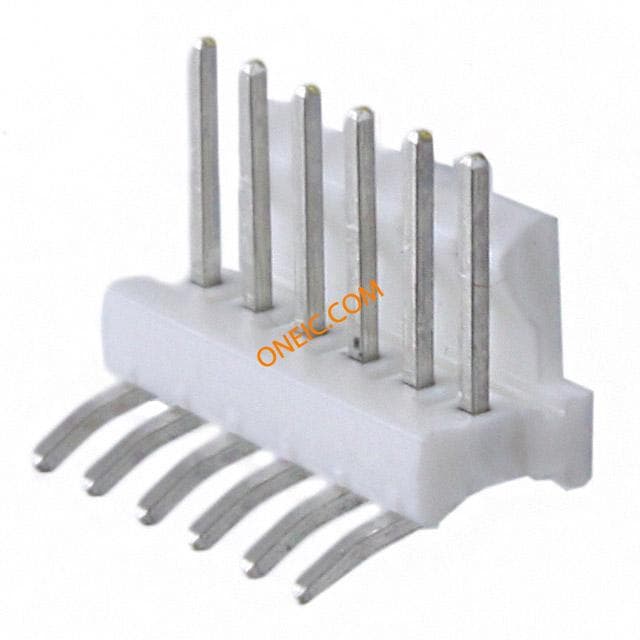

644875-6
