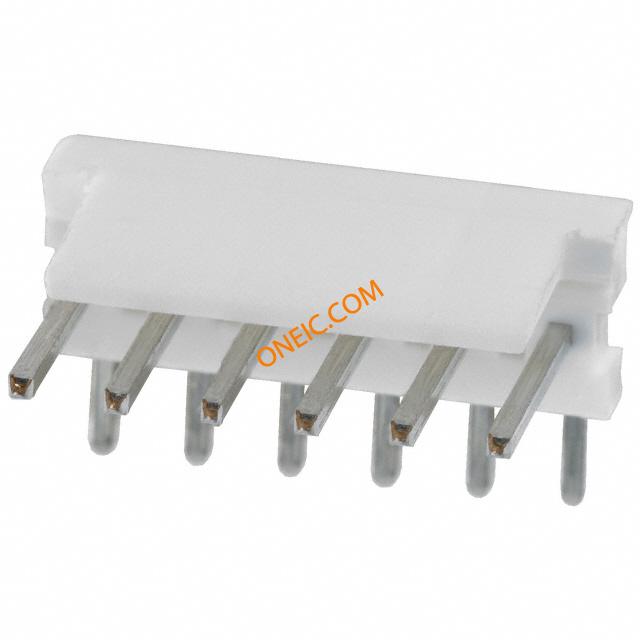

640455-6

点击放大查看

640455-6

制造商
TE Connectivity Ltd.
描述Conn Wire to Board HDR 6 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 6POS .100 TIN Headers & Wire Housings POLARIZED HEADER 6P Right Angle Post tin Conn Wire to Board HDR 6 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-100HEADER-TIN,06PMTA100HDRASSYSQR/APOL 06P MTA100 HDR ASSY SQ R/A POL
分类
连接器解决方案板对板连接器板对板连接器

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量2000

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250 V供电电压250
接触电阻6 mohm额定交流电压250
连接器阻抗焊接最大额定电流5 A
最小供电电压250VAC

机械参数

颜色Natural深度11.05 mm
间距2.54 mm高度5.72 mm
长度15.24 mm [ .6 in ]包装方式Bulk
遮蔽类型No壳体颜色自然
端接方式Solder触头类型Male Pin
第二连接器Without触点形状Square
外壳颜色White安装类型Right Angle
连接器类型Header, Unshrouded接触镀层Tin
触点时序Without安装样式Through Hole
排数1壳体镀层Tin
外壳材料（壳体）极化连接器用途Header
插入件材料铜合金触头材料Copper Alloy
壳体材料Polyester总长度15.24 mm
安装特性Without包装数量1
面板安装类型Without主要材料InterconnectSystem
尺寸/外形0.64 [.025]端接样式Through Hole
第一触头极性Pin (Male)配接方向With
触点数6端接表面处理不带
位数6后壳中断功能Without
兼容外壳尺寸（如TM-700等）MTA .100 连接器组件触头长度-柱3.56 mm [ .14 in ]
安装孔直径不带接触件表面处理 - 配合锡
典型触点布局2.54 [0.100]接触长度 - 配合0.295" (7.49mm)
触点材料 - 柱Copper Alloy表面贴装焊盘尺寸Without
端子柱长度3.56 [0.140]接触镀层厚度3.81 µm [ 150 µin ]
恢复后小径No静电放电屏蔽不带
直角致动器长度Front护套（绝缘）厚度1.27 µm, 50 µin

产品信息

类型Wire to Board连接器性别HDR
系列MTA-100产品特性Polarizing Key
可密封否制造商全称AMP
产品子类型MTA-100 Connectors连接类型Printed Circuit Board
应用细节Wire-to-Board加载位置数All
跳过的位置数None

环境参数

工作温度-55C to 105C封装热阻1.6 mm [ .063 in ]

文档与媒体

640455-6

相关型号

3-641243-6

3-641243-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Headers & Wire Housings 06 CIR MTA-100 CONN BLUE LF MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 26AWG .100 BLUE 06 CIR MTA-100 CONN BLUE LF

¥6.9840
详情
643816-6

643816-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 28AWG MTA100 Headers & Wire Housings CLOSED WITH TABS 6P green tin 28 AWG Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA100 CONN ASSY POL RIB

¥1.3932
详情
1375820-6

1375820-6

te connectivity / amp

Conn Housing RCP 6 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HSNG 6POS CST-100 II 6w housing CST-100 II Headers & Wire Housings HSG REC 1X06C STD 26-22AWG Conn Housing RCP 6 POS 2.54mm Crimp ST Product Highlights:CST-100 II HousingsNumber of Positions = 6Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONNECTOR, RECEPTACLE, 2.54MM, 6WAY CST-100IIHOUSING6POS TE Connectivity CST-100 II 系列 2.54mm 节距 6 路 直 母 PCB 壳体 CST-100 II HOUSING 6 POS

¥0.7790
详情
3-643828-6

3-643828-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 26AWG MTA-100 Headers & Wire Housings 06P MTA100 CONN ASSY LF 06P MTA100 CONN ASSY LF 06P MTA100 CONN ASSY LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥2.9520
详情
3-641198-6

3-641198-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 22AWG .100 RED Headers & Wire Housings 06P MTA100 CONN ASSY RED LF 06P MTA100 CONN ASSY RED LF 06P MTA100 CONN ASSY RED LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥6.4080
详情
3-641239-6

3-641239-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 26AWG .100 BLUE Headers & Wire Housings 06P MTA100 CONN ASSY BLU LF MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-100 Connectors6 PositionsMating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA100 CONN ASSY BLU LF

¥6.9840
详情

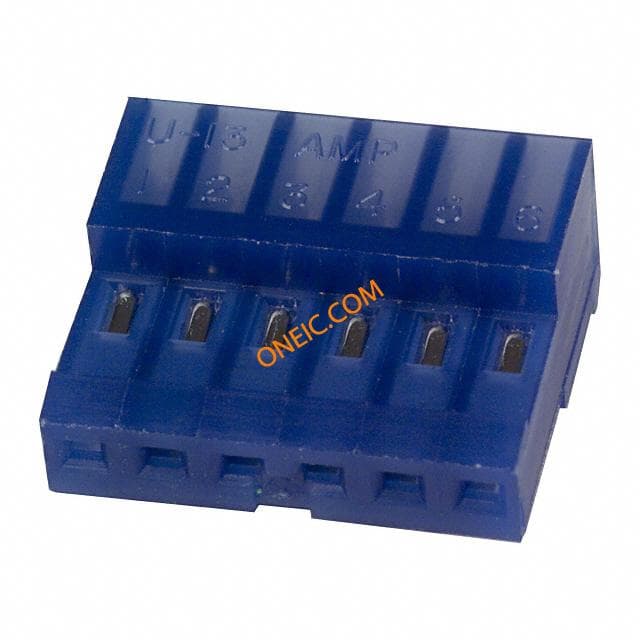

640442-6
