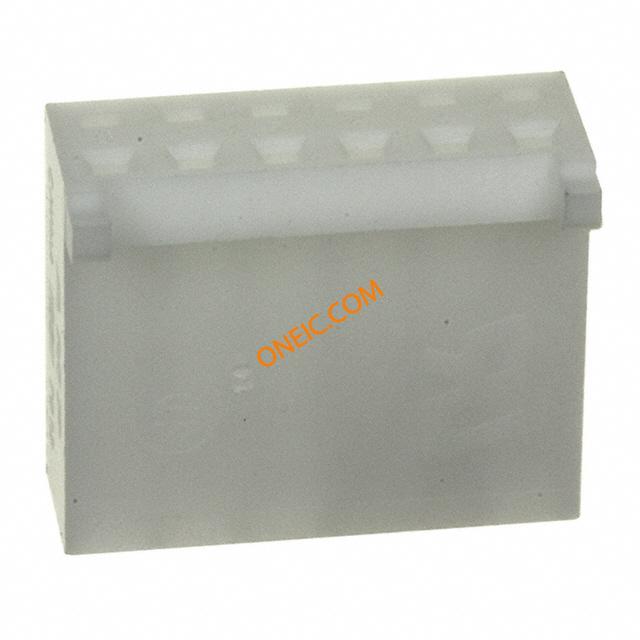

点击放大查看
1375820-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 6 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HSNG 6POS CST-100 II 6w housing CST-100 II Headers & Wire Housings HSG REC 1X06C STD 26-22AWG Conn Housing RCP 6 POS 2.54mm Crimp ST Product Highlights:CST-100 II HousingsNumber of Positions = 6Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONNECTOR, RECEPTACLE, 2.54MM, 6WAY CST-100IIHOUSING6POS TE Connectivity CST-100 II 系列 2.54mm 节距 6 路 直 母 PCB 壳体 CST-100 II HOUSING 6 POS |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366990 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | CSA,UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 量程（°/s） | :TE - CST-100 II Series | 最大额定电流 | 4/Contact A |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | White | 深度 | 12.95mm |
| 间距 | 2.54 mm | 宽度 | 6.6mm |
| 高度 | 6.6 mm | 长度 | 15.75mm |
| 重量 | 0.002 | 包装方式 | Bulk |
| 遮蔽类型 | No | 出线方向 | 180° |
| 导线线规 | 22-28 AWG | 触头类型 | Female Socket |
| 第二连接器 | With | 外壳颜色 | White |
| 安装类型 | Straight | 行程角度 | Straight |
| 连接器类型 | Crimp | 接触镀层 | 2.54 [0.100] |
| 紧固类型 | Locking Ramp | 安装样式 | Wire |
| 排数 | 1 | 连接器用途 | Receptacle |
| 触头材料 | :- | 壳体材料 | Polymer |
| 总长度 | 15.75 mm | 安装特性 | Without |
| 面板安装类型 | Without | 主要材料 | InterconnectSystem |
| 插针孔直径 | 0.1" | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 配接方向 | With |
| 触点数 | 6 | 接触件端接 | Crimp |
| 位数 | 6 | ||
产品信息
| 备注 | Not interchangeable with CST-100 contacts and housings.; Mates with all MTA-100 | 类型 | Housing |
| 连接器性别 | RCP | 系列 | CST-100 |
| CAD图纸 | 3D CAD Model | 制造商全称 | AMP |
| 产品子类型 | CST-100 II Housings | 应用细节 | Wire-to-Board |
| 适用产品/相关产品 | Centerline Economy Power Connector | ||
环境参数
| 工作温度 | -55C to 105C | ||
