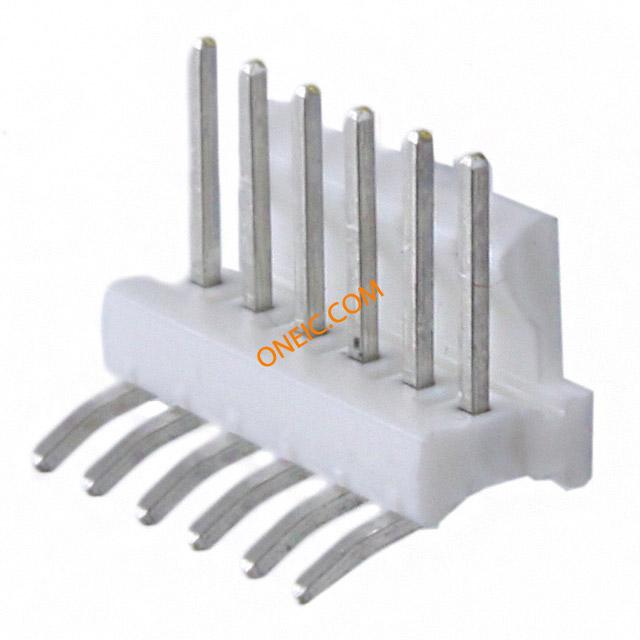

644875-6

点击放大查看

644875-6

制造商
TE Connectivity Ltd.
描述Conn Wire to Board HDR 6 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEAD 6POS R/A TIN Headers & Wire Housings 06P MTA100 HDR ASSY F/L SP BND Conn Wire to Board HDR 6 POS 2.54mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA100 HDR ASSY F/L,SP BND
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250 V开关功能Friction Lock
供电电压250额定交流电压250
连接器阻抗焊接最大额定电流5 A

机械参数

颜色Natural间距2.54 mm
高度10.03 mm [ .395 in ]长度15.24 mm [ .6 in ]
包装方式Bulk遮蔽类型No
壳体颜色自然端接方式Solder
触头类型Male Pin第二连接器With
触点形状Square外壳颜色Natural
安装类型Right Angle连接器类型Header, Unshrouded
接触镀层Tin触点时序Without
紧固类型Friction Lock安装样式带有
排数1壳体镀层Tin
旋转角度34°外壳材料（壳体）摩擦锁
连接器用途Header插入件材料铜合金
锁定特性Friction Lock触头材料Copper Alloy
壳体材料Polyester安装特性Without
包装数量1面板安装类型Without
端接样式Through Hole第一触头极性Pin (Male)
配接方向Without触点数6
端接表面处理不带位数6
后壳中断功能Without兼容外壳尺寸（如TM-700等）MTA .100 连接器组件
触头长度-柱电源安装孔直径不带
接触件表面处理 - 配合锡典型触点布局2.54 [0.100]
接触长度 - 配合0.295" (7.49mm)端子柱长度7.49 mm [ .295 in ]
接触镀层厚度3.81 µm [ 150 µin ]恢复后小径No
静电放电屏蔽不带直角致动器长度Front
护套（绝缘）厚度1.27 µm, 50 µin

产品信息

类型Wire to Board连接器性别HDR
系列MTA-100可密封否
制造商全称AMP产品子类型MTA-100 Connectors
连接类型Printed Circuit Board应用细节Wire-to-Board
加载位置数All跳过的位置数None

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]封装热阻1.6 mm [ .063 in ]
