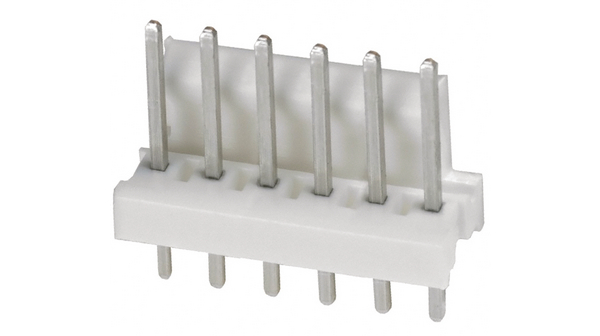

640456-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Board HDR 6 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 6POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 6 Way 1 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings FRICTION LCK HDR 6P Straight Post tin Conn Wire to Board HDR 6 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, VERTICAL, 0.1", 6WAY Header,FrictionLock;MTA-100;6;250VAC;Polyester;Tin;CopperAlloy;Tin Connector: wire-board; MTA-100; socket; male; PIN:6; tinned; 2.54mm Pin header 6P, 640456-6, TE Connectivity TE Connectivity MTA-100 系列 2.54mm节距 6路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 06P MTA100 HDR ASSY F/L SQ STR |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant,UL94V-0 |
| 海关税号 | 85369010 | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| 认证机构 | CSA,UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250 V ac | 开关功能 | Friction Lock |
| 工作电压 | :250V | 接触电阻 | 6 mohm |
| 额定交流电压 | 250 | 最大额定电流 | 5A |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Natural | 深度 | 5.72 mm |
| 间距 | 2.54 mm | 高度 | 10.03 mm |
| 重量 | 0.064 | 包装方式 | Bulk |
| 端口尺寸 | 0.025in. | 遮蔽类型 | No |
| 方向 | straight | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚间距 | :2.54mm |
| 引脚长度（针脚） | 0.14" | 柱间距 | 2.54mm |
| 极化 | Polarizing Slot | 第二连接器 | With |
| 触点形状 | Square | 外壳颜色 | White |
| 安装类型 | Vertical | 行程角度 | Straight |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Tin |
| 紧固类型 | Friction Lock | 安装样式 | Through Hole |
| 排数 | 1 | 连接器用途 | Header |
| 锁定特性 | Friction Lock | 触头材料 | Copper Alloy |
| 壳体材料 | Polyester | 总长度 | 15.24 mm |
| 安装特性 | Without | 包装数量 | 500 |
| 面板安装类型 | Without | 主要材料 | InterconnectSystem |
| 尺寸/外形 | 0.64 [.025] | 连接器 - 电缆 | socket |
| 插针孔直径 | 0.1" | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 配接方向 | With |
| 触点数 | 6 | 接触件端接 | :Through Hole Vertical |
| 位数 | 6 | 后壳中断功能 | Without |
| 中心触点镀层工艺 | 0.100in. | 柱体长度（配合） | 0.14in. |
| 安装孔直径 | 0.04" | 接触长度 - 配合 | 0.295" (7.49mm) |
| 触点材料 - 柱 | Copper Alloy | 端子柱长度 | 3.56 [0.140] |
| 恢复后小径 | No | 触点材料 - 镀层 | tinned |
| 第一连接器安装特征 | 1x6 | ||
产品信息
| SPG | 193 | 类型 | Wire to Board |
| 连接器性别 | HDR | 系列 | MTA-100 |
| 已删除 | Compliant | 产品特性 | Pinstrip |
| CAD图纸 | 3D CAD Model | 制造商全称 | AMP |
| 产品子类型 | MTA-100 Connectors | 适配器系列 | MTA-100 |
| 连接类型 | Printed Circuit Board | 单元数量 | 1 |
| 应用细节 | Wire-to-Board | 加载位置数 | All |
| 跳过的位置数 | None | ||
环境参数
| 工作温度 | -55C to 105C | ||
