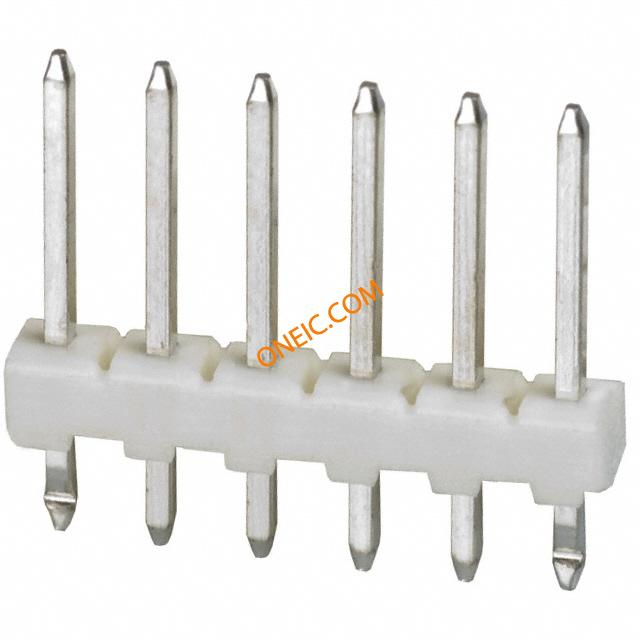

3-644695-6

点击放大查看

3-644695-6

制造商
TE Connectivity Ltd.
描述Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 6POS .100 TIN Headers & Wire Housings NARROW FLT HDR 6P Strt Post w/ret. leg Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA100 STR HDR RETENTIVE
分类
连接器解决方案板对板连接器板对板连接器

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1500

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Wave solder capable to 240°CUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250 V供电电压250
额定交流电压250连接器阻抗焊接
最大额定电流5 A

机械参数

颜色Natural间距2.54 mm
高度10.03 mm [ .395 in ]长度14.94 mm [ .588 in ]
包装方式Bulk遮蔽类型No
壳体颜色自然端接方式Solder
触头类型Male Pin第二连接器Without
触点形状Square外壳颜色White
安装类型Vertical连接器类型Header, Unshrouded
接触镀层Tin触点时序Without
安装样式带有排数1
壳体镀层Tin外壳材料（壳体）窄
连接器用途Header插入件材料铜合金
触头材料Copper Alloy壳体材料Polyester
安装特性Without包装数量15000
面板安装类型Without尺寸/外形0.64 [.025]
端接样式Through Hole第一触头极性Pin (Male)
配接方向Without触点数6
端接表面处理不带位数6
后壳中断功能Without兼容外壳尺寸（如TM-700等）MTA .100 连接器组件
触头长度-柱电源安装孔直径不带
接触件表面处理 - 配合锡典型触点布局2.54 [0.100]
接触长度 - 配合0.295" (7.49mm)端子柱长度7.49 mm [ .295 in ]
接触镀层厚度150µin (3.81µm)恢复后小径Yes
静电放电屏蔽不带护套（绝缘）厚度1.27 µm, 50 µin

产品信息

备注2 or 3 retentive leg's per header, depending upon number of positions.类型Unshrouded Header
连接器性别HDR系列MTA-100
可密封否制造商全称AMP
产品子类型MTA-100 Connectors连接类型Printed Circuit Board
应用细节Wire-to-Board加载位置数All
跳过的位置数None

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]封装热阻1.6 mm [ .063 in ]

相关型号

3-641243-6

3-641243-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Headers & Wire Housings 06 CIR MTA-100 CONN BLUE LF MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 26AWG .100 BLUE 06 CIR MTA-100 CONN BLUE LF

¥6.9840
详情
643816-6

643816-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 28AWG MTA100 Headers & Wire Housings CLOSED WITH TABS 6P green tin 28 AWG Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA100 CONN ASSY POL RIB

¥1.3932
详情
1375820-6

1375820-6

te connectivity / amp

Conn Housing RCP 6 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HSNG 6POS CST-100 II 6w housing CST-100 II Headers & Wire Housings HSG REC 1X06C STD 26-22AWG Conn Housing RCP 6 POS 2.54mm Crimp ST Product Highlights:CST-100 II HousingsNumber of Positions = 6Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONNECTOR, RECEPTACLE, 2.54MM, 6WAY CST-100IIHOUSING6POS TE Connectivity CST-100 II 系列 2.54mm 节距 6 路 直 母 PCB 壳体 CST-100 II HOUSING 6 POS

¥0.7790
详情
3-643828-6

3-643828-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 26AWG MTA-100 Headers & Wire Housings 06P MTA100 CONN ASSY LF 06P MTA100 CONN ASSY LF 06P MTA100 CONN ASSY LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥2.9520
详情
3-641198-6

3-641198-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 22AWG .100 RED Headers & Wire Housings 06P MTA100 CONN ASSY RED LF 06P MTA100 CONN ASSY RED LF 06P MTA100 CONN ASSY RED LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥6.4080
详情
3-641239-6

3-641239-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 26AWG .100 BLUE Headers & Wire Housings 06P MTA100 CONN ASSY BLU LF MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-100 Connectors6 PositionsMating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA100 CONN ASSY BLU LF

¥6.9840
详情
640442-6

640442-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 26AWG MTA100 Headers & Wire Housings CLOSED W/O TABS 6P blue tin 26 AWG Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA100 CONN ASSY BLU

¥1.3738
详情
3-640470-6

3-640470-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount T/R MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 26AWG .100 BLUE Headers & Wire Housings 06P MTA100 CONN ASSY ON TAPE 06P MTA100 CONN ASSY ON TAPE 06P MTA100 CONN ASSY ON TAPE Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥1.6718
详情
3-644313-6

3-644313-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Headers & Wire Housings 06P MTA100 CONN ASSY BLK LF MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 26AWG MTA-100 06P MTA100 CONN ASSY BLK LF

¥2.9520
详情
3-644497-6

3-644497-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 26AWG MTA-100 Headers & Wire Housings 06P MTA100 CONN ASSY BLK LF 06P MTA100 CONN ASSY BLK LF

¥2.9520
详情
3-643815-6

3-643815-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 26AWG MTA100 Receptacle IDC 6 way MTA-100 Headers & Wire Housings CLOSED WITH TABS 6P blue tin 26 AWG Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 6POS, 2.54MM 06PMTA100CONNASSYPOLRIB MTA-100 6 Position Single Row 2.54 mm Pitch 26 AWG Closed End IDC Socket TE Connectivity MTA-100 系列 6路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 06P MTA100 CONN ASSY POL RIB

¥1.0728
详情
3-641240-6

3-641240-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 28AWG .100 GREEN Headers & Wire Housings 06P MTA100 CONN ASSY GRN LF 06P MTA100 CONN ASSY GRN LF

¥6.9840
详情

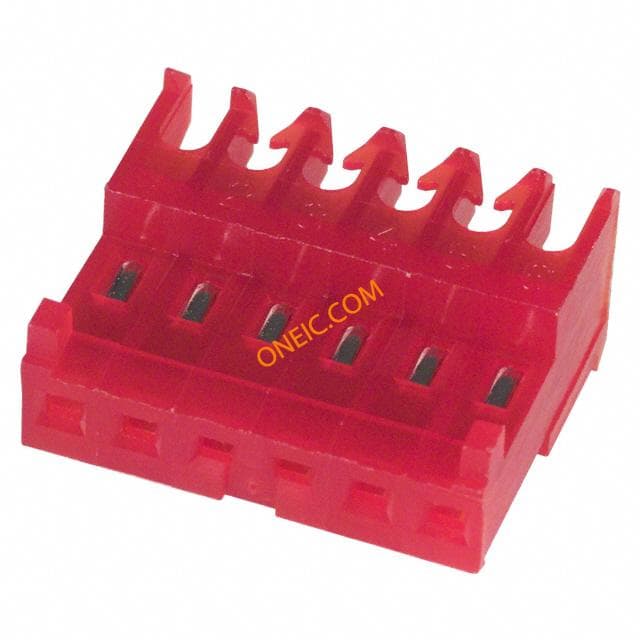

644540-6
