647000-6

点击放大查看

647000-6

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 6 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 22AWG MTA 100 Headers & Wire Housings 06P MTA100 PSTD CONN ASSY SN Conn IDC Connector F 6 POS 2.54mm IDT ST Cable Mount Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = ReceptacleConnector Type = Closed EndWire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA100 PSTD CONN ASSY SN
分类
连接器解决方案板对板连接器板对板连接器

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量125

合规参数

RoHSContains lead / RoHS non-compliantUL等级获得认可
无铅定义Not relevant for lead free processUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态Not ELV/RoHS compliant
材料阻燃等级UL 94V-2

电气参数

额定电压250 VAC供电电压250
额定交流电压250连接器阻抗IDC
最大额定电流5

机械参数

颜色Red间距2.54 mm
高度12.55 mm [ .494 in ]长度17.78 mm [ .7 in ]
包装方式Bulk遮蔽类型No
导线类型Discrete or Ribbon Cable壳体颜色白色
电缆类型分离式导线, 实心, 绞线导线线规22 AWG
端接方式IDT触头类型Male Pin
第二连接器Without外壳颜色Red
安装类型Free Hanging (In-Line)连接器类型Closed End
接触镀层Tin-Lead Over Nickel触点时序Without
安装样式Wire排数1
壳体镀层Nickel外壳材料（壳体）标准
连接器用途Receptacle插入件材料铜合金
触头材料Copper Alloy壳体材料Nylon
安装特性Without包装数量125
面板安装类型Without电缆端接方式IDC
端接样式IDC第一触头极性Socket (Female)
配接方向Without触点数6
端接表面处理带有接触件端接Locking Lance
绝缘直径1.52 mm [ .06 in ]位数6
兼容外壳尺寸（如TM-700等）MTA .100 标准连接器触头长度-柱电源
安装孔直径带有接触件表面处理 - 配合锡铅
典型触点布局2.54 [0.100]接触镀层厚度80µin (2.03µm)
恢复后小径No线规或范围 - mm²0.3-0.4² [22]
静电放电屏蔽带有护套（绝缘）厚度1.27 µm, 50 µin

产品信息

备注肋之间的条纹可能会减少类型IDC Connector
连接器性别F系列MTA-100
产品特性Closed End可密封否
制造商全称AMP产品子类型MTA-100 Connectors
连接类型Wire跳过的位置数None

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]

相关型号

3-641243-6

3-641243-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Headers & Wire Housings 06 CIR MTA-100 CONN BLUE LF MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 26AWG .100 BLUE 06 CIR MTA-100 CONN BLUE LF

¥6.9840
详情
3-644702-6

3-644702-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Headers & Wire Housings 06P MTA100 CONN ASSY F/T LF MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 22AWG .100 RED 06P MTA100 CONN ASSY F/T LF 06P MTA100 CONN ASSY F/T LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥6.9840
详情
3-643814-6

3-643814-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 24AWG MTA100 6w IDC closed end connector MTA-100 Headers & Wire Housings CLOSED WITH TABS 6P white tin 24 AWG Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 6POS, 2.54MM CONNECTOR,RECEPTACLE,MTA-100,6POSITION,CLOSEDEND,POLARIZED,WHITE Connector: wire-board; MTA-100; plug; female; PIN:6; polarized Cable socket, straight 6P, 3-643814-6, TE Connectivity TE Connectivity MTA-100 系列 6路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 06P MTA100 CONN ASSY POL RIB

¥1.1419
详情

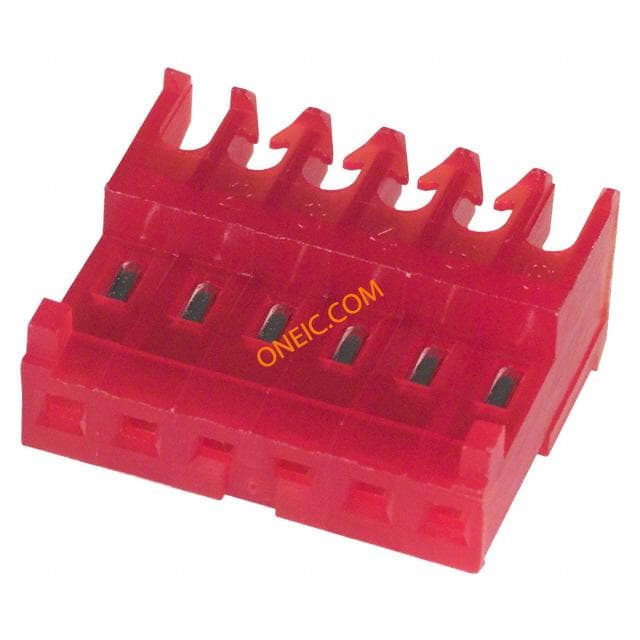

3-644540-6
