3-647009-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector F 6 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 24AWG .100 WHITE |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定交流电压 | 250 | ||
机械参数
| 颜色 | White | 间距 | 2.54 mm |
| 包装方式 | Bulk | 遮蔽类型 | No |
| 导线类型 | Discrete or Ribbon Cable | 导线线规 | 24 AWG |
| 端接方式 | IDT | 触头类型 | Male Pin |
| 第二连接器 | Without | 外壳颜色 | White |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Closed End |
| 接触镀层 | Gold Over Nickel | 排数 | 1 |
| 连接器用途 | Receptacle | 触头材料 | Copper Alloy |
| 壳体材料 | Nylon | 安装特性 | Without |
| 面板安装类型 | Without | 电缆端接方式 | IDC |
| 配接方向 | Without | 触点数 | 6 |
| 位数 | 6 | 典型触点布局 | 2.54 [0.100] |
| 接触镀层厚度 | 30µin (0.76µm) | 恢复后小径 | No |
| 线规或范围 - mm² | 0.2² [24] | ||
产品信息
| 类型 | IDC Connector | 连接器性别 | F |
| 产品特性 | Closed End | 制造商全称 | AMP |
| 产品子类型 | MTA-100 Connectors | 连接类型 | Wire |
| 跳过的位置数 | None | ||
相关型号
3-643814-6
te connectivity / amp
Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 24AWG MTA100 6w IDC closed end connector MTA-100 Headers & Wire Housings CLOSED WITH TABS 6P white tin 24 AWG Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 6POS, 2.54MM CONNECTOR,RECEPTACLE,MTA-100,6POSITION,CLOSEDEND,POLARIZED,WHITE Connector: wire-board; MTA-100; plug; female; PIN:6; polarized Cable socket, straight 6P, 3-643814-6, TE Connectivity TE Connectivity MTA-100 系列 6路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 06P MTA100 CONN ASSY POL RIB
3-644540-6
te connectivity / amp
Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 22AWG MTA100 Headers & Wire Housings FEED THRU W/TAB 6P red tin 22 AWG Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 6POS, 2.54MM TE Connectivity MTA-100 系列 6路 2.54mm节距 母 IDC 连接器 , 电缆安装 06P MTA100 CONN ASSY F/T POL
3-640440-6
te connectivity / amp
Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 22AWG MTA100 6 way MTA cable mount skt,2.54mm 22awg Headers & Wire Housings CLOSED W/O TABS 6P red tin 22 AWG Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board Application, Wire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HOUSING, 22AWG, 6WAY WIRE-BOARD CONNECTOR RECEPTACLE, 6POS, 2.54MM IDCReceptacle,Closed-EndWithoutPolarizingTab,22AWG,Red,6pos. Connector: wire-board; MTA-100; plug; female; PIN:6; tinned; 2.54mm Cable socket, straight 6P, 3-640440-6, TE Connectivity TE Connectivity MTA-156 系列 6路 2.54mm节距 直角 电缆安装 母 IDC 连接器 06P MTA100 CONN ASSY 22AWG RED
3-640621-6
te connectivity / amp
Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 24AWG MTA100 Headers & Wire Housings FEED THRU W/O TAB 6P white tin 24 AWG Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA100 CONN ASSY F/T NATL

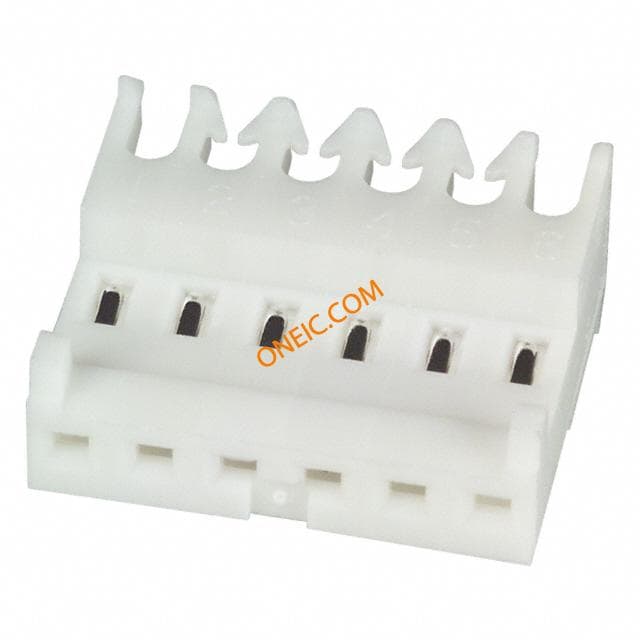

644563-6
te connectivity / amp
Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 24AWG MTA100 Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA100 CONN ASSY F/T 24AWG
643813-6
te connectivity / amp
Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6 POS 22AWG MTA 100 Headers & Wire Housings CLOSED WITH TABS 6P red tin 22 AWG Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP ConnectorAssembly;ClosedEnd;6;Nylon;CopperAlloy;Tin-Lead;0.100in. 06P MTA100 CONN ASSY POL RIB
3-641535-6
te connectivity / amp
Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Headers & Wire Housings 6 POS RECPT 24 AWG CONN RECEPT 6POS 24AWG MTA100

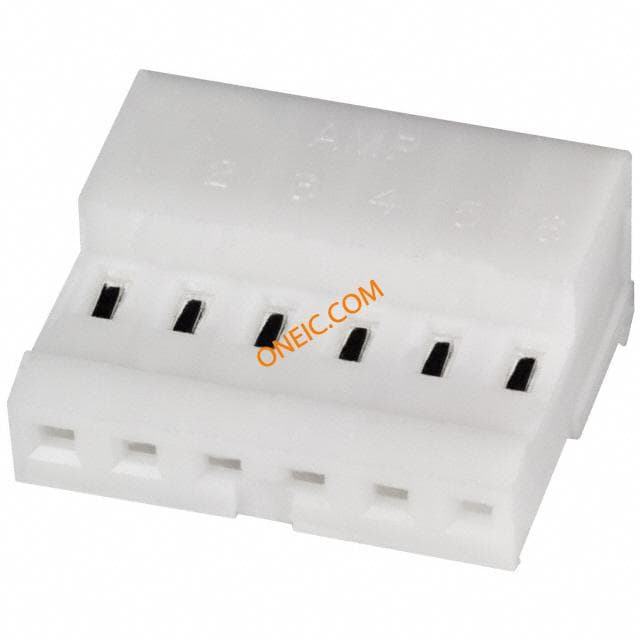

641535-6
te connectivity / amp
06P MTA100 CONN ASSY 24AWG Headers & Wire Housings 06P MTA100 CONN ASSY 24AWG CONN RECEPT 6POS 24AWG MTA100 Conn IDC Connector RCP 6 POS 2.54mm IDT RA Cable Mount
3-640443-6
te connectivity / amp
Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 28AWG MTA100 Connector FH IDC 6 way Rec 28AWG MTA-100 Headers & Wire Housings CLOSED W/O TABS 6P green tin 28 AWG Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 6POS, 2.54MM CONNECTOR,RECEPTACLE,MTA-100,6POSITION,CLOSEDEND,GREEN Cable socket, straight 6P, 3-640443-6, TE Connectivity TE Connectivity MTA-100 系列 6路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 06P MTA100 CONN ASSY GRN
3-643815-6
te connectivity / amp
Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 26AWG MTA100 Receptacle IDC 6 way MTA-100 Headers & Wire Housings CLOSED WITH TABS 6P blue tin 26 AWG Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 6POS, 2.54MM 06PMTA100CONNASSYPOLRIB MTA-100 6 Position Single Row 2.54 mm Pitch 26 AWG Closed End IDC Socket TE Connectivity MTA-100 系列 6路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 06P MTA100 CONN ASSY POL RIB
3-644563-6
te connectivity / amp
Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 24AWG MTA100 Headers & Wire Housings FEED THRU W/TAB 6P white tin 24 AWG TE Connectivity MTA-100 系列 6路 2.54mm节距 母 IDC 连接器 , 电缆安装 06P MTA100 CONN ASSY F/T 24AWG
3-640623-6
te connectivity / amp
Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 28AWG MTA100 Headers & Wire Housings FEED THRU W/O TAB 6P green tin 28 AWG Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA100 CONN ASSY GRN LF
647477-6
TE Connectivity / AMP
Headers & Wire Housings 06P MTA100 CONN ASSY F/T 22AWG MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 22AWG MTA-100 06P MTA100 CONN ASSY F/T 22AWG 06P MTA100 CONN ASSY F/T 22AWG Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
640623-6
TE Connectivity / AMP
Headers & Wire Housings FEED THRU W/O TAB 6P green tin 28 AWG MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 28AWG MTA100
644564-6
TE Connectivity / AMP
Headers & Wire Housings FEED THRU W/TAB 6P blue tin 26 AWG MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 26AWG MTA100
3-644565-6
te connectivity / amp
Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 28AWG MTA100 06P MTA100 CONN ASSY F/T 28AWG
640622-6
te connectivity / amp
Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 26AWG MTA100 Headers & Wire Housings FEED THRU W/O TAB 6P blue tin 26 AWG Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:6 PositionsPreloadedHousing Gender = PlugContact Gender = ReceptacleConnector Style = Feed ThroughSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA100 FD THR ASSY BLUE
640443-6
te connectivity / amp
Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Headers & Wire Housings CLOSED W/O TABS 6P green tin 28 AWG MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 28AWG MTA100 Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA100 CONN ASSY GRN
3-640622-6
te connectivity / amp
Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 26AWG MTA100 Headers & Wire Housings FEED THRU W/O TAB 6P blue tin 26 AWG Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA100 FD THR ASSY BLUE
405104902
TE Connectivity
CONN RECEPT 6POS 24AWG MTA100
