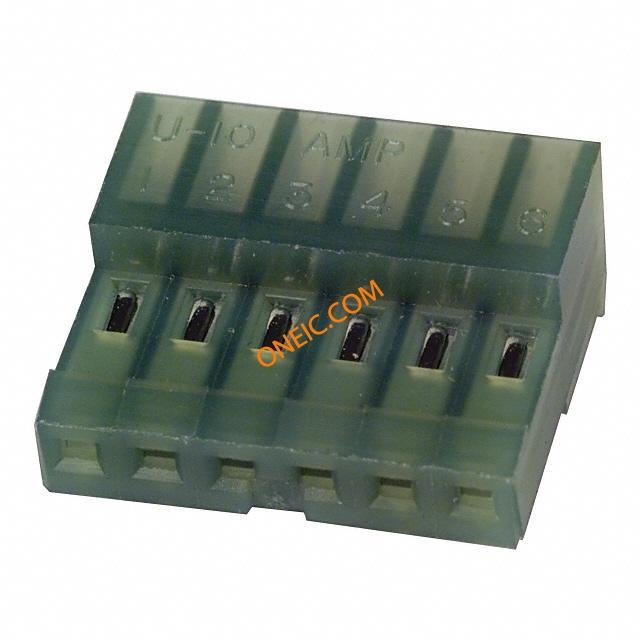

640443-6

点击放大查看

640443-6

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Headers & Wire Housings CLOSED W/O TABS 6P green tin 28 AWG MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 28AWG MTA100 Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA100 CONN ASSY GRN
分类
连接器解决方案板对板连接器板对板连接器

商业参数

其他名称A19054产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量1

合规参数

RoHSNoUL等级获得认可
无铅定义Not relevant for lead free processUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态Not ELV/RoHS compliant
材料阻燃等级UL 94V-2

电气参数

额定电压250 VAC开关功能Ramp Lock
供电电压250额定交流电压250
连接器阻抗IDC最大额定电流5 A

机械参数

颜色Green间距2.54 mm
高度6.99 mm [ .275 in ]长度15.24 mm [ .6 in ]
包装方式Bulk遮蔽类型No
导线类型Discrete or Ribbon Cable壳体颜色白色
出线方向90°电缆类型分离式导线, 绞线
导线线规28端接方式IDT
触头类型Female Socket第二连接器With
外壳颜色Green安装类型Free Hanging (In-Line)
连接器类型Closed End接触镀层Tin-Lead Over Nickel
触点时序Without紧固类型Locking Ramp
安装样式Wire排数1
外壳材料（壳体）标准连接器用途Receptacle
插入件材料铜合金触头材料Copper Alloy
壳体材料Nylon安装特性Without
包装数量Loose Piece面板安装类型Without
电缆端接方式IDC端接样式IDC
第一触头极性Socket (Female)配接方向Without
触点数6端接表面处理带有
接触件端接Locking Lance绝缘直径1.52 mm [ .06 in ]
位数6兼容外壳尺寸（如TM-700等）MTA .100 头和 MTA .100 IDC 柱形连接器
安装孔直径不带接触件表面处理 - 配合锡铅
典型触点布局2.54 [0.100]表面贴装焊盘尺寸Without
接触镀层厚度80µin (2.03µm)恢复后小径No
线规或范围 - mm²0.08-0.09² [28]静电放电屏蔽带有

产品信息

备注肋之间的条纹可能会减少类型IDC Connector
连接器性别F系列MTA-100
产品特性Closed End可密封否
制造商全称AMP产品子类型Receptacles / Sockets - Housings
连接类型Wire跳过的位置数None

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]

相关型号

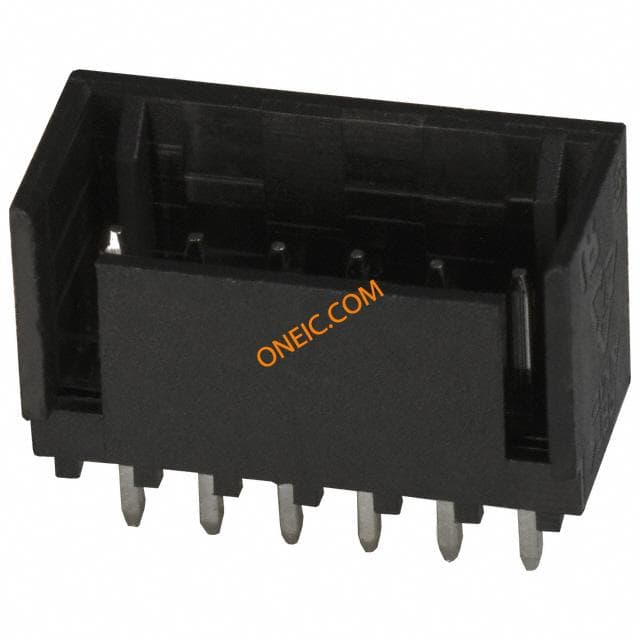

644486-6

644486-6

TE Connectivity / AMP

Headers & Wire Housings SHROUDED HEADER 6P Straight Post tin MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT .100 6POS TIN Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥2.0160
详情
641124-6

641124-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 6POS STR .100 15GOLD Headers & Wire Housings 06P MTA100 HDR ASSY P/STR 15AU 06P MTA100 HDR ASSY P/STR 15AU 06P MTA100 HDR ASSY P/STR 15AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥3.6720
详情

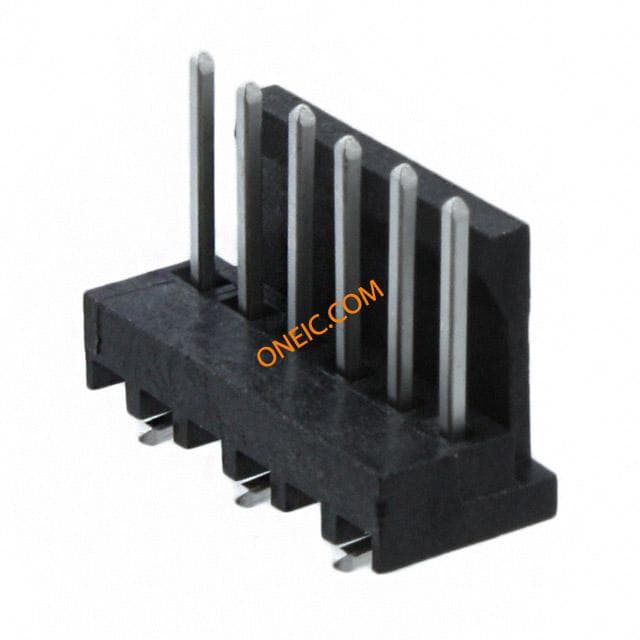

3-647166-6

3-647166-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 2.54mm Solder ST SMD MTA-100 CL Connectors CONN HEADER 6POS VERT .100 TIN Headers & Wire Housings HDR 06P VRT F-LOCK SMT Conn Wire to Board HDR 6 POS 2.54mm Solder ST SMD Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONNECTOR, WIRE TO BOARD, HEADER, 6POS, 1ROW TE Connectivity MTA-100 系列 2.54mm节距 6路 (1排) 直 PCB 针座, 焊接端接, 5A , 表面安装 6P MTA100 HDR ASSY,SM,FL,LF

¥6.3036
详情

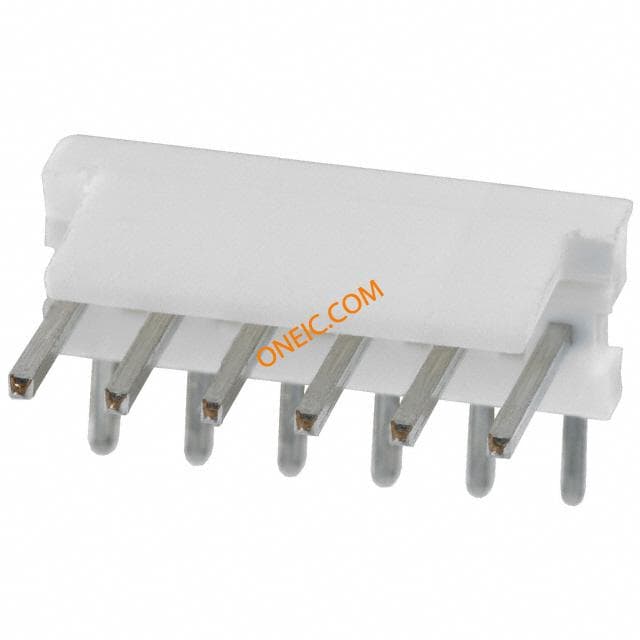

640455-6

640455-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 6POS .100 TIN Headers & Wire Housings POLARIZED HEADER 6P Right Angle Post tin Conn Wire to Board HDR 6 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-100HEADER-TIN,06PMTA100HDRASSYSQR/APOL 06P MTA100 HDR ASSY SQ R/A POL

¥0.4536
详情

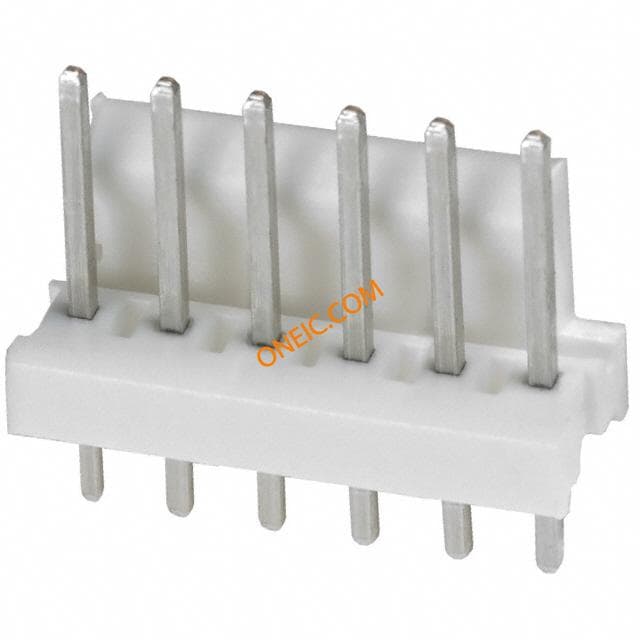

640454-6

640454-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 6POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 6 Way 1 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings POLARIZED HEADER 6P Straight Post tin Conn Wire to Board HDR 6 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, VERTICAL, 0.1", 6WAY Header,Polarized;MTA-100;6;250VAC;Polyester;Tin;CopperAlloy;0.100in. TE Connectivity MTA-100 系列 2.54mm节距 6路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 06P MTA100 HDR ASSY SQ STR POL

¥0.5861
详情
2-644861-6

2-644861-6

te connectivity / amp

Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 6POS .100 TIN Headers & Wire Housings HDR 06P VRT SHROUD Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 6POS, 2.54MM TE Connectivity MTA-100 系列 2.54mm节距 6路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 06P MTA100 SHRD HDR,W/O PEG SN

¥2.9218
详情

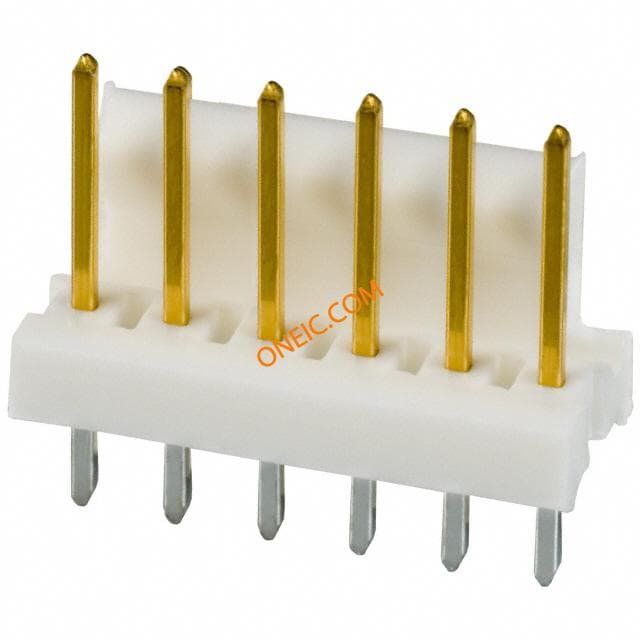

3-641213-6

3-641213-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 6POS .100 30AU Headers & Wire Housings POLARIZED HEADER 6P Straight Post gold Conn Wire to Board HDR 6 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA100 HDR ASSY PO/ST LF

¥4.2480
详情
644877-6

644877-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 6POS R/A .100 TIN Headers & Wire Housings 06P MTA100 HDR ASSY POL RET BND Conn Wire to Board HDR 6 POS 2.54mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA100 HDR ASY POL,RET BND

¥3.9384
详情
3-647001-6

3-647001-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 24AWG .100 WHITE Headers & Wire Housings 06P MTA100 PSTD CONN ASSY SN MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:Connector6 PositionsConnector Type = ReceptacleConnector Style = Closed EndMTA-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-100 Series 6 Position 24AWG Closed End Receptacle 06P MTA100 PSTD CONN ASSY SN

¥2.5200
详情
2-644803-6

2-644803-6

te connectivity / amp

Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 6POS .100 TIN Headers & Wire Housings 06P SHRD HDR R/A Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA100 SHRD HDR ASSY RA FL

¥3.2544
详情
3-647009-6

3-647009-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 24AWG .100 WHITE

详情
3-647016-6

3-647016-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 22AWG .100 RED Headers & Wire Housings 06P MTA100 PSTD CONN ASSY LF 06P MTA100 PSTD CONN ASSY LF

¥3.3120
详情
3-647019-6

3-647019-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT ST Cable Mount Headers & Wire Housings OBSOLETE MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 28AWG .100 GREEN

详情
3-641215-6

3-641215-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 6POS .100 30AU TE Connectivity MTA-100 Series 2.54mm Pitch 6 Way 1 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings FRICTION LCK HDR 6P Straight Post gold Conn Wire to Board HDR 6 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 6POS, 2.54MM MTA-100HEADERGOLD,06PMTA100HDRASSYFL/ST30AU TE Connectivity MTA-100 系列 2.54mm节距 6路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 06P MTA100 HDR ASSY FL/ST 30AU

¥4.3920
详情
暂无图片

647079-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 2.54mm Solder RA Thru-Hole Tube MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 6POS R/A .100 GOLD Headers & Wire Housings 06P MTA100 HDR HT FL 500 06P MTA100 HDR HT FLRAFB 15AU 06P MTA100 HDR HT FLRAFB 15AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥6.9840
详情

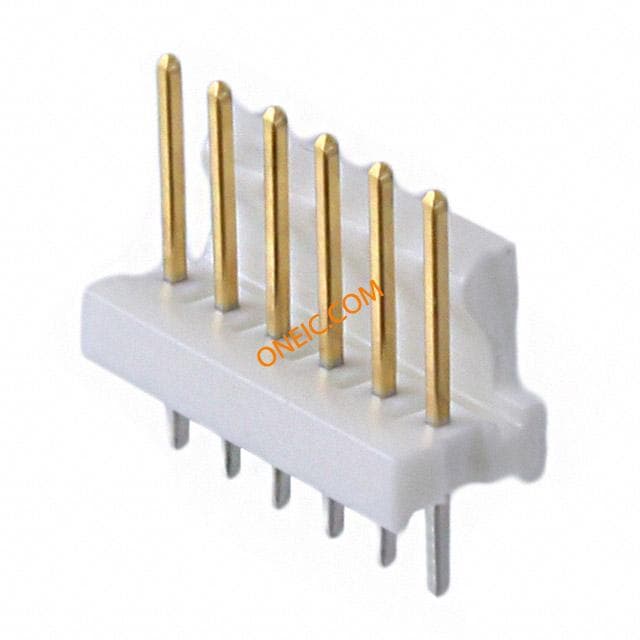

3-641126-6

3-641126-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 6POS STR .100 15GOLD Headers & Wire Housings HDR 06P VRT F-LOCK Conn Wire to Board HDR 6 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONNECTOR, WIRE TO BOARD, HEADER, 6POS, 1ROW 06P MTA100 HDR ASY FL/STR LF

¥4.0320
详情
644489-6

644489-6

TE Connectivity / AMP

Headers & Wire Housings 06P MTA100 SHRD HDR R/A 30AU MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 6POS R/A .100 30GOLD

详情
647106-6

647106-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 6POS VERT .100 TIN Headers & Wire Housings 06P MTA-100 HDR ASSY SM SN 06P MTA-100 HDR ASSY,SM,SN 06P MTA-100 HDR ASSY,SM,SN Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥5.1840
详情
647000-6

647000-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 22AWG MTA 100 Headers & Wire Housings 06P MTA100 PSTD CONN ASSY SN Conn IDC Connector F 6 POS 2.54mm IDT ST Cable Mount Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = ReceptacleConnector Type = Closed EndWire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA100 PSTD CONN ASSY SN

¥3.1896
详情

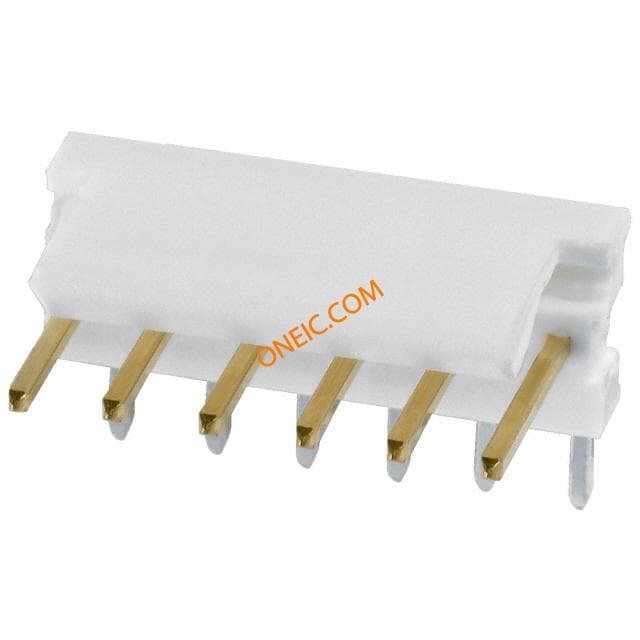

3-641214-6
