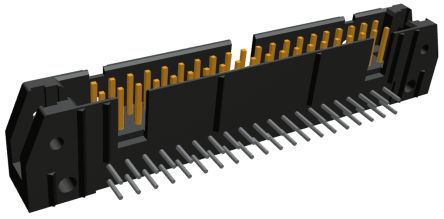

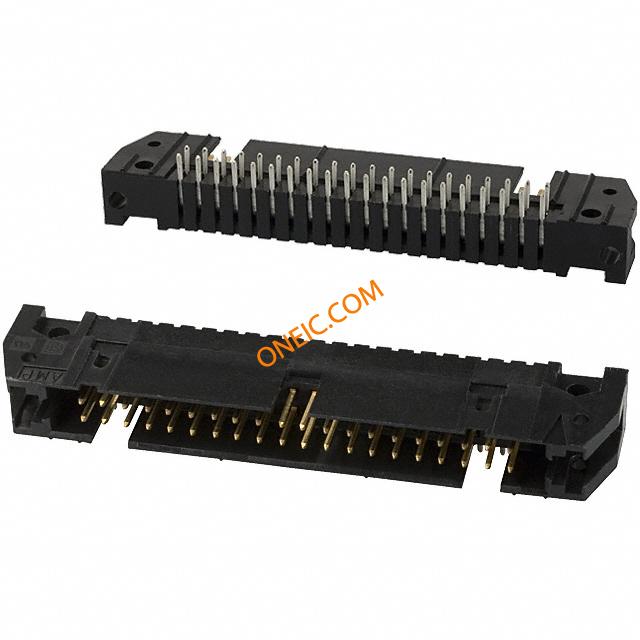

5102160-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Ejector Header HDR 40 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 40POS .100 GOLD Headers & Wire Housings 40 POS HDR 30AU R/A W/OUT LATCHES Conn Ejector Header HDR 40 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 402.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 40POS, 2.54MM Header;UniversalEjectionPinHeader;40;0.100x0.100in.;RightAngle(PCB) Pin header DIN 41651 40P, 5102160-9, TE Connectivity TE Connectivity AMP-LATCH 系列 2.54mm节距 40路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 40P RA |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Trays | 工厂包装数量 | 40 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - AMP-LATCH Series | 最大额定电流 | 1/Contact A |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Black | 深度 | 13.94 mm |
| 间距 | 2.54 mm | 高度 | 8.53 mm |
| 重量 | 0 | 包装方式 | Bulk |
| 遮蔽类型 | Yes | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 极化 | Center, Dual Polarizing Bar, Military | 第二连接器 | Without |
| 触点形状 | Square | 外壳颜色 | Black |
| 安装类型 | Right Angle | 连接器类型 | Universal Ejection Pin Headers |
| 接触镀层 | Gold Over Palladium Nickel Over Nickel|Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 2 | 封装形式 | 4-Sided |
| 电路板厚度 | 1.57 [0.062] | 外形（宽 x 高） | Standard |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 总长度 | 70.1 mm | 尺寸/外形 | 0.64 [.025] |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 配接方向 | With | 触点数 | 40 |
| 接触件端接 | :Through Hole Right Angle | 位数 | 40 |
| 中心触点材料 | 2.54 x 2.54 [.100 x .100] | 接触长度 - 配合 | 0.240" (6.10mm) |
| 端子柱长度 | 2.79 [0.110] | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Ejector Header | 连接器性别 | HDR |
| 系列 | AMP-LATCH | 产品子类型 | Headers |
| 其他规格 | Without | 加载位置数 | All |
环境参数
| 温度额定值 | Standard | 工作温度 | -65C to 105C |
