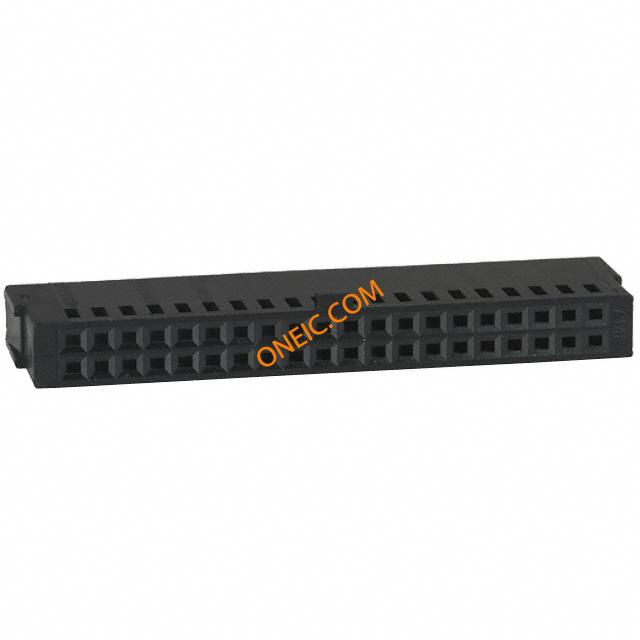

1-487223-0

点击放大查看

1-487223-0

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 40 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors 040 HOUSING FFC RCPT 100CL DR FFC & FPC Connectors 40 HSG RCPT 100CL DR Conn Housing RCP 40 POS 2.54mm Crimp ST Cable Mount Product Highlights:ConnectorNot PreloadedHousing Gender = PlugAccepts Contact Gender = Receptacle2.54 mm CenterlineSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector
分类
开关
对参数有疑问？问 AI 助手

商业参数

产品类别FFC & FPC Connectors标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级Yes

电气参数

额定电压300V供电电压300 VAC
输入电阻5000钳位电压720
最大额定电流2A最小供电电压300VAC

机械参数

颜色Black深度15.24 mm
间距2.54 mm高度7.49 mm
锁定类型不带包装方式Bulk
壳体颜色黑色电缆类型FFC
极化Center第二连接器Without
外壳颜色Black安装类型Straight
连接器类型Standard排数2
连接器用途Receptacle壳体材料Thermoplastic
总长度57.15 mm安装特性Without
包装数量1面板安装类型Without
端接样式插座FFC/FCB厚度0.05-0.13mm
配接方向With触点数40
位数40安装孔直径带有
中心触点材料2.54 [0.100]

产品信息

备注Use Extraction Tool No. 91093-1 for round wire contacts.类型Housing
连接器性别RCP系列AMP
产品特性Locking Ramp产品子类型Housing
连接类型FFC Cable

环境参数

工作温度-65°C ~ 105°C
