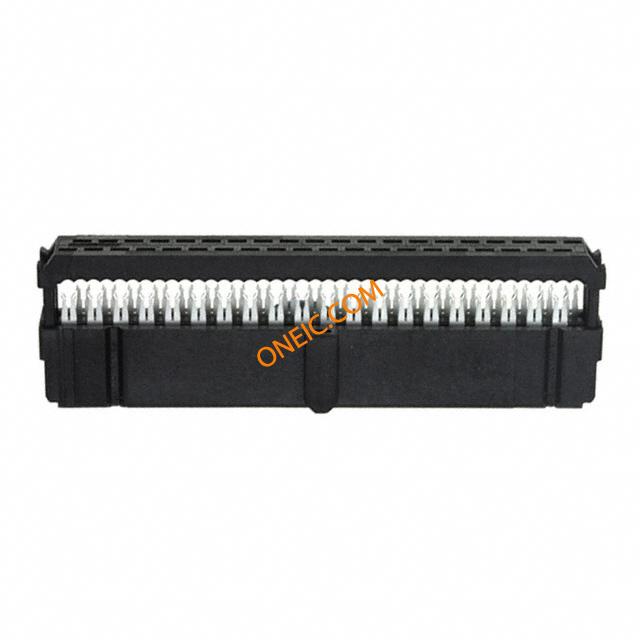

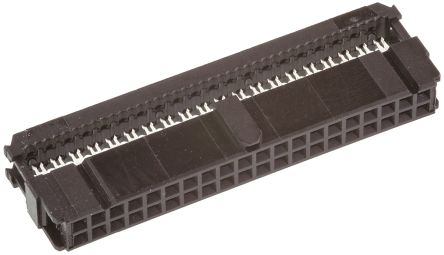

1658621-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector F 40 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 40POS W/POL 15 GOLD 40way polarised skt w/o strain relief Headers & Wire Housings CNTR PLRZD RECPT 40P NOVO Conn IDC Connector F 40 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 40ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board SOCKET, NOVOLATCH, 40WAY AMP-LATCHNOVOReceptacle,40Position,ForRibbonCable,Gold(15) Plug; IDC; female; PIN:40; IDC; for ribbon cable; 1.27mm Multipole socket DIN 41651 40P, 1658621-9, TE Connectivity TE Connectivity AMP-LATCH Novo 系列 2行 40路 2.54mm节距 直角 电缆安装 母 IDC 连接器 40 NOVO MIL/CTR 15DP,LEAD FREE |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 量程（°/s） | :TE - AMP-LATCH Novo Series | 接触电阻 | :15mohm |
| 击穿电压 | :1000V | 最大额定电流 | 1A |
| 最小供电电压 | 250VAC | 触点额定电流 | :1A |
机械参数
| 颜色 | Black | 深度 | 7.49 mm |
| 间距 | 2.54 mm | 高度 | 15.97 mm |
| 重量 | 0.1 | 包装方式 | Tube |
| 导线类型 | Ribbon Cable | 出线方向 | Without |
| 导线线规 | 26-28 AWG | 排间距 | 0.100" (2.54mm) |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 引脚间距 | :2.54mm | 柱间距 | :2.54mm |
| 极化 | Center & Military | 第二连接器 | Without |
| 外壳颜色 | Black | 安装类型 | No |
| 电缆端类型 | Without | 连接器类型 | NOVO |
| 接触镀层 | Gold Over Nickel | 安装样式 | Cable |
| 排数 | 2 | 封装形式 | :Black Thermoplastic |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 总长度 | 55.37 mm | 安装特性 | Without |
| 包装数量 | 1 | 电缆端接方式 | IDC |
| 连接器 - 电缆 | plug | 端接样式 | IDC |
| 第一触头极性 | Socket (Female) | 配接方向 | With |
| 触点数 | 40 | 接触件端接 | :IDC / IDT |
| 位数 | 40 | 中心触点材料 | 2.54 x 2.54 [.100 x .100] |
| 接触镀层厚度 | 15µin (0.38µm) | 触点材料 - 镀层 | gold plated |
| 第一连接器安装类型 | :Cable | 第一连接器安装特征 | 2x20 |
产品信息
| SPG | 1 | 类型 | IDC Connector |
| 连接器性别 | F | 系列 | AMP-LATCH NOVO |
| 产品特性 | Feed Through, Polarizing Key | 产品子类型 | Receptacles / Sockets - Housings |
| 连接类型 | Ribbon Cable | 单元数量 | 1 |
| 带调制解调器控制 | Yes | 应用细节 | Wire-to-Board |
环境参数
| 插拔次数 | :75 | 工作温度 | +105°C |
文档与媒体
相关型号
5499913-9
te connectivity / amp
Conn Ejector Header HDR 40 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 40POS .100 GOLD Headers & Wire Housings 40 POS HDR 15AU R/A W/SHORT LATCHES Conn Ejector Header HDR 40 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 402.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 40POS, 2.54MM TE Connectivity AMP-LATCH 系列 2.54mm节距 40路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 40P RA SHT LAT
5102153-9
te connectivity / amp

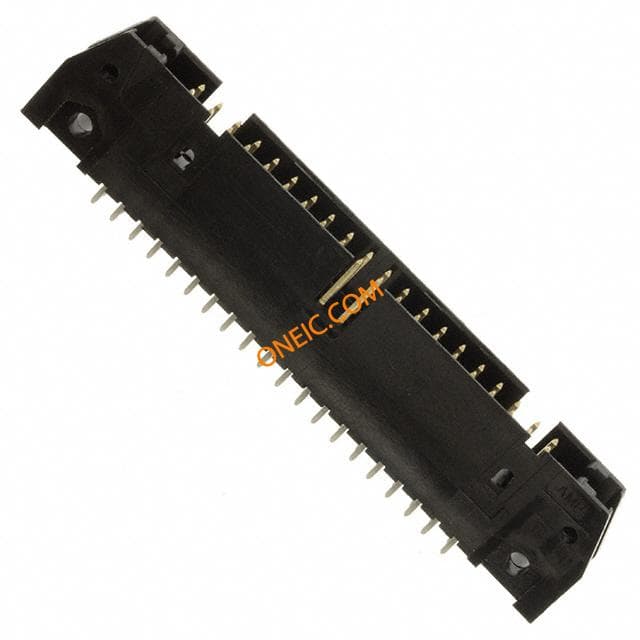

Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 40POS .100 GOLD AMP LATCH, Universal Ejection Pin Header Headers & Wire Housings 40 POS HDR 15AU W/OUT LATCHES Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 402.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 40POS, 2.54MM AMPLATCH,UniversalEjectionPinHeader,40POS.,VerticalMount,.100CL A/L UNIV HDR 40P VERT
5103309-8
te connectivity / amp
Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 40POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 40 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings HDR VERT DOUBLE 40P low profile Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 402.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 40POS, 2.54MM HEADER,PIN,AMP-LATCH,40POS,2.54X2.54,VERTICAL,LOWPROFILE,PCB,BLACK Pin header DIN 41651 40P, 5103309-8, TE Connectivity TE Connectivity AMP-LATCH 系列 2.54mm节距 40路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 40P VERT BLACK
2-111446-3
te connectivity / amp
Conn IDC Connector PL 40 POS 2.54mm IDT RA Cable Mount Bulk Ribbon Cable Connectors (AMP-LATCH) CONN IDC PIN 40POS 30AU NO LATCH Headers & Wire Housings 040 UNIV I/O 30DP NO EARS Conn IDC Connector PL 40 POS 2.54mm IDT RA Cable Mount Bulk Product Highlights:Connector Type = Universal I/ONumber of Positions = 40PlugWithout Mating PolarizationTerminate To Ribbon CableSearch Keywords:input/output, paddleboard, paddle board HEADER, IDC, NO LATCH, 40WAY 040 UNIV I/O 30DP NO EARS
5102156-9
te connectivity / amp
Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 40POS .100 GOLD Headers & Wire Housings 100X100 HDR 2X020P VERT Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard ProfileNumber of Positions = 40Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 40P VERT
5102321-9
te connectivity / amp
Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 40POS .100 GOLD Header Vertical Pin 40 way Amp-Latch Headers & Wire Housings 100X100 HDR 2X020P VERT EJE Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 402.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 40POS, 2.54MM HeaderVerticalPin40wayAmp-Latch TE Connectivity AMP-LATCH 系列 2.54mm节距 40路 (2排) 直 PCB 针座, 焊接端接 , 通孔 A/L UNIV HDR 40P VERT LG LAT
3-1761603-3
te connectivity / amp
Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 40POS 30AU TE Connectivity 3-1761603 Series 2.54mm Pitch 40 Way 2 Row Straight PCB Header, Solder Termination Headers & Wire Housings PIN HEADER 40 POS VERT LOW PROFILE Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 402.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 40WAY HEADER,PIN,IDC,AMP-LATCH,40POS,LOWPROFILE,PCB,VERTICAL,BLUE TE Connectivity AMP-LATCH 系列 2.54mm节距 40路 (2排) 直 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 40P VERT BLUE
3-1761605-3
te connectivity / amp
Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 40POS 30AU Headers & Wire Housings IDC CONNECTOR Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 402.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, R/A, 40WAY IDC LOW PRO HDR 40P RA BLUE
3-5499376-0
te connectivity / amp
Conn Ejector Header HDR 50 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 40POS R/A .100 GOLD A/L UNIV HDR 40P RA SHT LAT BLUE
5499910-9
te connectivity / amp
Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 40POS .100 GOLD Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 402.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 40POS, 2.54MM HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,40POS,2.54X2.54,PCB,VERTICAL TE Connectivity AMP-LATCH 系列 2.54mm节距 40路 (2排) 直 PCB 针座, 焊接端接 , 通孔 A/L UNIV HDR 40P VERT SHT LAT
5499786-9
te connectivity / amp
Conn Ejector Header HDR 40 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 40POS .100 GOLD Headers & Wire Housings 40 POS HDR 15AU R/A W/LONG LATCHES Conn Ejector Header HDR 40 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 402.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, RIGHT ANGLE, 40WAY Conn Ejector Header HDR 40 POS 2.54mm A/L UNIV HDR 40P RA LG LAT
5103310-8
te connectivity / amp
Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 40POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 40 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 100X100 HDR 2X020P R/A LOW PROFILE Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 402.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 40POS, 2.54MM Header,LowProfile;Shrouded;SquareRight;CopperAlloyPlated;40;Gold TE Connectivity AMP-LATCH 系列 2.54mm节距 40路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 40P RA BLACK
1-1761609-3
te connectivity / amp
Conn Ejector Header HDR 40 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A .100 40POS Headers & Wire Housings IDC LOW PRO HDR 40P RA SHT LAT BLK Conn Ejector Header HDR 40 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 402.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, IDC LOW PRO HDR 40P RA SHT LAT
5102155-9
te connectivity / amp
Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 40POS .100 GOLD Headers & Wire Housings 100X100 HDR 2X020P VERT Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Product Highlights:PreloadedHousing Gender = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 40P VERT
1-1761607-3
te connectivity / amp
Conn Ejector Header HDR 40 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A .100 40POS Headers & Wire Housings 100X100 HDR 2X020P R/A LPRO Conn Ejector Header HDR 40 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 402.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, TE Connectivity AMP-LATCH 系列 2.54mm节距 40路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 40P RA LG LAT BLK
4-1634688-0
te connectivity / amp

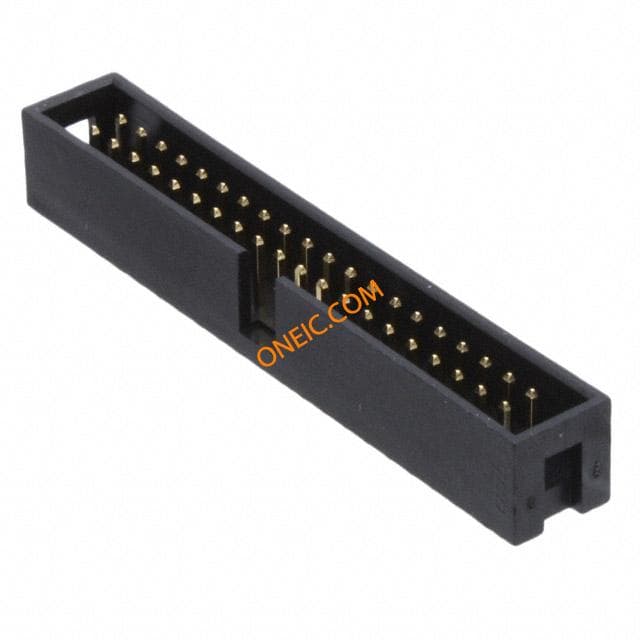

Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 40POS .100 VERT GOLD TE Connectivity 4-1634688 Series 2.54mm Pitch 40 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings HDR STRAIGHT 40P Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 402.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, BOX, STRAIGHT, 40WAY 40way2rowverticalthroughholeheader Pin header DIN 41651 40P, 4-1634688-0, TE Connectivity
5499345-9
te connectivity / amp
Conn Ejector Header HDR 40 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 40POS .100 GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 40 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Conn Ejector Header HDR 40 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 402.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 40POS, 2.54MM AMPLATCHHEADER-PIN,4SIDEDRIGHTANGLE,40P TE Connectivity AMP-LATCH 系列 2.54mm节距 40路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 40P RA SHT LAT
5102160-9
te connectivity / amp
Conn Ejector Header HDR 40 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 40POS .100 GOLD Headers & Wire Housings 40 POS HDR 30AU R/A W/OUT LATCHES Conn Ejector Header HDR 40 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 402.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 40POS, 2.54MM Header;UniversalEjectionPinHeader;40;0.100x0.100in.;RightAngle(PCB) Pin header DIN 41651 40P, 5102160-9, TE Connectivity TE Connectivity AMP-LATCH 系列 2.54mm节距 40路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 40P RA
5104340-8
te connectivity / amp
Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO 40POS R/A GOLD Headers & Wire Housings LOW PRO HDR 40P RA Pin and Pinless Headers (AMP-LATCH) Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 402.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L LOW PRO HDR 40P RA HT
5499141-9
te connectivity / amp

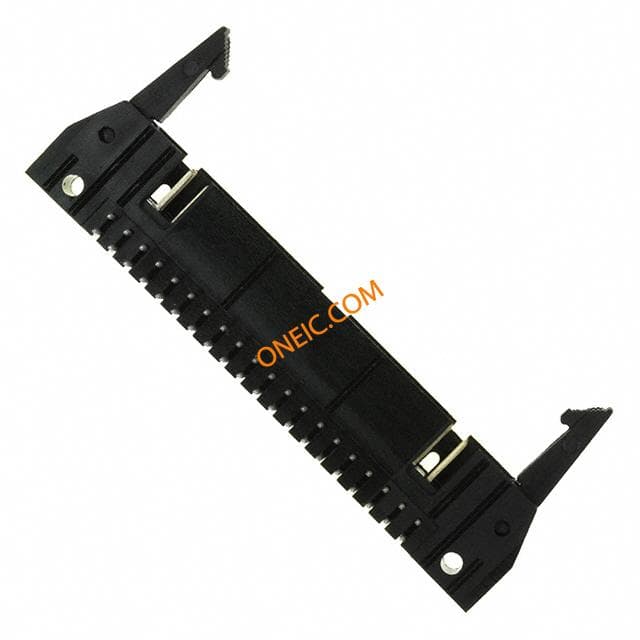

Conn Ejector Header HDR 40 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 40POS .100 GOLD TE Connectivity 5499141 Series 2.54mm Pitch 40 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 40 POS HDR 30AU R/A W/LONG LATCHES Conn Ejector Header HDR 40 POS 2.54mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard ProfileNumber of Positions = 40Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, RIGHT ANGLE, 40WAY HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,40POS,2.54X2.54,PCB,RIGHTANGLE TE Connectivity AMP-LATCH 系列 2.54mm节距 40路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 40P RA LG LAT
