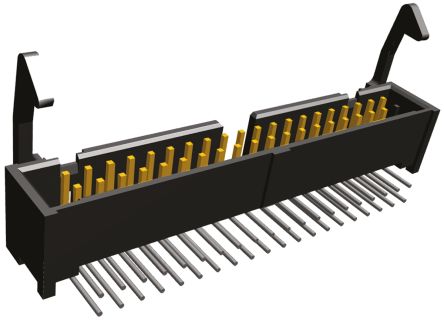

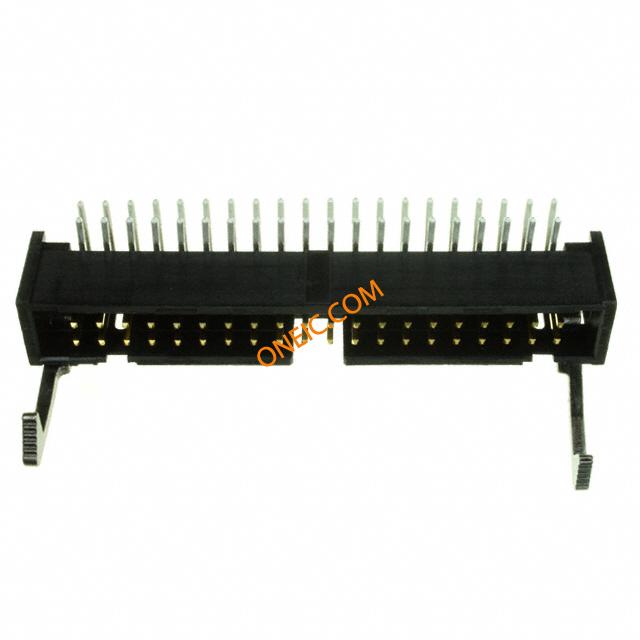

1-1761607-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Ejector Header HDR 40 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A .100 40POS Headers & Wire Housings 100X100 HDR 2X020P R/A LPRO Conn Ejector Header HDR 40 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 402.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, TE Connectivity AMP-LATCH 系列 2.54mm节距 40路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 40P RA LG LAT BLK |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 9 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 250 V 交流 | 开关功能 | Ejection |
| 供电电压 | 250 | 输入电阻 | 1000 – 5000 |
| 连接器阻抗 | Top | 最大额定电流 | 1/Contact A |
| 低功耗链路范围 | 带有 | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 深度 | 25.83 mm |
| 间距 | 2.54 mm | 高度 | 9.19 mm [ .36 in ] |
| 长度 | 58.52 mm [ 2.3 in ] | 底座类型 | 不带 |
| 包装方式 | Tube | 遮蔽类型 | Yes |
| 壳体颜色 | 黑色 | 端部尺寸（如SMD/SMT、14mm等） | 3.76 mm [ .148 in ] |
| 引脚样式 | 直角 | 方向 | 直角 |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 柱间距 | 2.54 x 2.54 [.100 x .100] |
| 极化 | Center, Military | 第二连接器 | Without |
| 触点形状 | Square | 外壳颜色 | Black |
| 安装类型 | Right Angle | 连接器类型 | Pin Header |
| 接触镀层 | Gold Over Palladium Nickel Over Nickel|Gold Over Nickel | 紧固类型 | Latch Lock/Eject Hooks |
| 安装样式 | Through Hole | 排数 | 2 |
| 封装形式 | 4-Sided | 外壳材料（壳体） | 4 面 |
| 驱动力 | 带有 | 插入件材料 | 磷青铜 |
| 外形（宽 x 高） | Low | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 总长度 | 3.81 [0.150] |
| 包装数量 | 9 | 面板安装类型 | 通孔 |
| 尺寸/外形 | 0.64 [.025] | 端接排数 | 焊接 |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 外径 | .64 mm [ .025 in ] | 配接方向 | With |
| 触点数 | 40 | 位数 | 40 |
| 兼容外壳尺寸（如TM-700等） | AMP 锁闩母端 | 触头长度-柱 | 信号（数据） |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 锡 |
| 接触长度 - 配合 | 0.237" (6.02mm) | 端子柱长度 | 2.60 [0.102] |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Ejector Header | 连接器性别 | HDR |
| 系列 | AMP-LATCH | 覆盖范围 | 覆盖 |
| 极性 | 带有 | 产品子类型 | Headers |
| 其他规格 | With | 加载位置数 | All |
环境参数
| 温度额定值 | Standard | 工作温度 | -65C to 105C |
