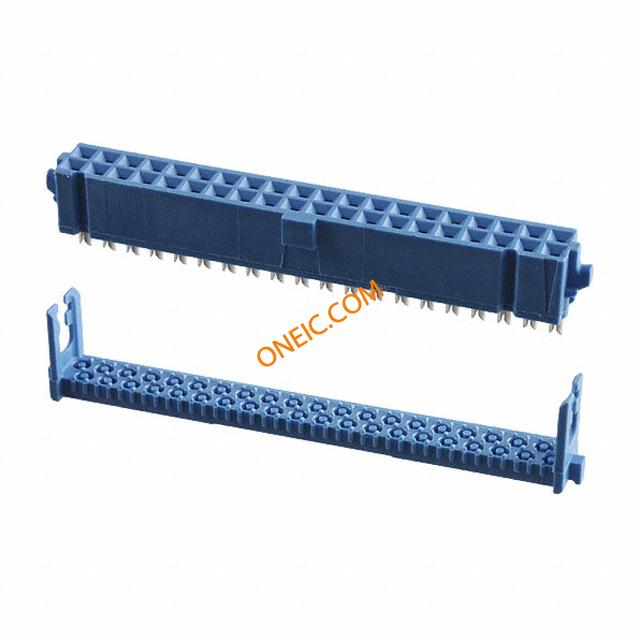

2-1658526-1

点击放大查看

2-1658526-1

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 40 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 40POS VERT .100 GOLD Headers & Wire Housings IDC RCPT 40P W/STR RLF Conn IDC Connector F 40 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 40ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 40WAY CONNECTOR,RECEPTACLE,AMP-LATCH609,40POSITION,MATINGPOLARIZATION 609-4041LF FEM SOCKT,LEAD FREE
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMP-LATCH其他名称216585261
零件号别名512-6843产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量50

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE - 609 Series击穿电压:500V
最大额定电流1/Contact A绝缘电阻:1Gohm
触点额定电流:1A

机械参数

颜色Blue深度7.05 mm
间距2.54 mm高度12.37 mm
重量0.008材料（通用）:Glass Feinforced Thermoplastic
包装方式Bulk导线类型Ribbon Cable
出线方向With导线线规28-30 AWG
排间距0.100" (2.54mm)端接方式IDT
触头类型Female Socket柱间距:2.54mm
极化Center & Military第二连接器Without
外壳颜色Blue安装类型No
电缆端类型Without连接器类型AMP-LATCH
接触镀层Gold Over Nickel安装样式Cable
排数2触头材料Beryllium Copper
壳体材料Thermoplastic Glass Reinforced总长度55.27 mm
安装特性Without主要材料InterconnectSystem
电缆端接方式IDC端接样式Through Hole
第一触头极性Socket (Female)配接方向With
触点数40接触件端接:IDC / IDT
位数40中心触点材料2.54 x 2.54 [.100 x .100]
接触镀层厚度30µin (0.76µm)第一连接器安装类型:Cable

产品信息

类型IDC Connector连接器性别F
系列AMP-LATCH产品特性Polarizing Key, Strain Relief
极性:Bump/Clip制造商全称AMP-LATCH
产品子类型Receptacles / Sockets - PCB连接类型Ribbon Cable
带调制解调器控制Yes

环境参数

插拔次数:200工作温度-55C to 125C

文档与媒体

在线文档
2-1658526-1?RQPN=2-1658526-1
