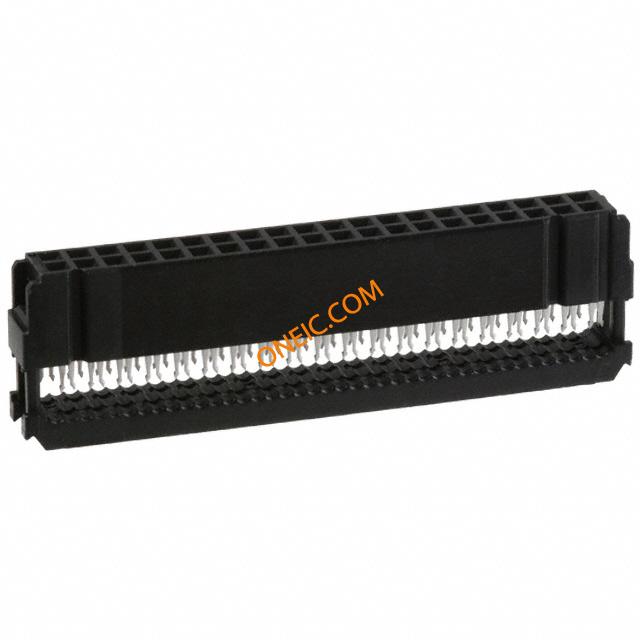

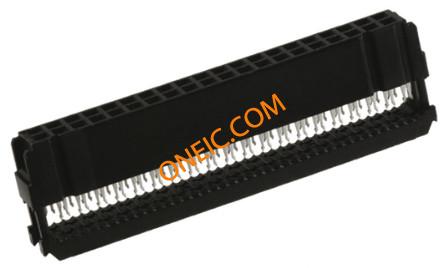

1658620-9

点击放大查看

1658620-9

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 40 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 40POS 15 GOLD Connector,Receptacle,Novo,40,Gold(15) Connector; Receptacle; Novo; 40; Gold (15); Tin-Lead; 0.100 in. x 0.100 in. Conn IDC Connector F 40 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 40ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board Connector,Receptacle;Novo;40;Gold(15);Tin-Lead;0.100in.x0.100in. 40 NOVO MIL 15DP, LEAD FREE
分类
连接器解决方案矩形连接器FPC/FFC矩形连接器
对参数有疑问？问 AI 助手

商业参数

标准包装数量Rail / Tube

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Not relevant for lead free processUL档案号E28476
CSA档案号LR 7189标准编号CSA, UL
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

额定电压250供电电压250
接触电阻15 mohm输入电阻5000
连接器阻抗刺破式压接 (IDC)最大额定电流1A
最小供电电压250VAC连接器类型 - 电压输入音叉

机械参数

颜色Black深度6.09 mm
间距2.54 mm宽度6.1 mm [ .2402 in ]
高度15.97 mm长度2.18in
底座类型不带包装方式Tube
导线类型Ribbon Cable壳体颜色黑色
出线方向Without电缆类型带状电缆
导线线规26-28 AWG排间距0.100" (2.54mm)
端接方式IDT触头类型Female Socket
极化Military第二连接器Without
外壳颜色Black安装类型No
电缆端类型Without连接器类型NOVO
接触镀层Gold Over Palladium Nickel Over Nickel|Gold Over Nickel法兰特征否
安装样式Cable排数2
驱动力不带插入件材料磷青铜
触头材料Phosphor Bronze壳体材料Thermoplastic
总长度55.37 mm安装特性Without
包装数量60面板安装类型通孔 - 焊接
尺寸/外形.08 – .15 mm², 158 – 296 CMA, 28 – 26 美国线规电缆端接方式IDC
端接样式插座第一连接器类型插针接头
配接方向With触点数40
绝缘材料 - 类型.787 – .94 mm [ .031 – .037 in ]位数40
触头长度-柱信号（数据）安装孔直径带有
中心触点材料2.54 x 2.54 [.100 x .100]接触件表面处理 - 配合锡
接触镀层厚度15µin (0.38µm)

产品信息

备注Receptacle can be used in applications requiring non-polarization, as well as m类型IDC Connector
连接器性别F系列AMP-LATCH, NOVO
产品特性Feed Through极性带有
产品子类型连接器连接类型Ribbon Cable
带调制解调器控制YesDigiKey可编程不带

环境参数

工作温度+105°C

文档与媒体

PDF 文档
1599153.pdf
