1658624-9

点击放大查看

1658624-9

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 40 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 40POS POLAR GOLD Headers & Wire Housings 40 NOVO DUAL 30DP, LEAD FREE Ribbon Cable Connectors (AMP-LATCH) Product Highlights:Connector Type = NOVONumber of Positions = 40ReceptacleMating Polarization Type = Dual Polarizing BarWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board 40 NOVO DUAL 30DP, LEAD FREE
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

标准包装规格50标准包装数量Rail / Tube

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Not relevant for lead free processUL档案号E28476
CSA档案号LR 7189标准编号CSA, UL
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

额定电压250供电电压250
输入电阻5000连接器阻抗刺破式压接 (IDC)
最大额定电流1连接器类型 - 电压输入音叉

机械参数

颜色Black间距2.54 mm
宽度7.49 mm [ .2949 in ]高度15.16 mm [ .5968 in ]
长度55.37 mm [ 2.1799 in ]底座类型不带
包装方式Tube导线类型Ribbon Cable
壳体颜色黑色出线方向Without
电缆类型带状电缆排间距0.100" (2.54mm)
端接方式IDT触头类型Forked
极化Dual Polarizing Bar第二连接器Without
外壳颜色Black安装类型No
电缆端类型Without连接器类型NOVO
接触镀层Gold Over Palladium Nickel Over Nickel|Gold Over Nickel法兰特征否
安装样式Cable排数2
驱动力不带插入件材料磷青铜
触头材料Phosphor Bronze壳体材料Thermoplastic
安装特性Without包装数量50
面板安装类型通孔 - 焊接尺寸/外形.08 – .15 mm², 158 – 296 CMA, 28 – 26 美国线规
电缆端接方式IDC端接样式IDC
第一连接器类型插针接头配接方向With
触点数40绝缘材料 - 类型.787 – .94 mm [ .031 – .037 in ]
位数40触头长度-柱信号（数据）
安装孔直径带有接触件表面处理 - 配合锡
接触镀层厚度30µin (0.76µm)

产品信息

备注Receptacle can be used in applications requiring non-polarization, as well as m类型IDC Connector
连接器性别F产品特性Feed Through, Polarizing Key
极性带有产品子类型Receptacles / Sockets - Housings
连接类型Ribbon Cable带调制解调器控制Yes
DigiKey可编程不带应用细节Wire-to-Board

环境参数

工作温度-65 – 105 °C [ -85 – 221 °F ]

文档与媒体

在线文档
1658624-9?RQPN=1658624-9

相关型号

5499913-9

5499913-9

te connectivity / amp

Conn Ejector Header HDR 40 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 40POS .100 GOLD Headers & Wire Housings 40 POS HDR 15AU R/A W/SHORT LATCHES Conn Ejector Header HDR 40 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 402.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 40POS, 2.54MM TE Connectivity AMP-LATCH 系列 2.54mm节距 40路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 40P RA SHT LAT

¥11.5600
详情
5103309-8

5103309-8

te connectivity / amp

Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 40POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 40 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings HDR VERT DOUBLE 40P low profile Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 402.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 40POS, 2.54MM HEADER,PIN,AMP-LATCH,40POS,2.54X2.54,VERTICAL,LOWPROFILE,PCB,BLACK Pin header DIN 41651 40P, 5103309-8, TE Connectivity TE Connectivity AMP-LATCH 系列 2.54mm节距 40路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 40P VERT BLACK

¥9.0600
详情
2-111446-3

2-111446-3

te connectivity / amp

Conn IDC Connector PL 40 POS 2.54mm IDT RA Cable Mount Bulk Ribbon Cable Connectors (AMP-LATCH) CONN IDC PIN 40POS 30AU NO LATCH Headers & Wire Housings 040 UNIV I/O 30DP NO EARS Conn IDC Connector PL 40 POS 2.54mm IDT RA Cable Mount Bulk Product Highlights:Connector Type = Universal I/ONumber of Positions = 40PlugWithout Mating PolarizationTerminate To Ribbon CableSearch Keywords:input/output, paddleboard, paddle board HEADER, IDC, NO LATCH, 40WAY 040 UNIV I/O 30DP NO EARS

¥31.2800
详情
5102156-9

5102156-9

te connectivity / amp

Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 40POS .100 GOLD Headers & Wire Housings 100X100 HDR 2X020P VERT Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard ProfileNumber of Positions = 40Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 40P VERT

¥11.6280
详情

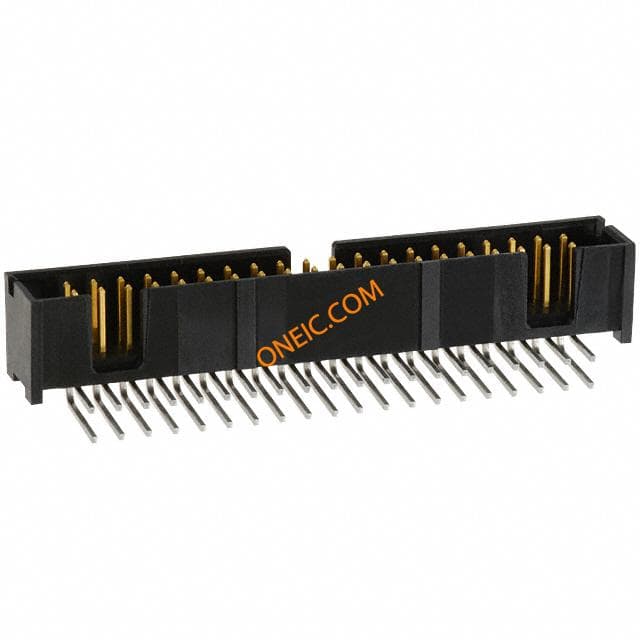

5103311-8

5103311-8

te connectivity / amp

Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 40POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 40 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings HDR R.A. DOUBLE 40P low profile Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 40POS, 2.54MM HEADER,PIN,AMP-LATCH,40POS,2.54X2.54,RIGHTANGLE,LOWPROFILE,PCB,BLAC Pin header DIN 41651 40P, 5103311-8, TE Connectivity TE Connectivity AMP-LATCH 系列 2.54mm节距 40路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 40P RA BLACK

¥11.1520
详情
5102321-9

5102321-9

te connectivity / amp

Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 40POS .100 GOLD Header Vertical Pin 40 way Amp-Latch Headers & Wire Housings 100X100 HDR 2X020P VERT EJE Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 402.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 40POS, 2.54MM HeaderVerticalPin40wayAmp-Latch TE Connectivity AMP-LATCH 系列 2.54mm节距 40路 (2排) 直 PCB 针座, 焊接端接 , 通孔 A/L UNIV HDR 40P VERT LG LAT

¥27.1800
详情

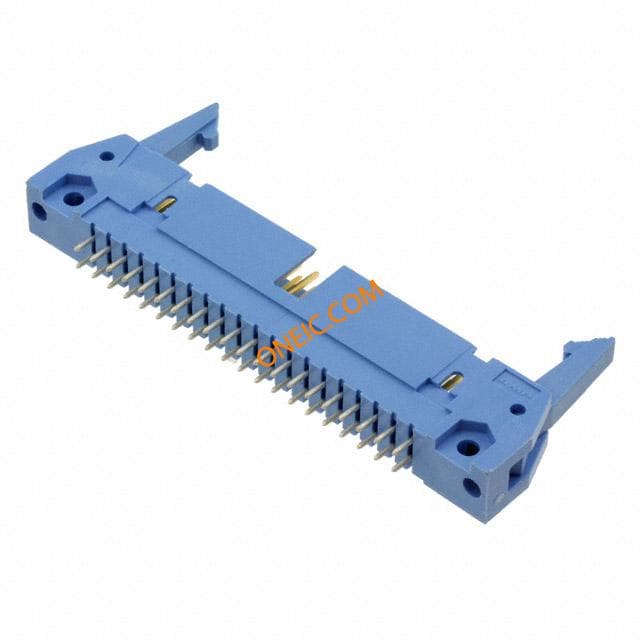

2-5499206-9
