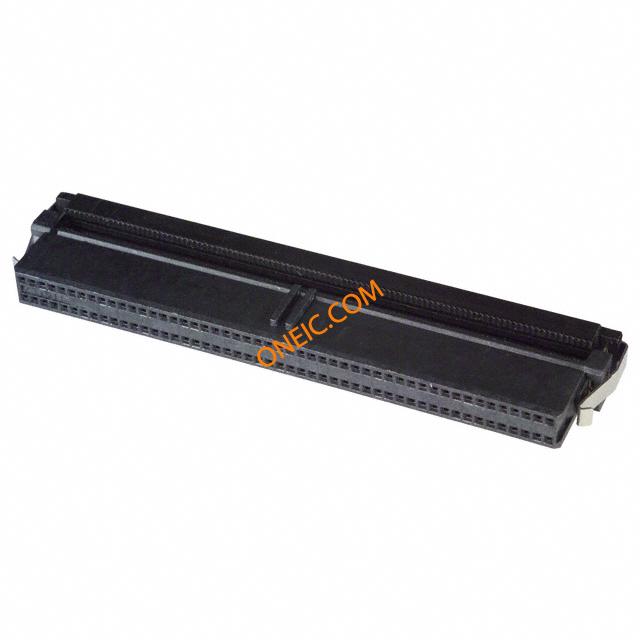

2-111196-4

点击放大查看

2-111196-4

制造商
TE Connectivity Ltd.
描述Conn IDC Connector RCP 100 POS 1.27mm IDT RA Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 100PS .050X.100" IDC Connector IDC 100 way socket System 50 Headers & Wire Housings 100 POS RECEPT IDC DUAL ROW Conn IDC Connector RCP 100 POS 1.27mm IDT RA Cable Mount Product Highlights:Receptacle AssemblyNumber of Positions = 100Number of Rows = DualWith Mating Connector LockWire/Cable Type = Ribbon CableSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU WIRE-BOARD CONNECTOR RECEPTACLE 100POS 1.27MM Connectors,ribboncablereceptacle,doublerow,100position TE Connectivity AMP-LATCH System 50 系列 2行 100路 1.27mm节距 直角 母 IDC 连接器 , 电缆安装 100 RCPT SYSTEM 50, LEAD FREE
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Trays
工厂包装数量20

合规参数

RoHSLead free / RoHS Compliant海关税号85366910

电气参数

量程（°/s）:TE - AMPMODU System 50 Series额定电压30 V ac
开关功能Latch接触电阻30 mohm
最大额定电流0.5A绝缘电阻5000 MOhms
最小供电电压30VAC

机械参数

颜色Black深度6.45 mm
间距1.27 mm高度14.73 mm
重量0.005包装方式Bulk
导线类型Ribbon Cable导线线规30-32 AWG
排间距0.100" (2.54mm)端接方式IDT
触头类型Female Socket外壳颜色Black
安装类型Free Hanging (In-Line)连接器类型Receptacle
接触镀层Gold Over Nickel紧固类型Latch Lock
安装样式Wire排数2
触头材料Phosphor Bronze壳体材料Liquid Crystal Polymer
总长度70.1 mm电缆端接方式IDC
端接样式IDC第一触头极性Socket (Female)
触点数100接触件端接:IDC / IDT
位数100接触镀层厚度30µin (0.76µm)

产品信息

类型IDC Connector连接器性别RCP
系列AMP产品特性Feed Through
产品子类型Receptacles / Sockets - Housings

环境参数

工作温度+105°C

文档与媒体

在线文档
2-111196-4?RQPN=2-111196-4

相关型号

215716-1

215716-1

te connectivity / amp

Conn D-Subminiature SKT 15 POS Crimp ST Cable Mount 15 Terminal 1 Port D-Sub Standard Connectors 15P HDP20 REC ASSY Standard Cable Connectors CONN RCPT 15POS CRIMP SNAP METAL Conn D-Subminiature SKT 15 POS Crimp ST Cable Mount 15 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDP-20 (Crimp Snap)Number of Positions = 15ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub SOCKET, DSUB, DA 15WAY

¥9.0600
详情
6-104549-0

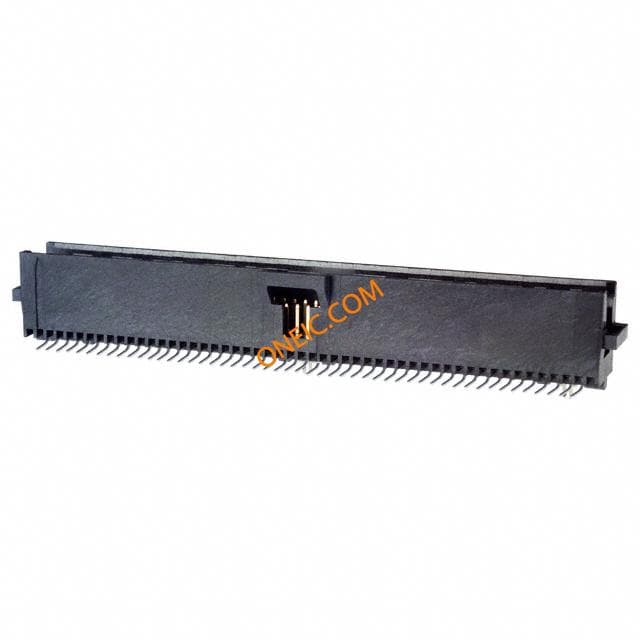

6-104549-0

te connectivity / amp

Conn Shrouded Header HDR 100 POS 1.27mm Solder ST SMD Tube .050 X .100 AMPMODU System 50 CONN HEADER 100PS .050" STR GOLD Header vertical 100way AmpModu system 50 Headers & Wire Housings 100 POS SMT HDR VERT DUAL ROW Conn Shrouded Header HDR 100 POS 1.27mm Solder ST SMD Tube Product Highlights:Header AssemblyNumber of Positions = 100Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU SHROUDED HEADER HEADERASSEMBLY,AMPMODU,SYSTEM50,100POSITION,DUALROW,SHROUDED,VERTICAL TE Connectivity AMPMODU System 50 系列 2.54mm节距 100路 (2排) 直 PCB 针座, 焊接端接 , 表面安装 100 SYS50 S/M HDR DRST SHRDSN

¥60.8600
详情
1-104069-7

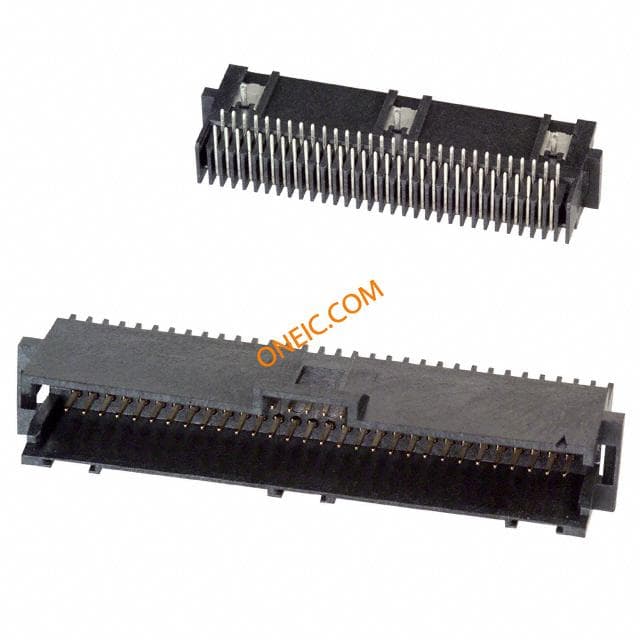

1-104069-7

te connectivity / amp

Conn Shrouded Header HDR 100 POS 1.27mm Solder RA Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER RTANG .050 100POS AU Headers & Wire Housings 100 SYS 50 DRRA SHRD 210 Conn Shrouded Header HDR 100 POS 1.27mm Solder RA Thru-Hole Tube Product Highlights:Header AssemblyNumber of Positions = 100Number of Rows = DualShroudedRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 100 SYSTEM 50 HDR DRRA SHRD

¥137.2920
详情
1-104549-0

1-104549-0

te connectivity / amp

Conn Shrouded Header HDR 100 POS 1.27mm Solder ST SMD Tube Headers & Wire Housings SYS50 SMT HDR 100P SHROUDED .050 X .100 AMPMODU System 50 CONN HEADER VERT .050 100POS AU Conn Shrouded Header HDR 100 POS 1.27mm Solder ST SMD Tube Product Highlights:Header AssemblyNumber of Positions = 100Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 100 SYS50 SRFMNT HDR DRST SHRD

¥63.9200
详情
6-104068-7

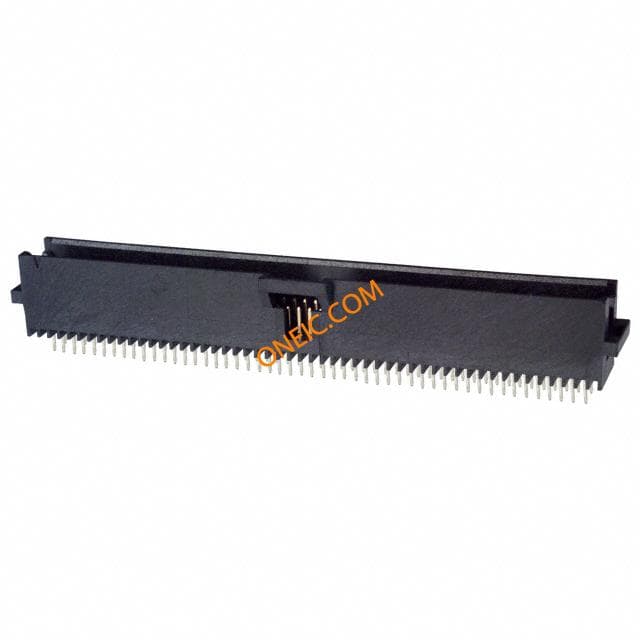

6-104068-7
