6-104069-7

点击放大查看

6-104069-7

制造商
TE Connectivity Ltd.

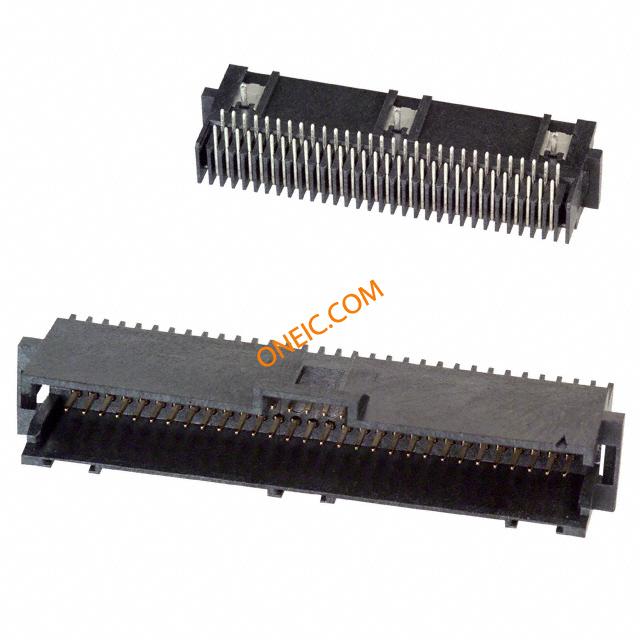

描述Conn Shrouded Header HDR 100 POS 1.27mm Solder RA Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER 100POS .050"R/A GOLD Headers & Wire Housings 100 POS HDR R/A DUAL ROW Conn Shrouded Header HDR 100 POS 1.27mm Solder RA Thru-Hole Tube Product Highlights:Header AssemblyNumber of Positions = 100Number of Rows = DualShroudedRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 100 sys 50 hdr drra shrd sn
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU产品类别Headers & Wire Housings
标准包装数量Rail / Tube工厂包装数量7

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
标准CSA LR7189, UL E28476无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

额定电压30 VAC供电电压30
额定交流电压30连接器阻抗制动器闭锁
击穿电压500最大额定电流1
绝缘电阻5,000最小输入电压30VAC
最小供电电压30VAC保护额定电压（VPR）500 V

机械参数

颜色Black深度13.72 mm
间距1.27 mm高度8.89 mm
底座类型带有包装方式Tube
遮蔽类型Yes壳体颜色黑色
引脚样式圆形排间距0.100" (2.54mm)
稳定剂Without端接方式Solder
第二连接器With外壳颜色Black
安装类型Through Hole连接器类型Shrouded
接触镀层Gold Over Nickel安装样式Thru Hole
排数2外壳材料（壳体）2- 面
高度（英寸）0.350" (8.89mm)插入件材料铜合金
触头材料Phosphor Bronze壳体材料Thermoplastic
总长度69.08安装特性压具柱体
包装数量Tube面板安装类型通孔
端接样式Through Hole外径.381 mm [ .015 in ]
触点数100端接表面处理带罩
位数100安装孔直径带有
接触长度 - 配合0.125" (3.18mm)端子柱长度2.54 [0.100]
接触镀层厚度30µin (0.76µm)静电放电屏蔽不带
端接镀层厚度150 – 250

产品信息

备注Note 1: Hold down posts located as shown for 16 through 100 position headers.;类型Shrouded Header
连接器性别HDR系列AMPMODU System 50
钥匙类型否制造商全称AMP
产品子类型Header Assembly选择性装载No
加载位置数All

环境参数

密封等级不带温度范围-65 – +105
工作温度-65C to 105C封装热阻1.397 mm [ .055 in ]

文档与媒体

在线文档
6-104069-7?RQPN=6-104069-7

相关型号
