点击放大查看

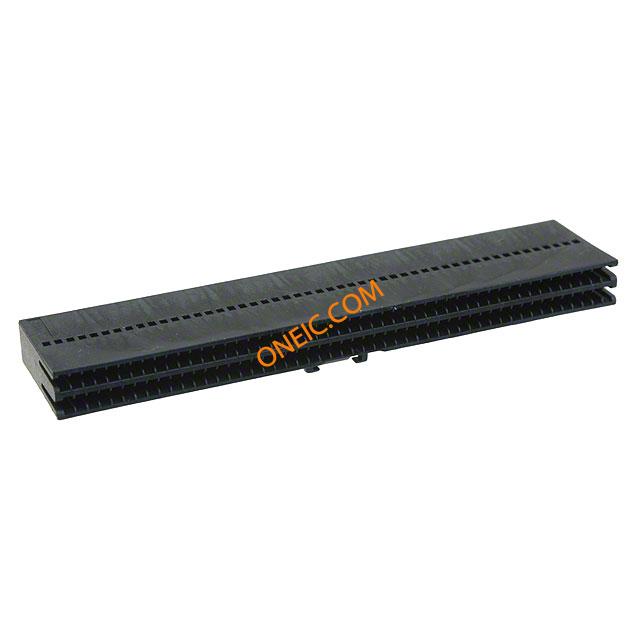

487937-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 100 POS 1.27mm Crimp ST Cable Mount .050 X .100 AMPMODU System 50 CONN RCPT 100POS.050 DUAL W/LTCH FFC & FPC Connectors 100 HOUSING FFC 50CL .050 X .100 AMPMODU System 50 Product Highlights:HousingNumber of Positions = 100Number of Rows = DualWith Mating Connector LockNormal Insertion ForceSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU 100 HOUSING FFC 50CL DR LATCH |
| 分类 |
商业参数
| 标准包装规格 | 150 | 产品类别 | FFC & FPC Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 600 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 100V | 供电电压 | 100 |
| 输入电阻 | 5000 | 钳位电压 | 300 |
| 连接器阻抗 | 锁闩, 锁闩 | 击穿电压 | 300 |
| 最大额定电流 | 1.5A | 绝缘电阻 | 5,000 |
机械参数
| 颜色 | Black | 间距 | 1.27 mm |
| 锁定类型 | 带有 | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 电缆类型 | Flexible Flat Conductor Cable |
| 第二连接器 | With | 边缘接触 | No |
| 安装类型 | Straight | 连接器类型 | Housing for Female Contacts |
| 安装样式 | Cable | 排数 | 2 |
| 连接器用途 | Receptacle | 插入力 | Normal |
| 锁定特性 | Latch | 壳体材料 | Thermoplastic |
| 包装数量 | 100 | 面板安装类型 | 不带 |
| 端接样式 | 插座 | FFC/FCB厚度 | 0.05-0.08mm |
| 触点数 | 100 | 位数 | 100 |
| 安装孔直径 | 带有 | 中心触点材料 | 1.27 [0.050] |
产品信息
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | AmpMODU | 产品特性 | Latch Lock |
| 产品子类型 | Housing | ||
环境参数
| 温度范围 | -55 â +105 | 工作温度 | -55°C ~ 105°C |
文档与媒体
相关型号

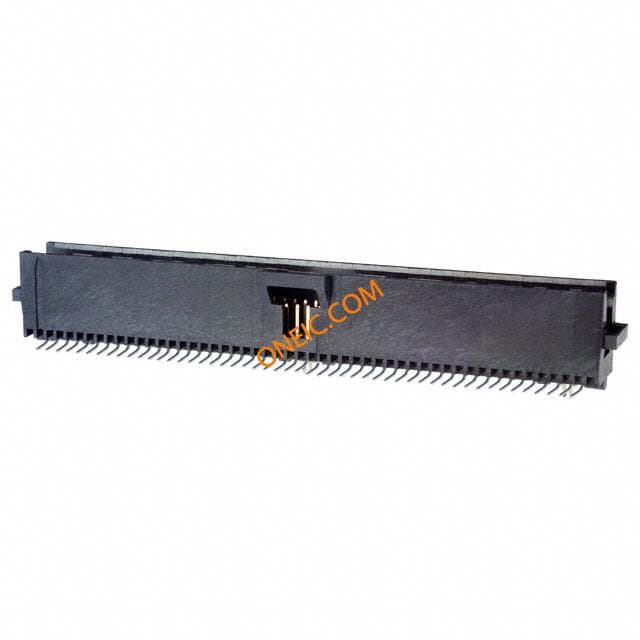

6-104549-0
te connectivity / amp
Conn Shrouded Header HDR 100 POS 1.27mm Solder ST SMD Tube .050 X .100 AMPMODU System 50 CONN HEADER 100PS .050" STR GOLD Header vertical 100way AmpModu system 50 Headers & Wire Housings 100 POS SMT HDR VERT DUAL ROW Conn Shrouded Header HDR 100 POS 1.27mm Solder ST SMD Tube Product Highlights:Header AssemblyNumber of Positions = 100Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU SHROUDED HEADER HEADERASSEMBLY,AMPMODU,SYSTEM50,100POSITION,DUALROW,SHROUDED,VERTICAL TE Connectivity AMPMODU System 50 系列 2.54mm节距 100路 (2排) 直 PCB 针座, 焊接端接 , 表面安装 100 SYS50 S/M HDR DRST SHRDSN

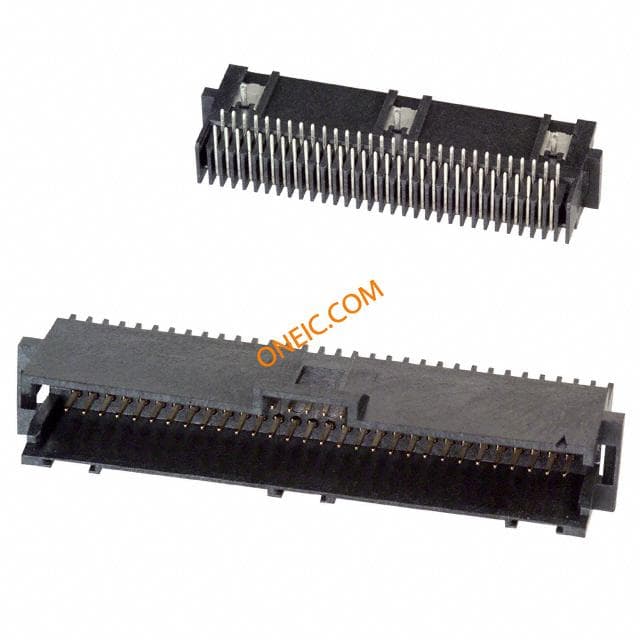

1-104069-7
te connectivity / amp
Conn Shrouded Header HDR 100 POS 1.27mm Solder RA Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER RTANG .050 100POS AU Headers & Wire Housings 100 SYS 50 DRRA SHRD 210 Conn Shrouded Header HDR 100 POS 1.27mm Solder RA Thru-Hole Tube Product Highlights:Header AssemblyNumber of Positions = 100Number of Rows = DualShroudedRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 100 SYSTEM 50 HDR DRRA SHRD
1-104549-0
te connectivity / amp
Conn Shrouded Header HDR 100 POS 1.27mm Solder ST SMD Tube Headers & Wire Housings SYS50 SMT HDR 100P SHROUDED .050 X .100 AMPMODU System 50 CONN HEADER VERT .050 100POS AU Conn Shrouded Header HDR 100 POS 1.27mm Solder ST SMD Tube Product Highlights:Header AssemblyNumber of Positions = 100Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 100 SYS50 SRFMNT HDR DRST SHRD
5-104477-7
te connectivity / amp
Conn Shrouded Header HDR 100 POS 1.27mm Solder RA Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER 100POS DL R/A GOLD Headers & Wire Housings 100 SYSTEM 50 HDR DRRA SHRD SN .050 X .100 AMPMODU System 50 Product Highlights:Connector Type = Header - Pin100 PositionsNumber of Rows = DualShroudedRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 100 SYSTEM 50 HDR DRRA SHRD SN
6-103916-7
te connectivity / amp
Conn Unshrouded Header HDR 100 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER .050 100POS VERT T/H Headers & Wire Housings 100 sys 50 hdr drst unshrd sn Conn Unshrouded Header HDR 100 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Housing Gender = Header - Pin100 PositionsNumber of Rows = DualNot ShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU TE Connectivity AMPMODU System 50 系列 1.27mm节距 100路 (2排) 垂直 PCB 针座, 焊接端接, 1A , 通孔 100 sys 50 hdr drst unshrd sn

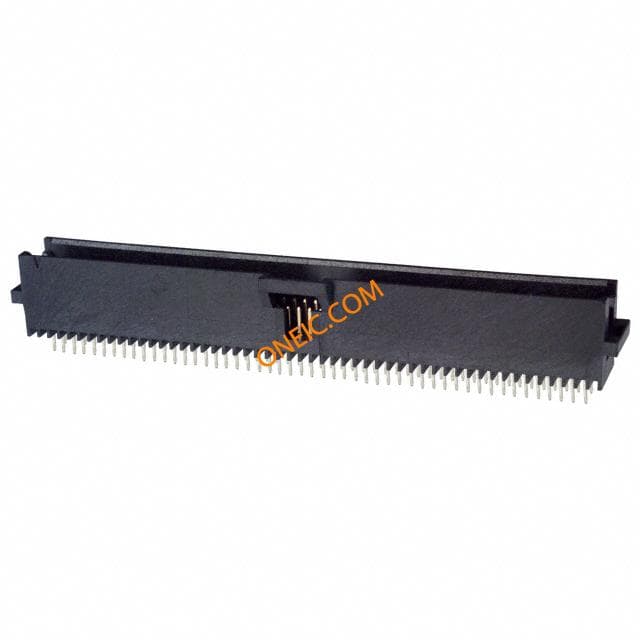

6-104068-7
